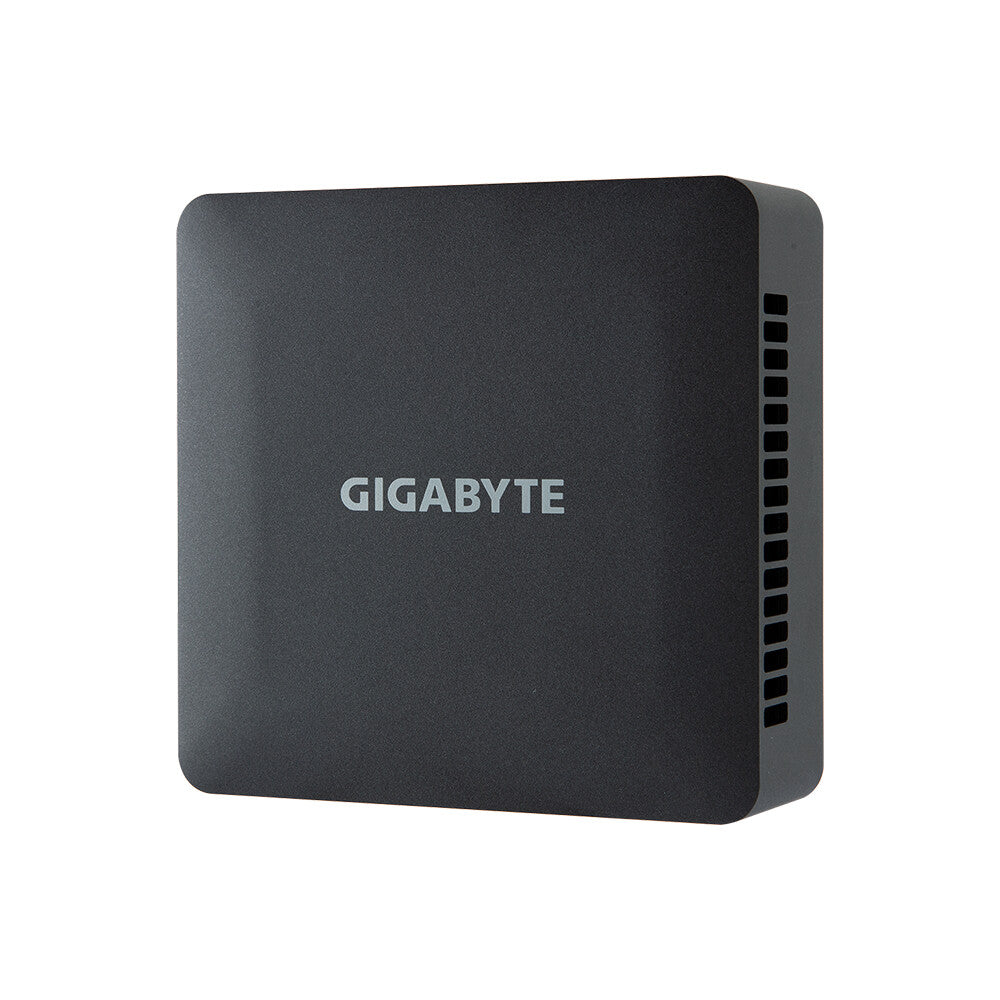

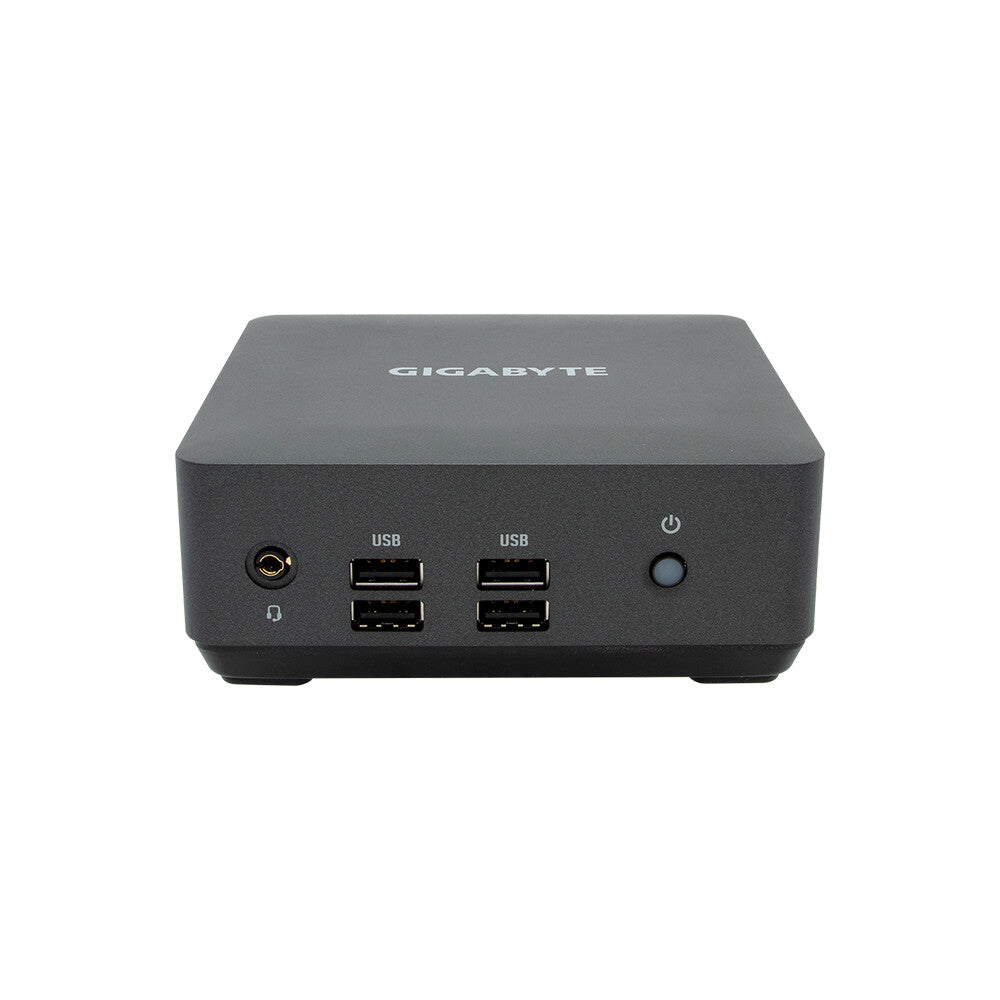

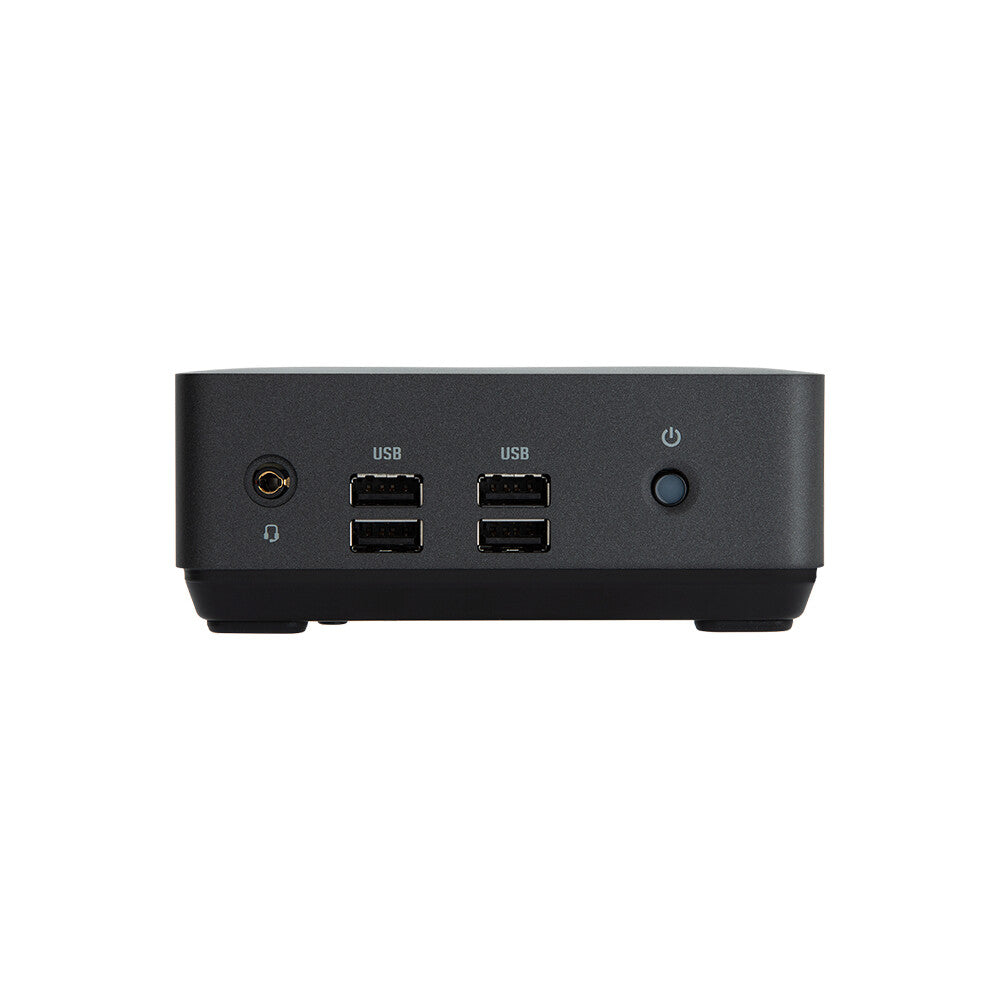

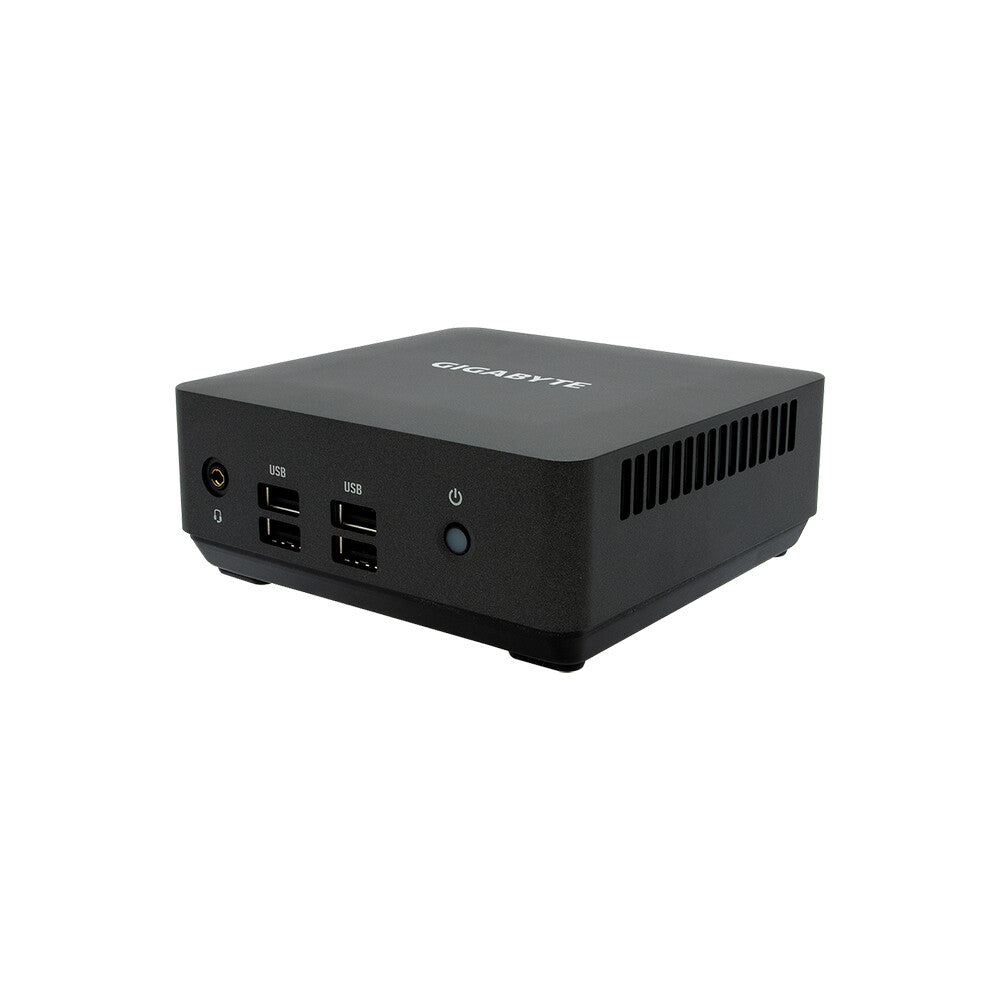

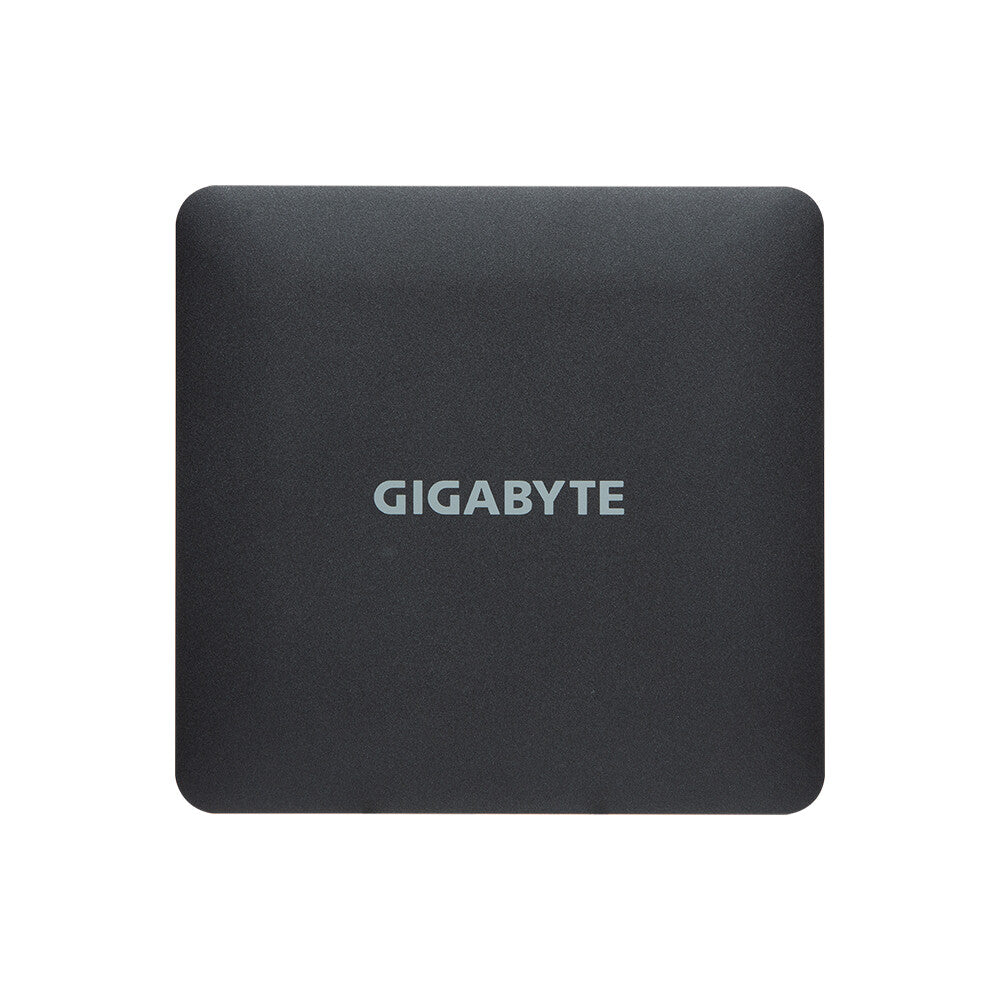

Gigabyte BRIX Black i5-1335U
KEY FEATURES
- Elegant design with enhanced computing power
- 13th Gen Intel® Core™ i5-1335U Processor
- Intel® Iris® Xe Graphics , 96EU, 1.25GHz
- Super Fast 2.5G LAN + Wi-Fi 6 Module
- 4 x 4K Module - 2 x HDMI 2.1 and 2 x USB Type C with DP alt mode
- 2 x USB 3.2 Gen2 , 2 x USB 2.0 Ports
- Low Noise
- VESA Support
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Gigabyte BRIX Black i5-1335U
Description
Upgrade to the future
Minimalism meets power
The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.
By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.
With the latest 13th Gen Intel® Core™ Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections.
Computing with ultra efficient multi-tasking
Up to 10 cores (2 P-cores, 8 E-cores) and enhanced Intel Thread Director.
Intel Iris Xᵉ Graphics
Render in the background while editing video; enjoy responsive HD gaming while streaming music; or game, stream and record at once.
Amazing End-to-End Connectivity with Wi-Fi 6
Nearly a threefold improvement in throughput speed allows for fast uploads and downloads at low latency. Intel® Wi-Fi 6 (Gig+) gives you the freedom to work and learn from anywhere—and relax with smooth, high-quality streaming.
Delivering Superior Performance Where You Need It Most
You can save time and enhance the quality of your computing experience by utilizing built-in intelligence. Enjoy features like low noise operation while collaborating and automated text, image, and audio improvements while creating. In addition, enjoy system optimization for bandwidth and video resolution while gaming on the go.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 15 W |
| Processor cache | 12 MB |
| Processor boost frequency | 4.6 GHz |
| Efficient cores | 8 |
| Performance cores | 2 |
| Processor threads | 12 |
| Processor cores | 10 |
| Processor model | i5-1335U |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |

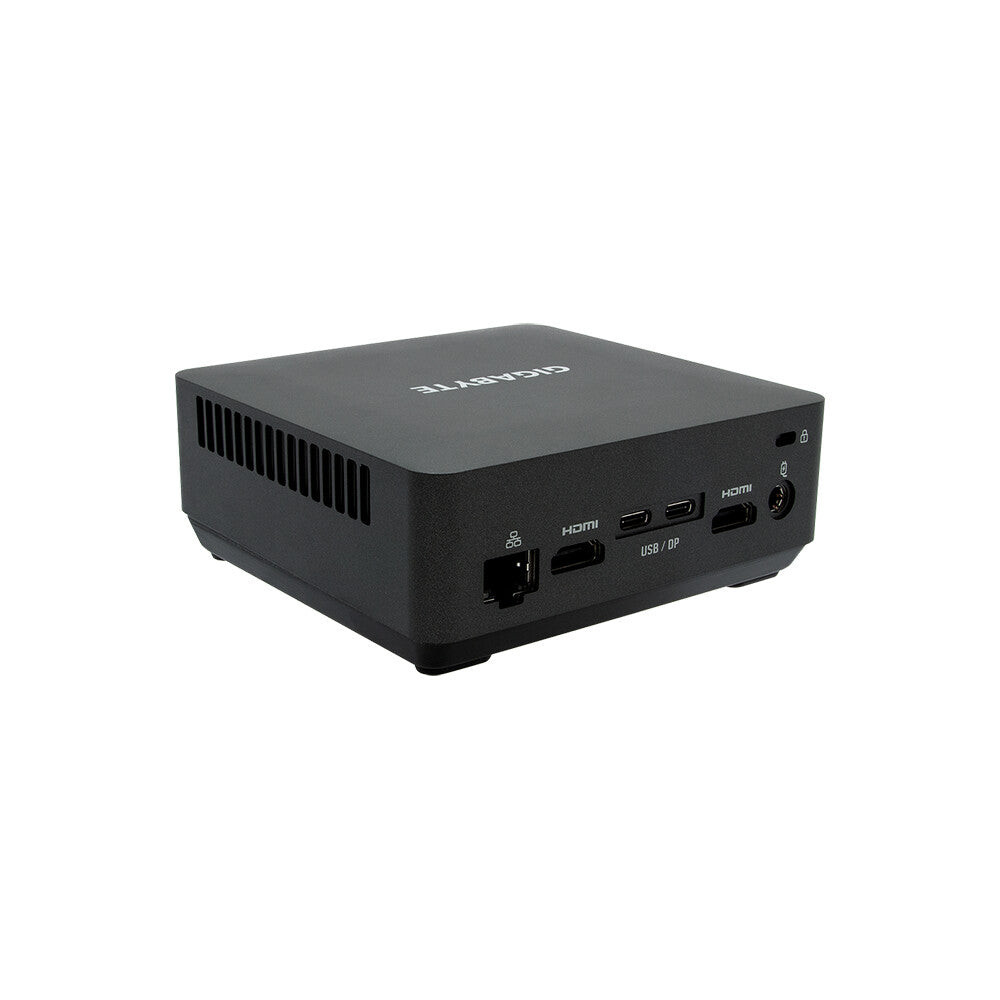

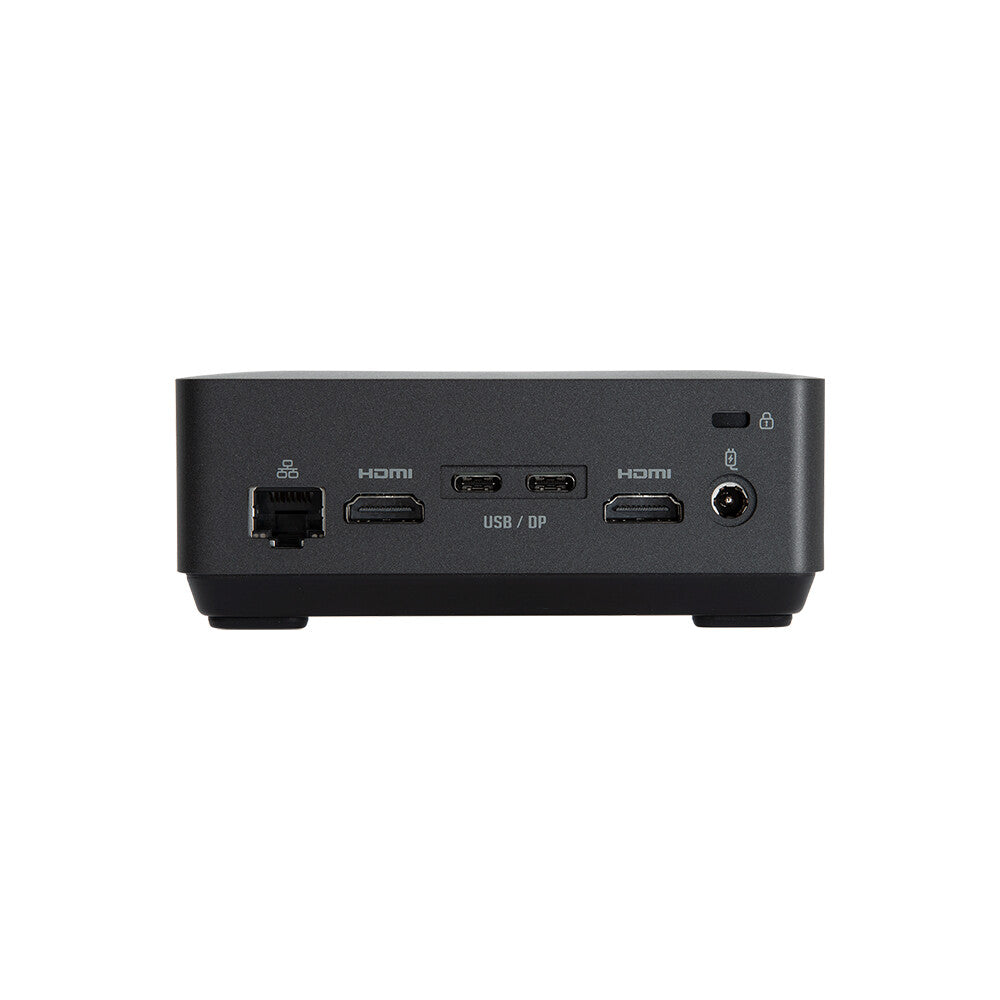

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Power | |
|---|---|
| AC adapter output voltage | 19.5 V |
| AC input voltage | 100 - 240 V |
| AC adapter output current | 6.92 A |
| Power supply | 135 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 49.7 mm |
| Depth | 120 mm |
| Width | 124 mm |
