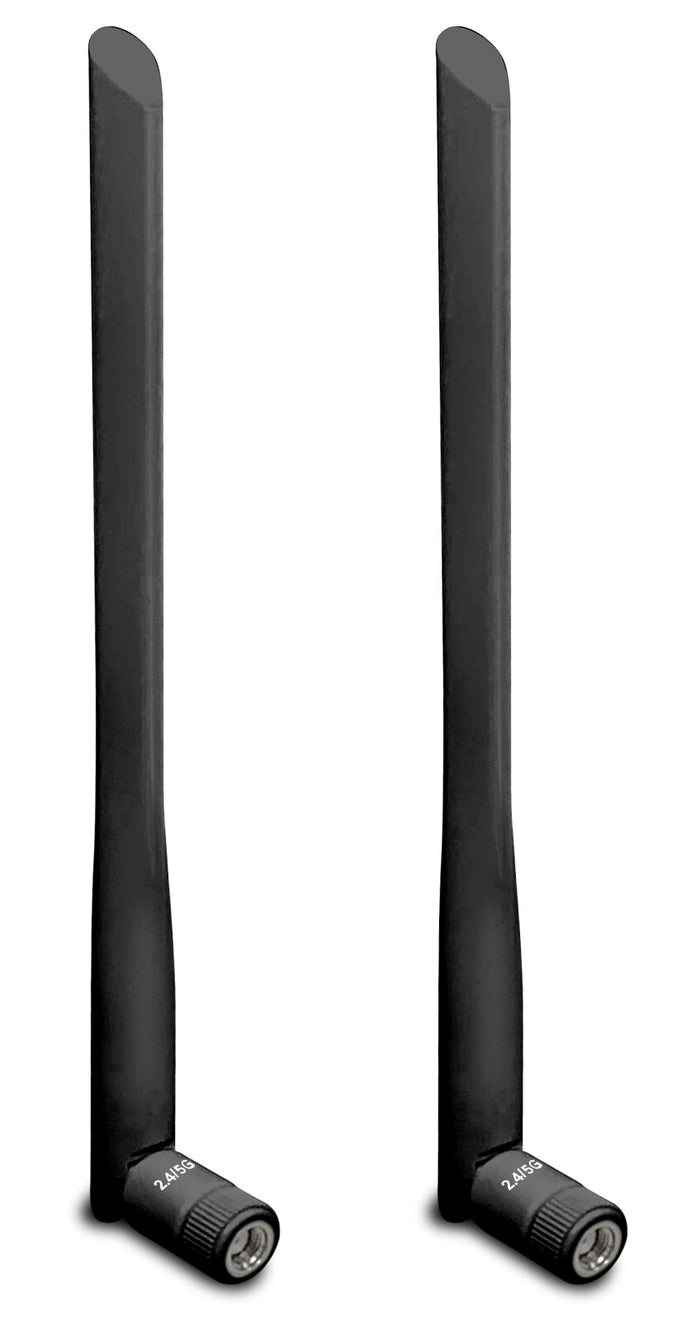

Draytek ANT-1205 Omni-directional antenna 5 dBi 5GHz RP-SMA Black
KEY FEATURES
- High-Gain Dual-Band Aerials
- Set of 2 Antennas
- Available in white or black
- Can improve range and coverage of wireless signal
- Suitable for all DrayTek routers & access Points
- Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
- Frequency Range : 2400-2500Mhz & 5150-5850Mhz
- 4.5dBi Gain at 5.8Ghz
- 5dBi Gain at 2.4Ghz
- Connector: RP-SMA
- Suitable for indoor use only
- Optional magnetic/extension base (ANT-BAS1)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Draytek ANT-1205 Omni-directional antenna 5 dBi 5GHz RP-SMA Black
Description
Draytek ANT-1205. Antenna gain level (max): 5 dBi, Frequency band: 2.4 - 5 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Polarization: Linear polarization. Height: 198 mm, Diameter: 1.3 cm. Quantity per pack: 2 pc(s)
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Performance | |
|---|---|
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 30° |
| Horizontal beam width | 360° |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 4.5 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 - 5 GHz |
| Antenna gain level (max) | 5 dBi |
| Features | |
|---|---|
| Product colour | Black |
| Power handling | 1 W |
| Polarization | Linear polarization |
| Antenna connector type | RP-SMA |
| Antenna type | Omni-directional antenna |
| Weight & dimensions | |
|---|---|
| Diameter | 1.3 cm |
| Height | 198 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 2 pc(s) |
