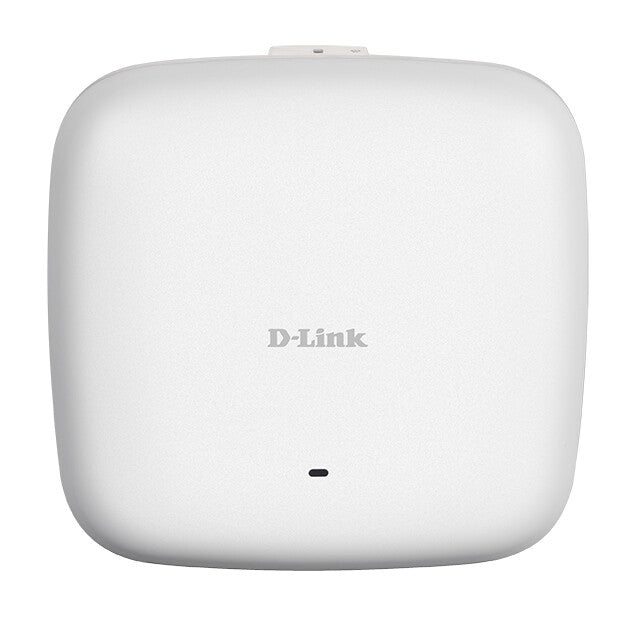

D-Link DAP-2680 wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
KEY FEATURES
- High-Performance Connectivity
- IEEE 802.11ac Wave 2 wireless
- Up to 1750 Mbps1 speed
- MU-MIMO with beamforming
- Band steering
- Gigabit PoE-capable LAN port
- Multiple Operation Modes
- Access Point, Wireless Distribution System
- (WDS), WDS with AP, Wireless Client
- Extensive Management
- D-Link Nuclias Connect support for centralised
- and additional configuration options
- Web, SSL, SSH and Telnet management
- SNMP v1, v2c, v3
- Trusted Security Features
- WPA/WPA2 Personal/Enterprise
- 64/128-bit WEP
- MAC filter and WLAN partitioning
- Local/POP3/RADIUS/PassCode/LDAP
- authentication for captive portal
- Convenient Installation
- Small form factor design for easy placement
- Supports 802.3at Power over Ethernet for
- remote installation
- Wall and ceiling mountable
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
D-Link DAP-2680 wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Description
D-Link DAP-2680. Maximum data transfer rate: 1750 Mbit/s, Frequency band: 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at,.... Security algorithms: 64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2,.... Output voltage: 12 V, Output current: 2 A. Placement: Table, Wall, Product colour: White, LED indicators: Power, Status. Antenna gain level (max): 4.2 dBi
The DAP‑2680 Wireless AC1750 Wave 2 Dual‑Band PoE Access Point features cutting‑edge Wave 2 technology that brings greater speeds, efficiency, and security to your wireless customers. Perfect for small to medium business or enterprise environments. Be the best with Wave 2 Boost your business network to maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band. Beamforming with MU‑MIMO Beamforming focuses the Wi-Fi signal to improve both range and connection strength so your clients can enjoy a superior Wi-Fi experience. Built-in Multiple-Input and Multiple-Output (MU-MIMO) technology gets high-bandwidth Wi-Fi signals to multiple devices simultaneously, for faster data distribution and efficiency. The Perfect Fit for Your Network Multiple operational modes allow you to select the DAP-2680 to operate as an access point, a Wireless Distribution System (WDS), a WDS with access point, or a wireless client. Business Quality of Service The Wi-Fi Multimedia (WMM) and Quality of Service (QoS) features make it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritise network traffic. Customised priority rules can be adjusted through the web GUI. AP Load Balancing limits the maximum number of users per access point to ensure maximum performance. Easy‑mount setup It can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available. Corporate‑Class Security Secure your business network with Personal and Enterprise versions WPA2 (802.11i), with support for RADIUS server backend or a built‑in internal RADIUS server. MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling further protect your wireless network. It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, it supports Network Access Protection (NAP), a feature of Windows Server® 2008 and upwards, allowing network administrators to define multiple levels of network access based on an individual client’s needs. D‑Link WiFiManager Control from a central location up to a thousand access points anywhere in the world, with easy-to-use management controls. Reveal compelling insights into your business network, push out configurations and organise your network so it always runs at optimal performance. Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.
Warranty: Limited Lifetime
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| Transmitting power | 26.5 dBmW |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Frequency band | 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz |
| Maximum data transfer rate | 1750 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Output current | 2 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Internal | No |
| Certification | FCC, UL, CE, FCC, UL |
| LED indicators | Power, Status |
| Product colour | White |
| Placement | Table, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4.2 dBi |
| Antennas quantity | 3 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Shipping (inner) case length | 59.9 cm |
| Shipping (inner) case width | 29.3 cm |
| Shipping (inner) case height | 24 cm |
| Shipping (inner) case net weight | 3.44 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 311.4 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 240 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.06 m |
| Pallet gross weight (sea) | 311.4 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 240 pc(s) |
| Pallet height (sea) | 2.06 m |
| Shipping (inner) case gross weight | 6.05 kg |
| Weight & dimensions | |
|---|---|
| Weight | 580 g |
| Height | 44.8 mm |
| Depth | 190 mm |
| Width | 190 mm |
| Packaging data | |
|---|---|
| Package weight | 1.08 kg |
| Package height | 112 mm |
| Package depth | 270 mm |
| Package width | 205 mm |
