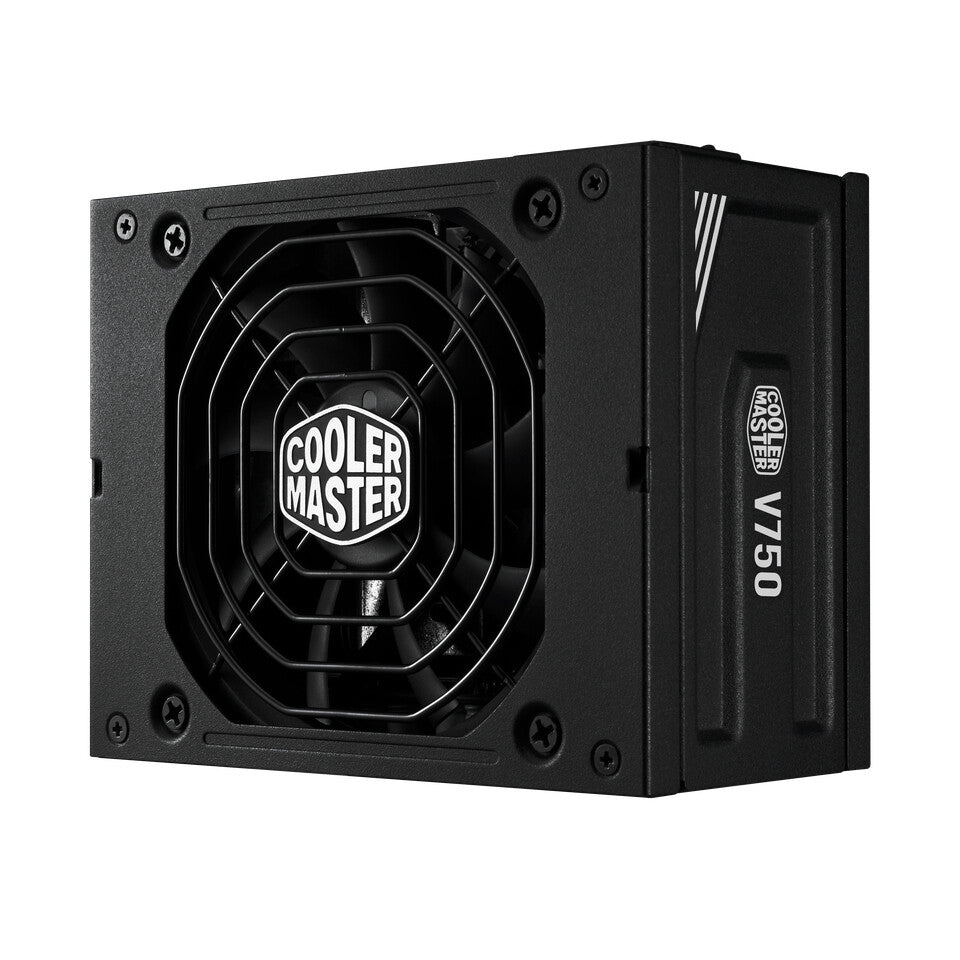

Cooler Master V SFX ATX 3.1 750W SFX Fully-Modular Power Supply Unit | 80 PLUS Gold
KEY FEATURES
- Flexible compatibility
- ATX 3.1 support & a 90-degree 12V-2x6 cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Cooler Master V SFX ATX 3.1 750W SFX Fully-Modular Power Supply Unit | 80 PLUS Gold
Description
Cooler Master V SFX Gold 750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 100,215,330,445 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Certification: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Flexible compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.1 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
ATX 3.1 support & a durable 90-degree 12V-2x6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency and reduced ripple noise.

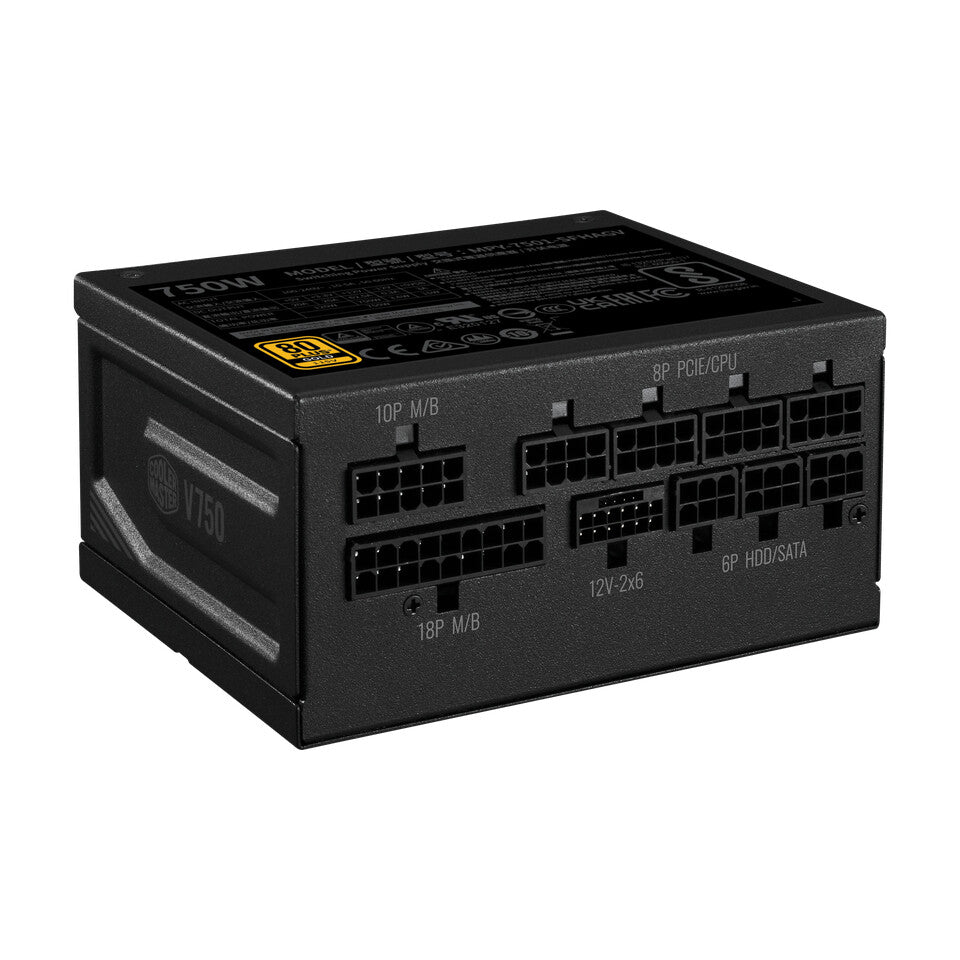

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
10-year Warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Power Good signal delay range | 100 - 500 ms |
| Efficiency | 90% |
| Hold time | 16 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 10 - 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| Number of EPS connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 100,215,330,445 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 100,215,330,445 mm |
| Number of SATA power connectors | 8 |
| Motherboard power cable length | 30 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Certification | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB,UKCA |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| ATX version | 3.42 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 9.2 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.42 kg |
| Height | 63.5 mm |
| Depth | 100 mm |
| Width | 125 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.86 kg |
| Package height | 100 mm |
| Package depth | 190 mm |
| Package width | 260 mm |
| Cable storage bag included | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ErP |
| Other features | |
|---|---|
| Manual | Yes |
