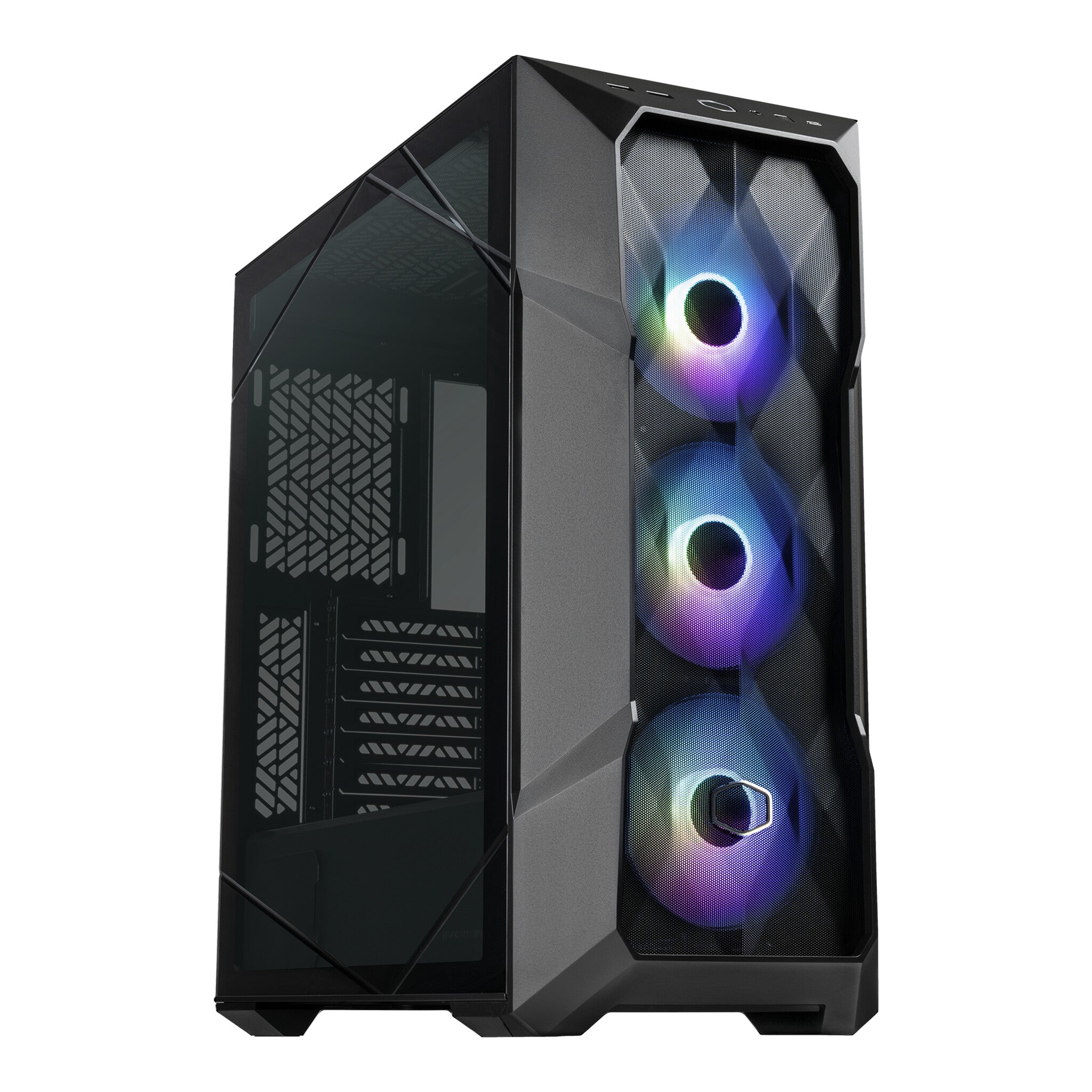

Cooler Master MasterBox TD500 Mesh V2 Midi Tower Black
KEY FEATURES
- Polygonal FineMesh Front Panel
- Three CF120 ARGB Fans Included
- USB 3.2 Gen 2 Type C Support
- Tool-Free Crystalline TG Side Panel
- PSU Shroud With Removable Cover
- ARGB Controller Included
- Removable Top Panel
- Removable HDD cage
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions

Cooler Master MasterBox TD500 Mesh V2 Midi Tower Black
Description
Cooler Master MasterBox TD500 Mesh V2. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 499 mm, Height: 500 mm

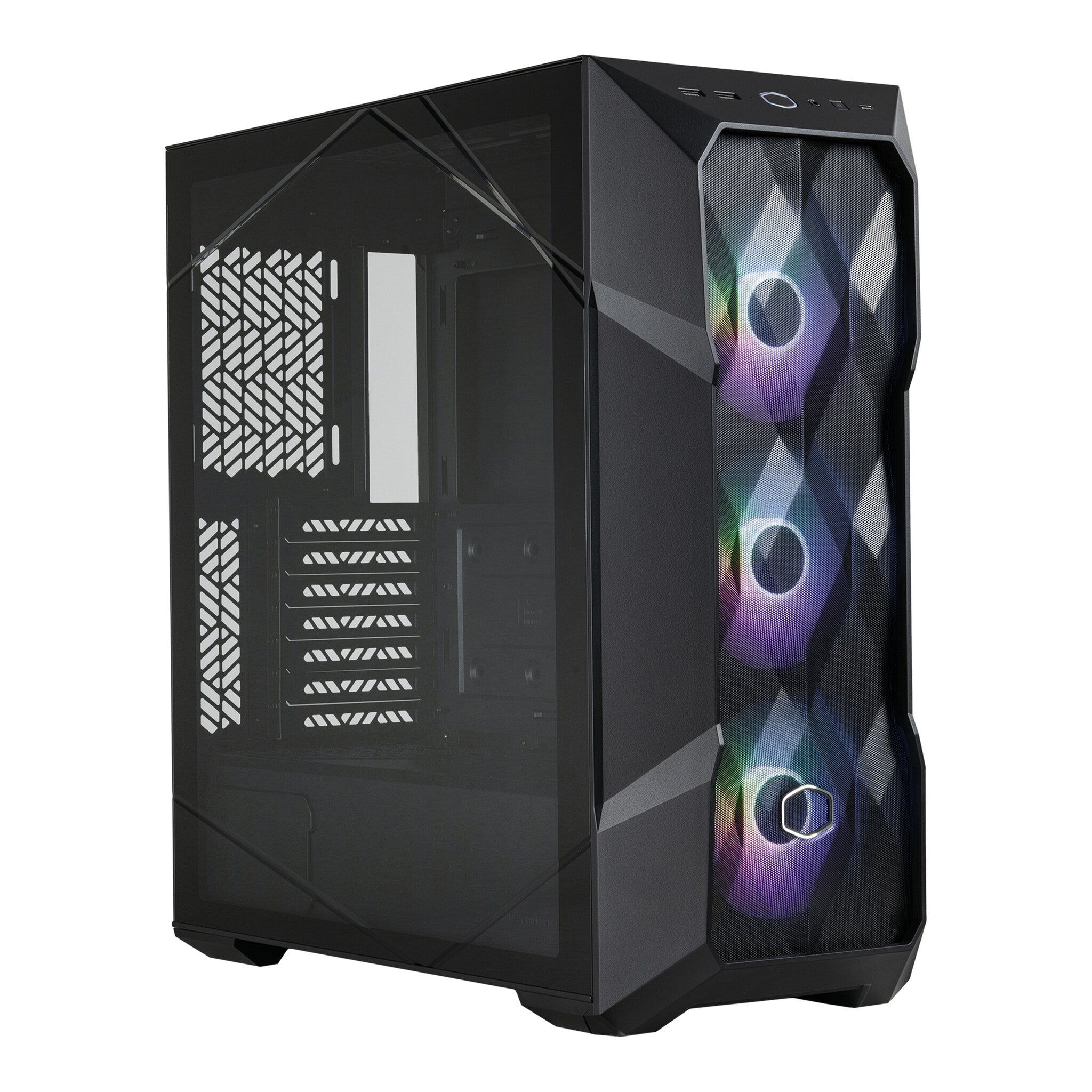

Exquisitely Ruthless
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

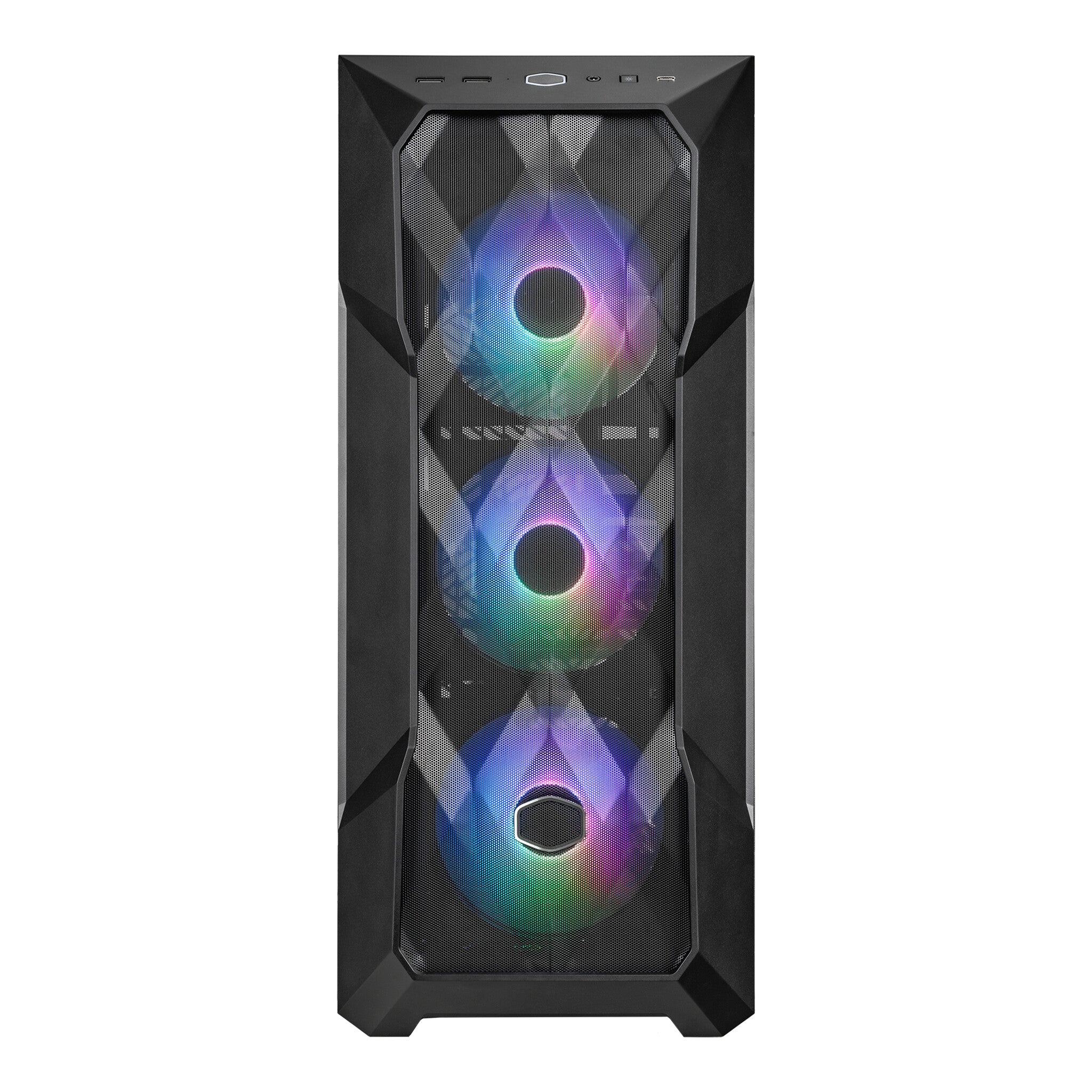

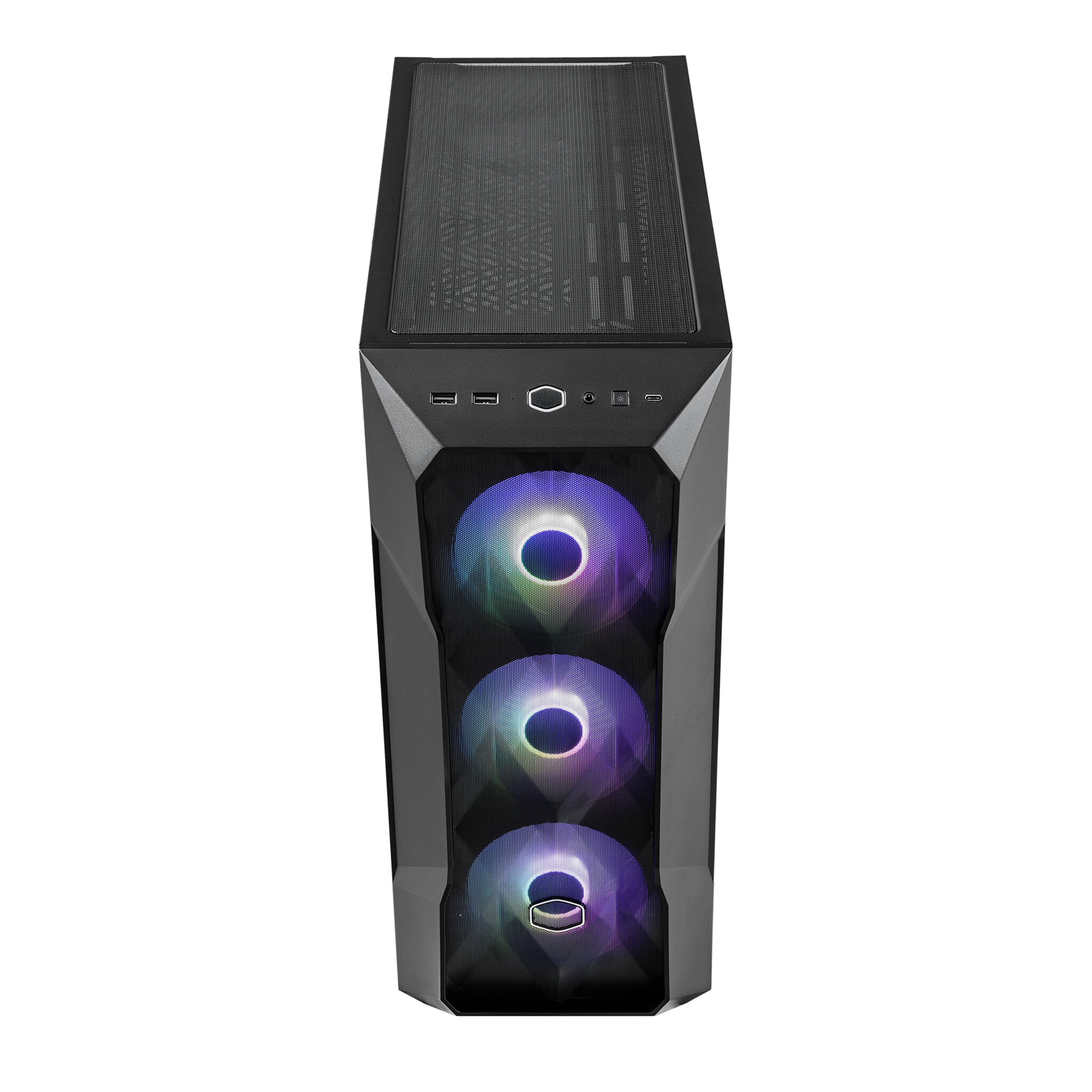

FineMesh Performance Front Panel
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Available in both Black & White colorations
MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!

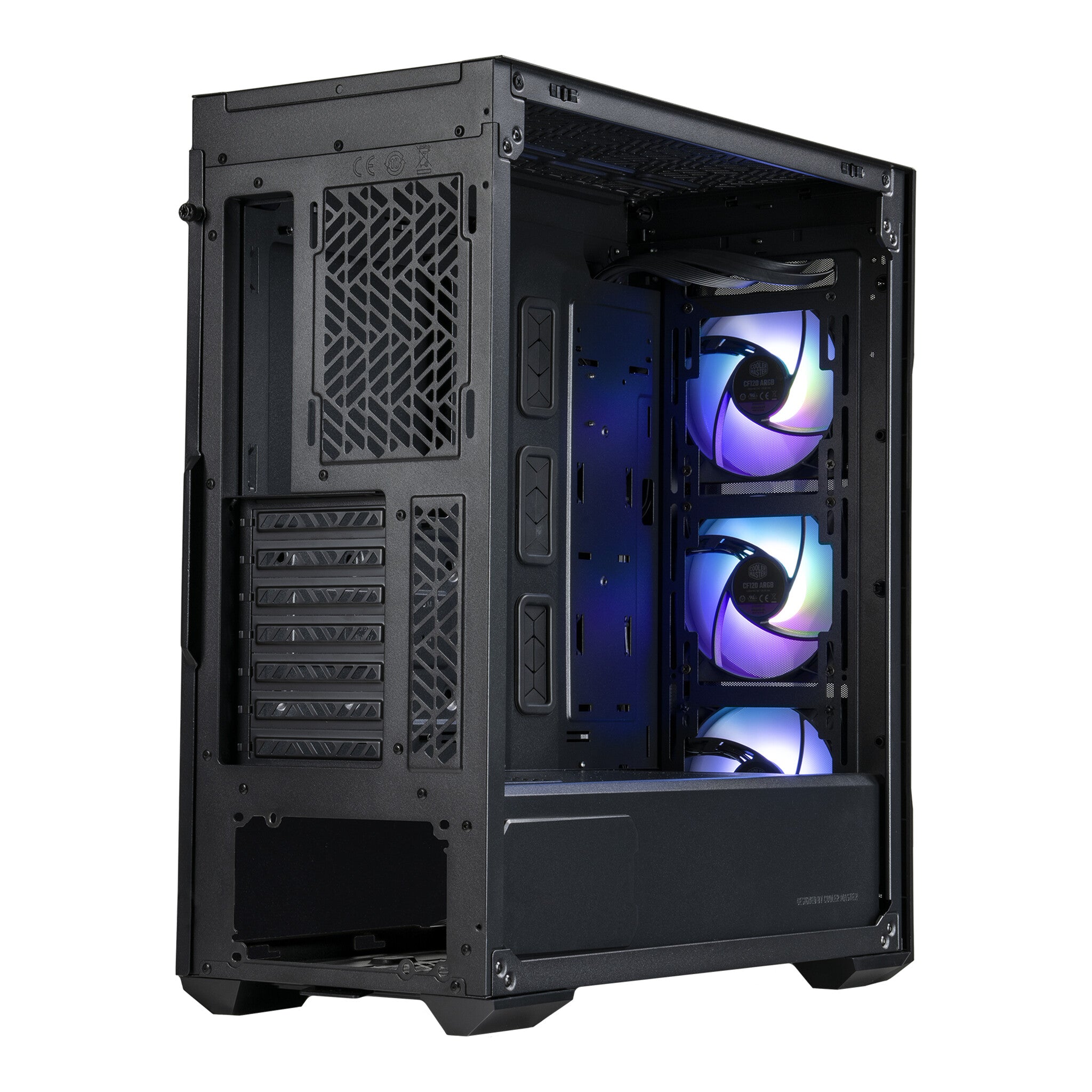

Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

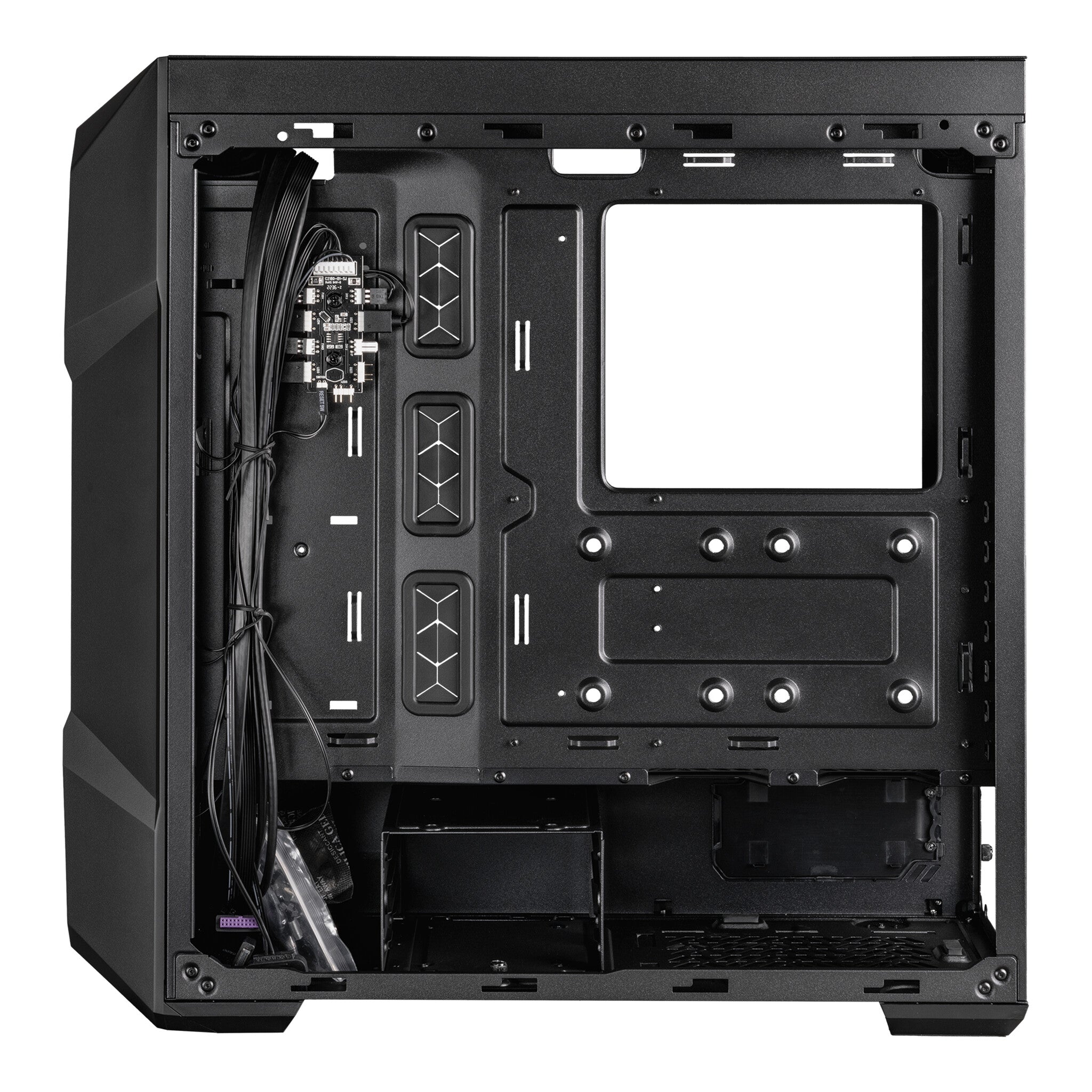

ARGB/FAN HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

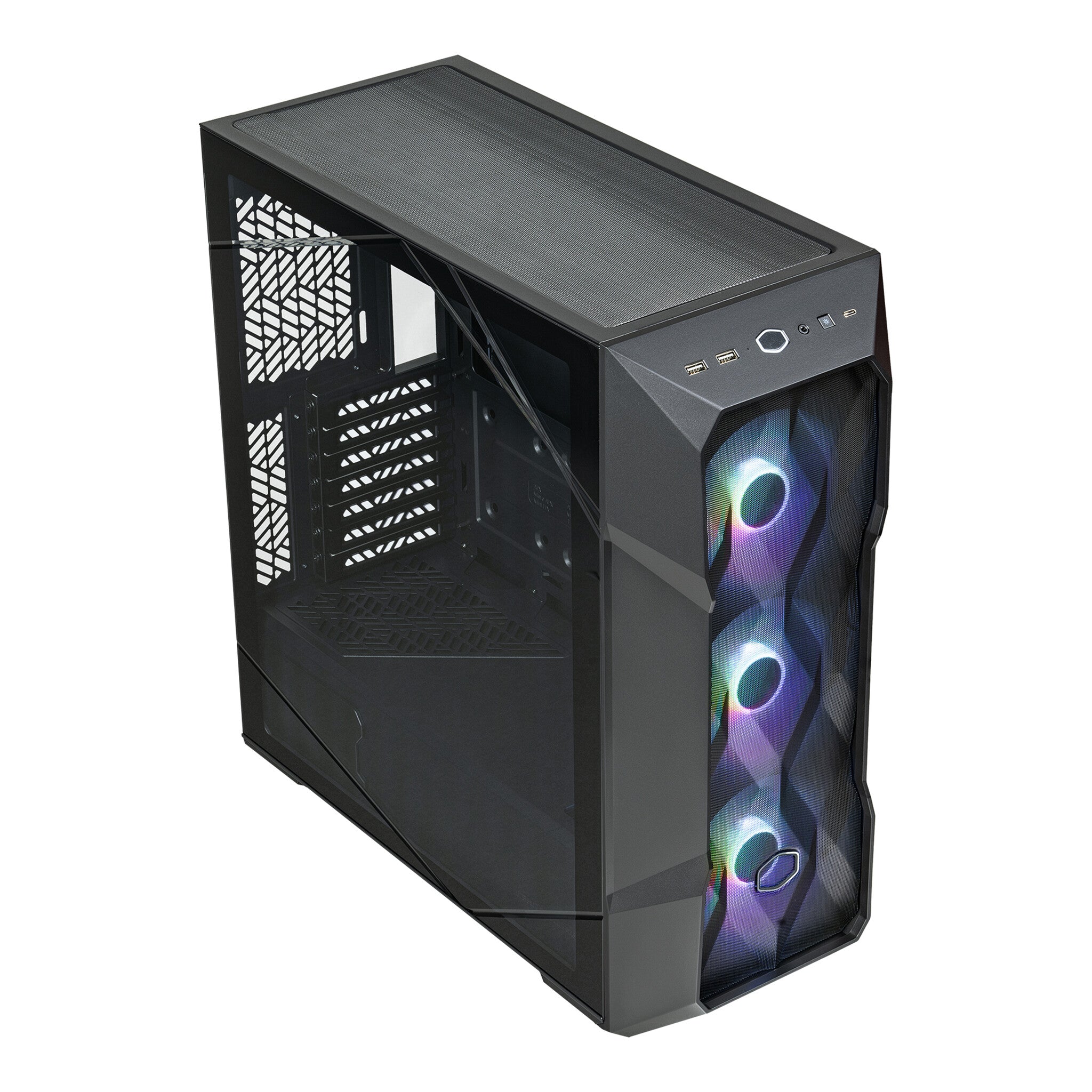

Removable Top Panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

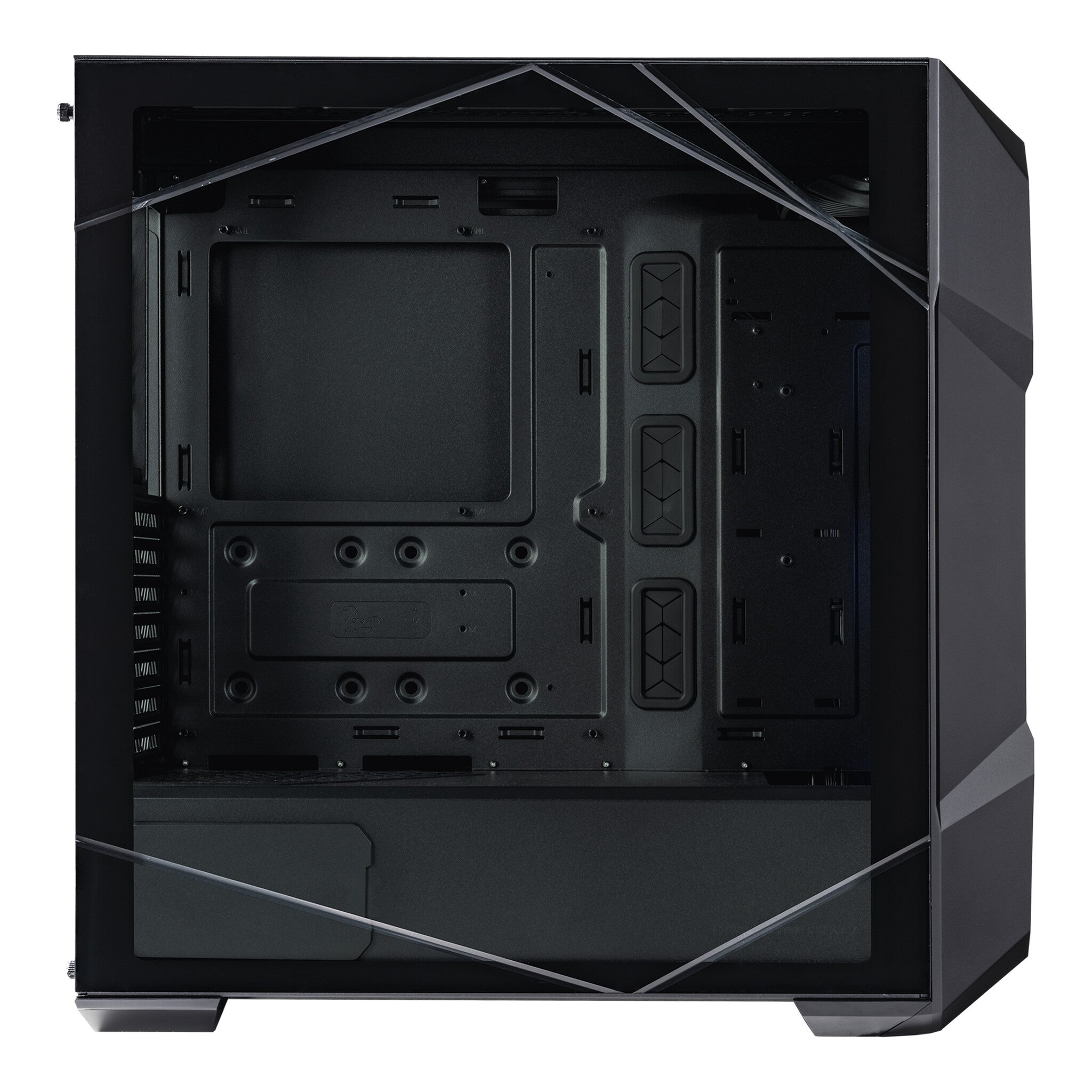

Tool-Free Crystalline TG Side Panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
PSU Shroud With Removable Cover
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

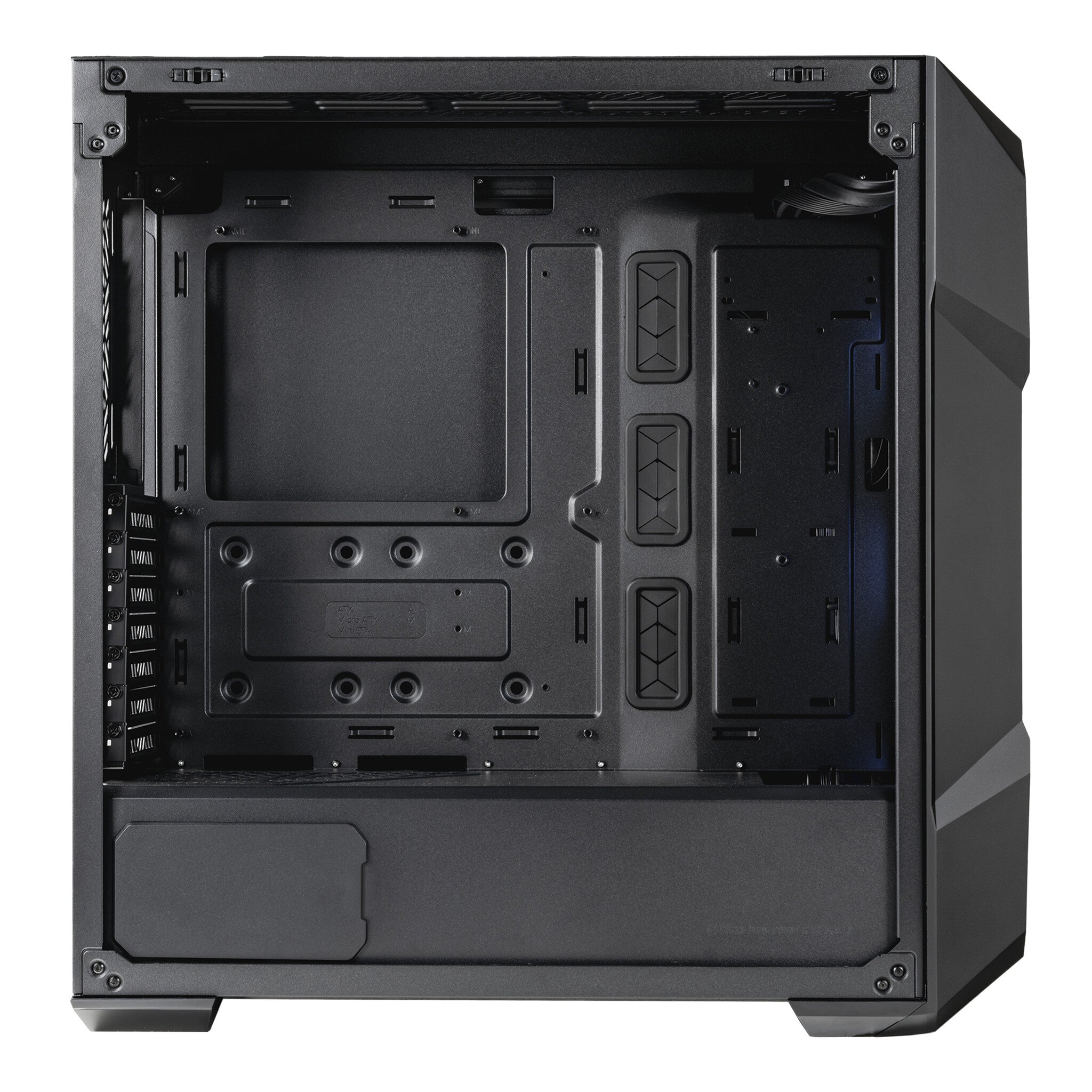

Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
Warranty: 2 years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.5 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
Product colour | Black |
Material | Mesh, Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator fan sizes supported | 120,140,240,280,360 mm |
Rear radiator fan sizes supported | 120 mm |
Front radiator fan sizes supported | 120,140,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
General Information | |
---|---|
Product Family | MasterBox |
Weight & dimensions | |
---|---|
Weight | 7.7 kg |
Height | 500 mm |
Depth | 499 mm |
Width | 210 mm |
Packaging data | |
---|---|
Package weight | 9.2 kg |
Package height | 584 mm |
Package depth | 558 mm |
Package width | 290 mm |
Other features | |
---|---|
Volume | 50 L |
