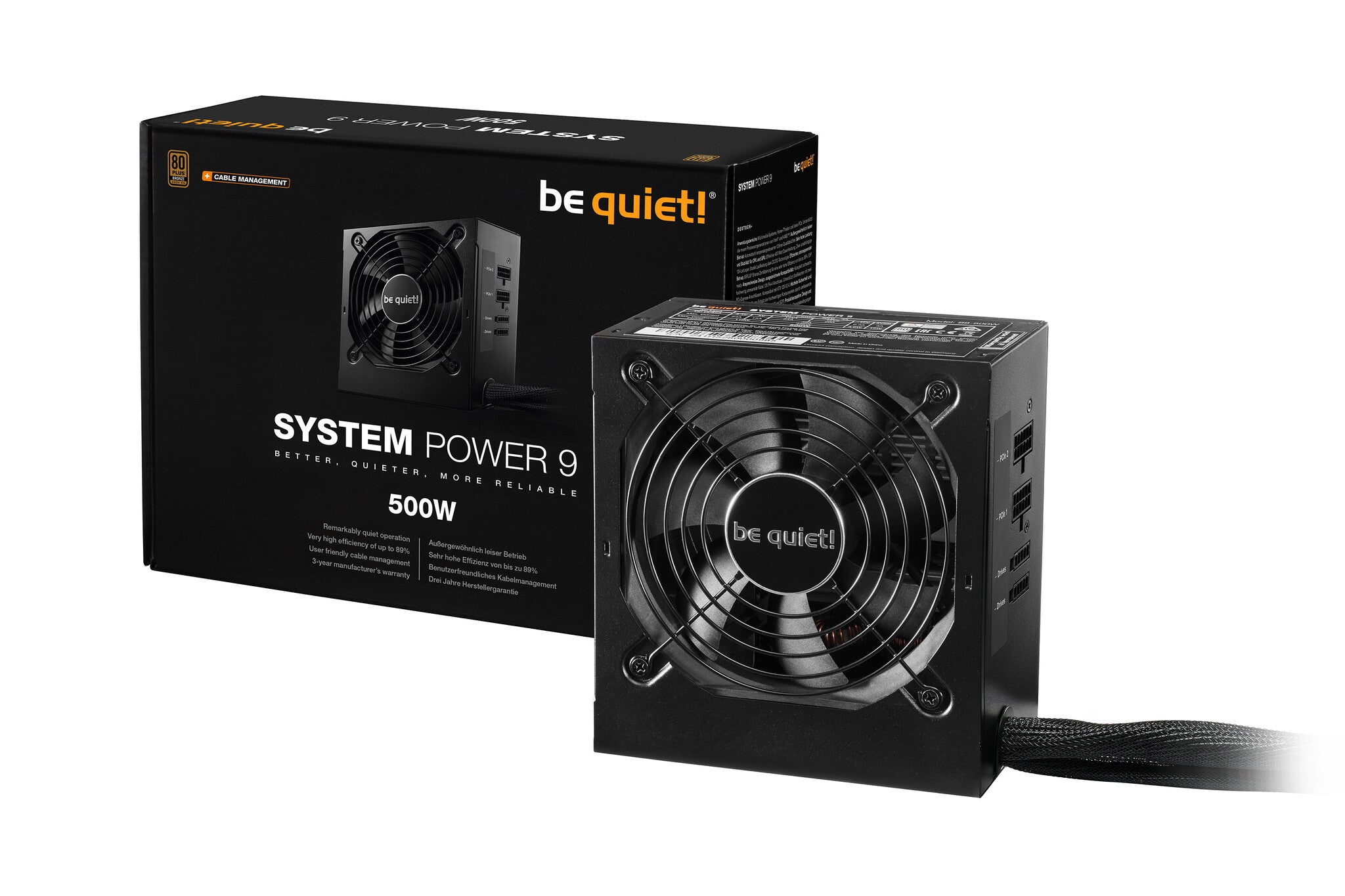

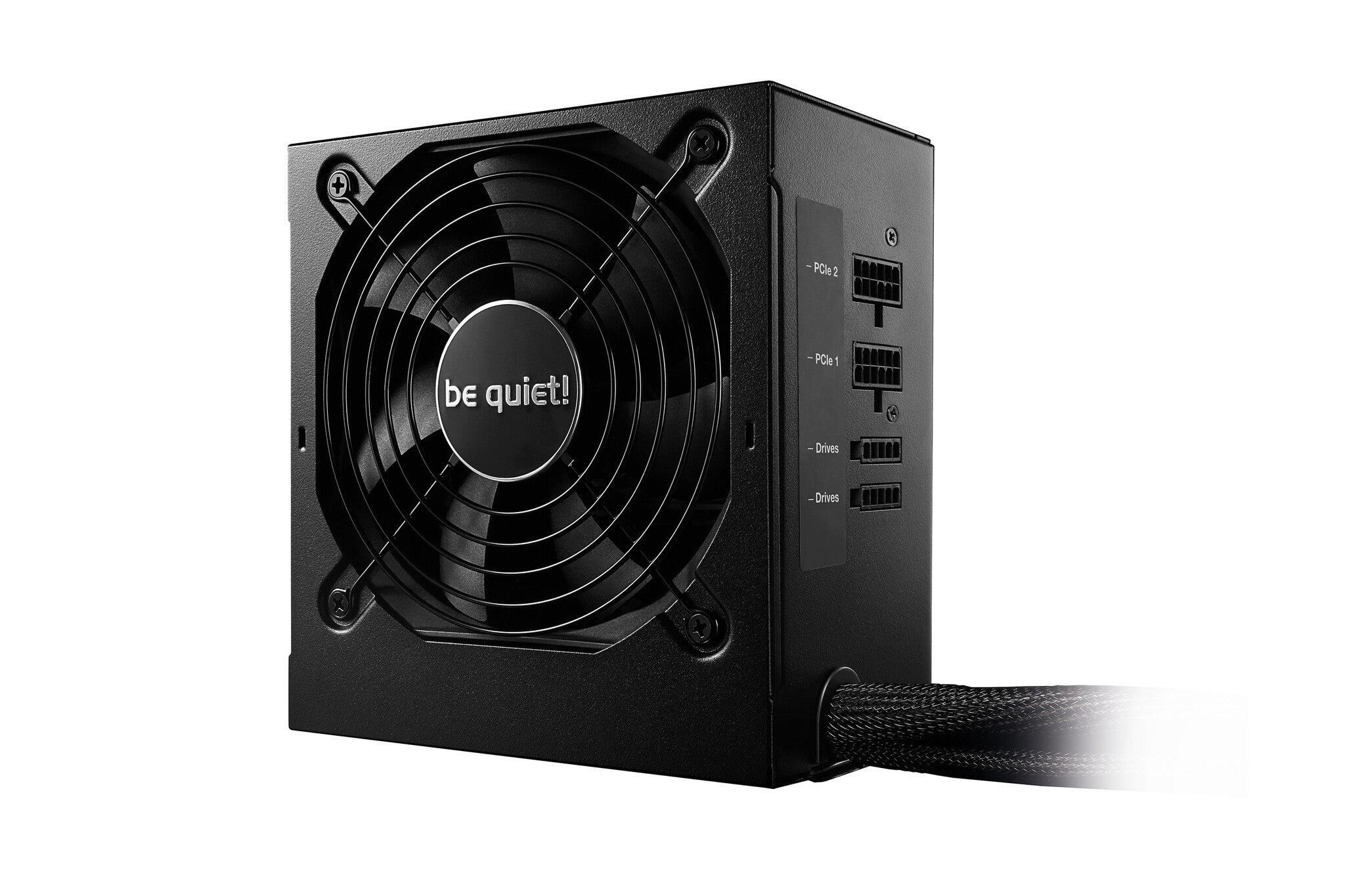

be quiet! System Power 9 | 500W CM
KEY FEATURES
- Rock-solid stability with two strong 12V-rails
- Equipped with DC-to-DC technology for tight voltage regulation
- Two PCIe connectors for multi-GPU system configurations
- Temperature-controlled 120mm fan reduces system noise
- Low stand-by drain of less than 0.15 watts
- 80 PLUS® Bronze efficiency of up to 89%

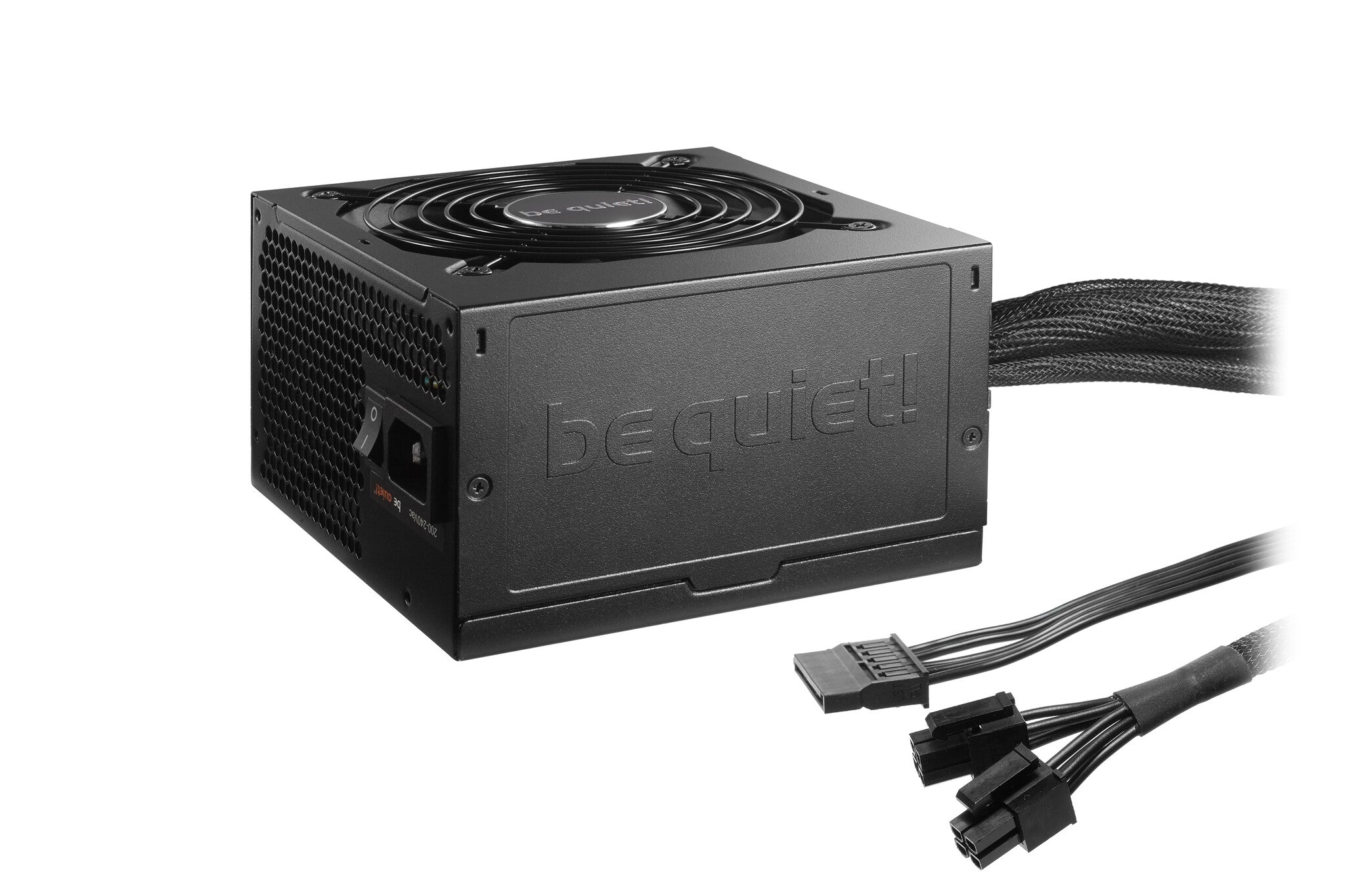

- Semi-modular, high-quality sleeved and flat cables
- All-in-one cable with S-ATA, HDD and FDD connectors
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- Supports latest Intel® and AMD™ processors
- Product conception, design and quality control in Germany
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
be quiet! System Power 9 | 500W CM
Description
be quiet! System Power 9 | 500W CM. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,670 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PCIe, SATA
Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 500W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Warranty: 3-year manufacturer’s warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 89% |
| Hold time | 17 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 15 A |
| Max output current (+12V2) | 20 A |
| Max output current (+12V1) | 24 A |
| Max output current (+3.3V) | 24 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+3.3V) | 110 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.95 |
| Input current | 4 A |
| AC input frequency | 50 Hz |
| AC input voltage | 200 - 240 V |
| Total power | 500 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Semi-Modular |
| Floppy drive power connector | 1 |

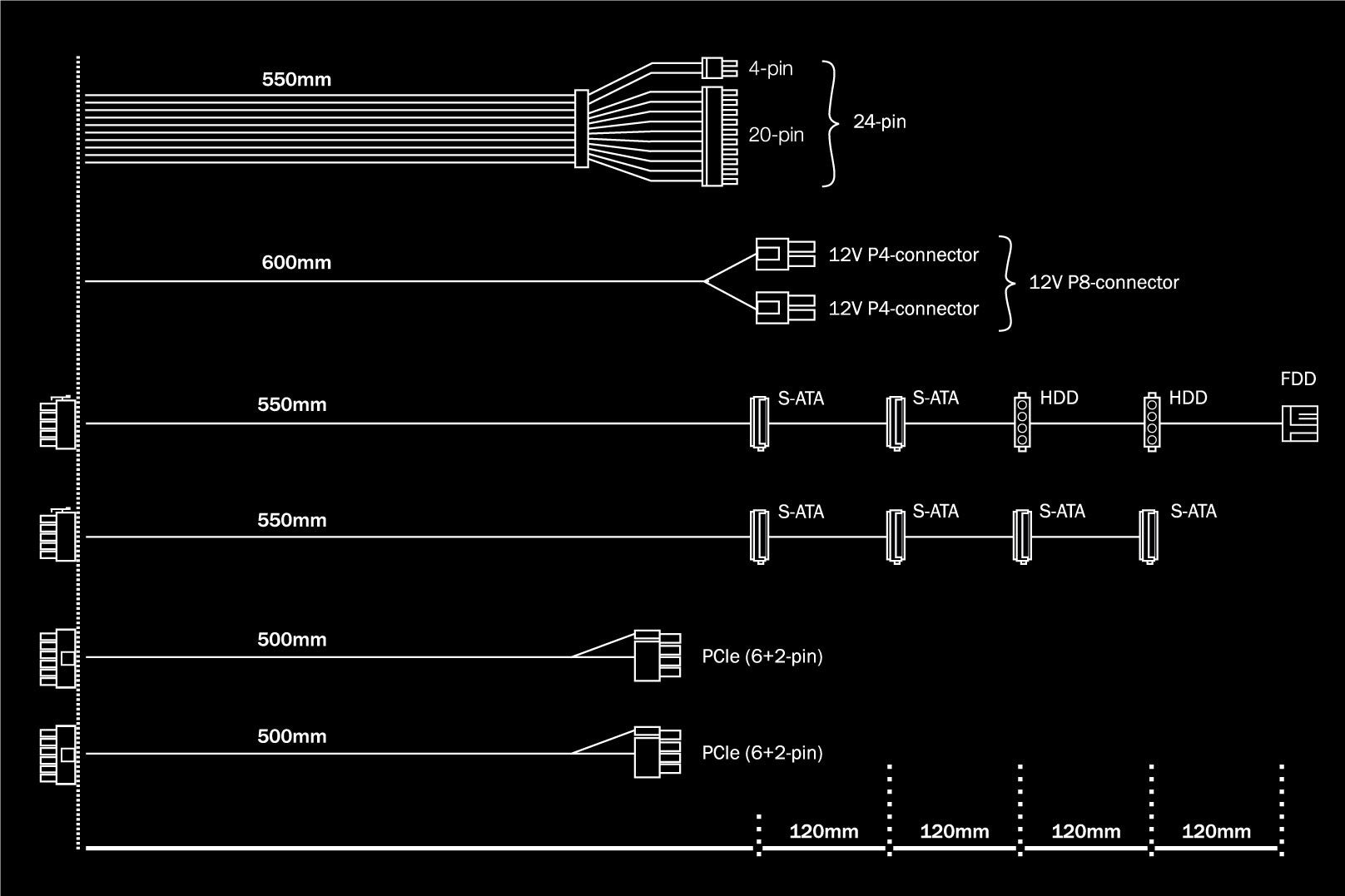

| CPU power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| SATA power cable length | 550,670 mm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Compatible products | Intel C6/C7 |
| Certification | CE, CB, TÜV, RCM, CU |
| Bearing technology | Sleeve |
| ATX version | 2.51 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Packaging content | |
|---|---|
| Cables included | PCIe, SATA |
| Weight & dimensions | |
|---|---|
| Weight | 1.56 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.22 kg |
| Package height | 195 mm |
| Package depth | 268 mm |
| Package width | 97 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case gross weight | 14 kg |
| Master (outer) case height | 556 mm |
| Master (outer) case length | 215 mm |
| Master (outer) case width | 311 mm |
| Other features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Manual | Yes |

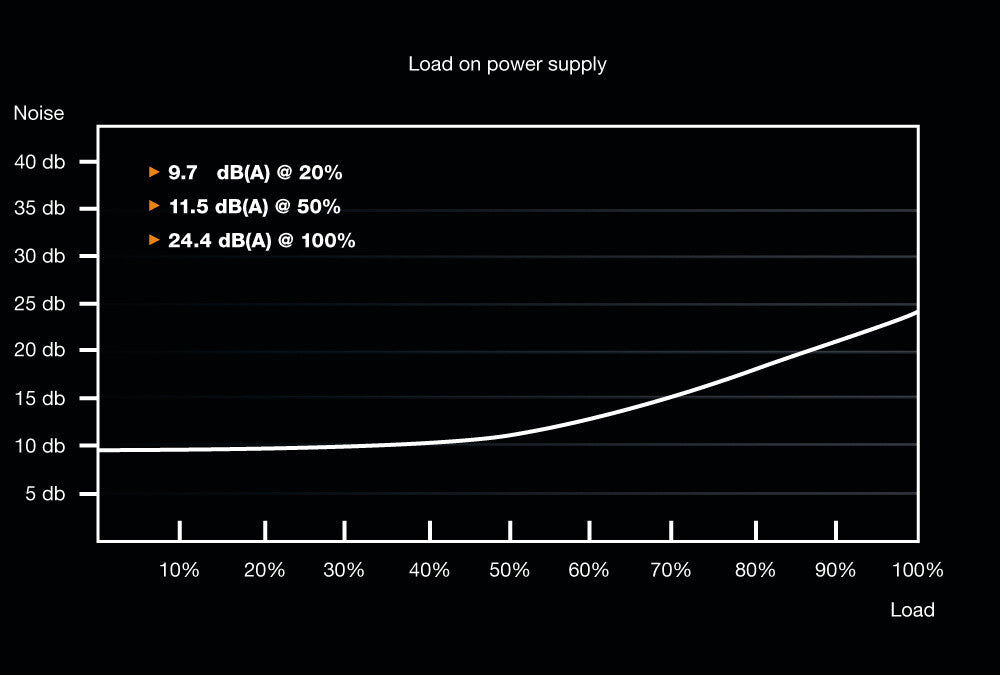

| Noise level (full-load mode, 100%) | 24.4 dB |
| Noise level (quiet mode, 50%) | 11.5 dB |
| Noise level (silent mode, | 9.7 dB |
| Screws included | Yes |
