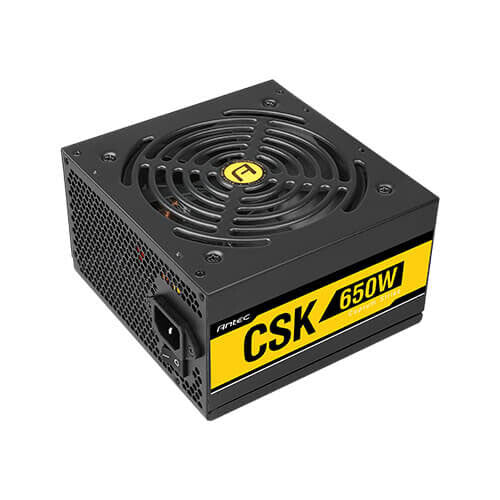

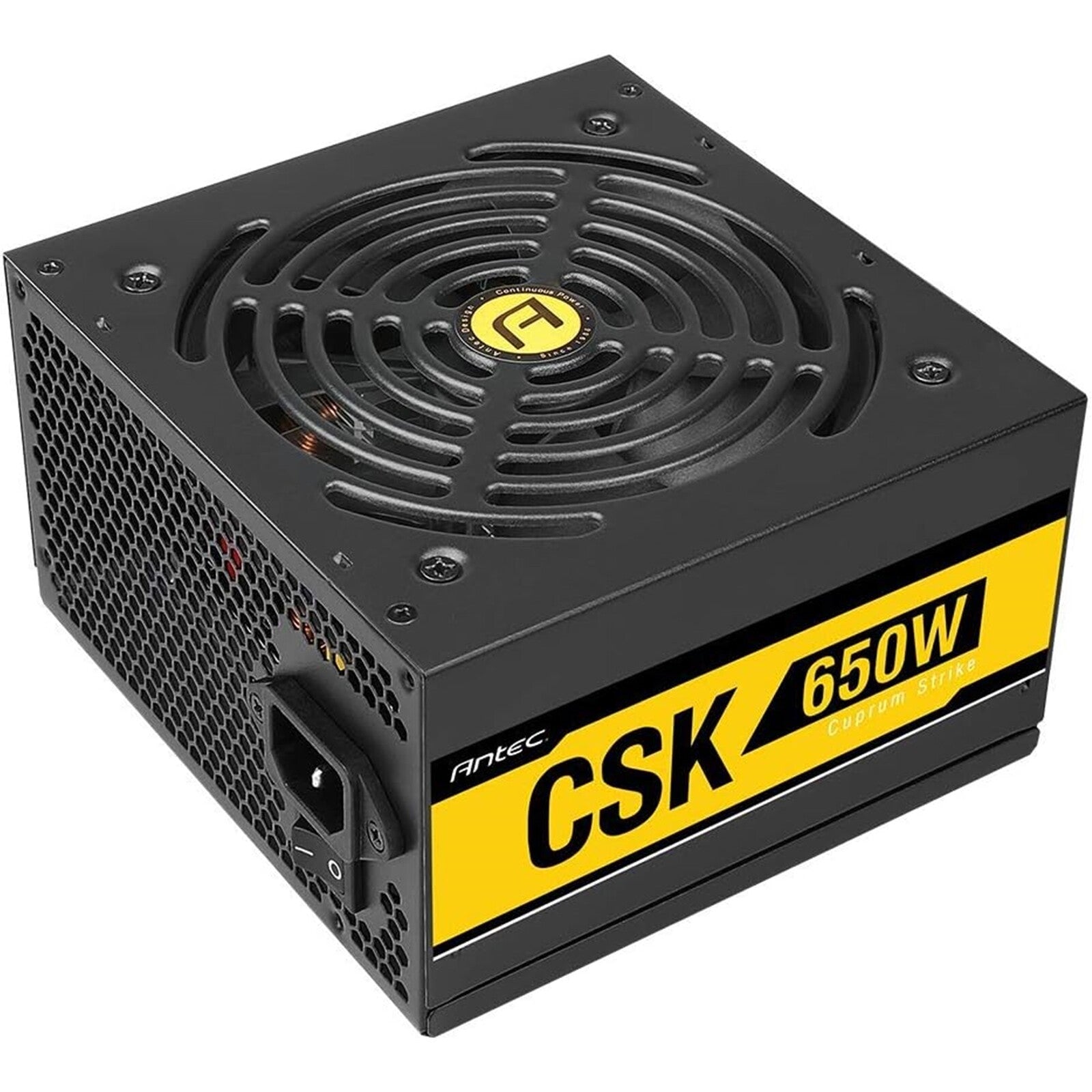

Antec Bronze Power Supply, CSK 650W 80+ Bronze Certified PSU, Continuous Power with 120mm Silent Cooling Fan, ATX 12V 2.31 / EPS 12V, Bronze Power Supply
KEY FEATURES
- 650 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Bronze
- Active 12 cm
- Black
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Antec Bronze Power Supply, CSK 650W 80+ Bronze Certified PSU, Continuous Power with 120mm Silent Cooling Fan, ATX 12V 2.31 / EPS 12V, Bronze Power Supply
Description
Antec CSK Bronze 650W Power Supply
Trust the Premium Brand
Antec, Inc. is the global leader in high-performance computer components and accessories for the gaming, PC upgrade and Do-It-Yourself markets. Founded in 1986, Antec having its long historical standing, Antec has kept producing high-quality power supplies for 35 years and hit more than a million sales quantity in the United States. Antec has also achieved great success in the distribution channel, meeting the demands of quality-conscious system builders, VARs and integrators.
Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, CSK Bronze includes Antec’s 3 year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.
Specification
Product Name
CSK650
Model Name
X5000A255HC-20
Type
ATX 12V 2.31
Dimension
140(L) x 150(W) x 86(H)
Warranty
3 years
Input Voltage
100 ~ 240 VAC
Input Current
10A ~ 5A
Input Frequency Range
50Hz ~ 60Hz
PFC
Active PFC
Power Good Signal
100 ~ 500ms
Efficiency
88% Typically
Protection
OVP/UVP/SCP/OPP/NLO/OTP
Output Capacity
650W
Operation Temperature
0 ~ 40°C
Regulatory
cTUVus/TUV/CB/RCM/CE/CCC/FCC
Fan
120mm Silence Fan
Certifications
80 Plus Bronze
Connector
1 x MB 24(20+4) Pin
1 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
7 x SATA
2 x Molex
1 x FDD
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Power protection features | Over power, Over voltage, Short circuit |
| Efficiency | 88% |
| Hold time | 500 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 50 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 600 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@220V) | 5 A |
| Maximum input current (@110V) | 10 A |
| Input current | 10 - 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| Floppy disk drive cable length | 95 cm |
| Floppy disk drive connector | Yes |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 500,650,800,950 mm |
| Number of SATA power connectors | 7 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Certification | cTUVus, TUV, CB, RCM, CE, CCC, FCC |
| ATX version | 2.31 |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Weight & dimensions | |
|---|---|
| Weight | 1.95 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.13 kg |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
