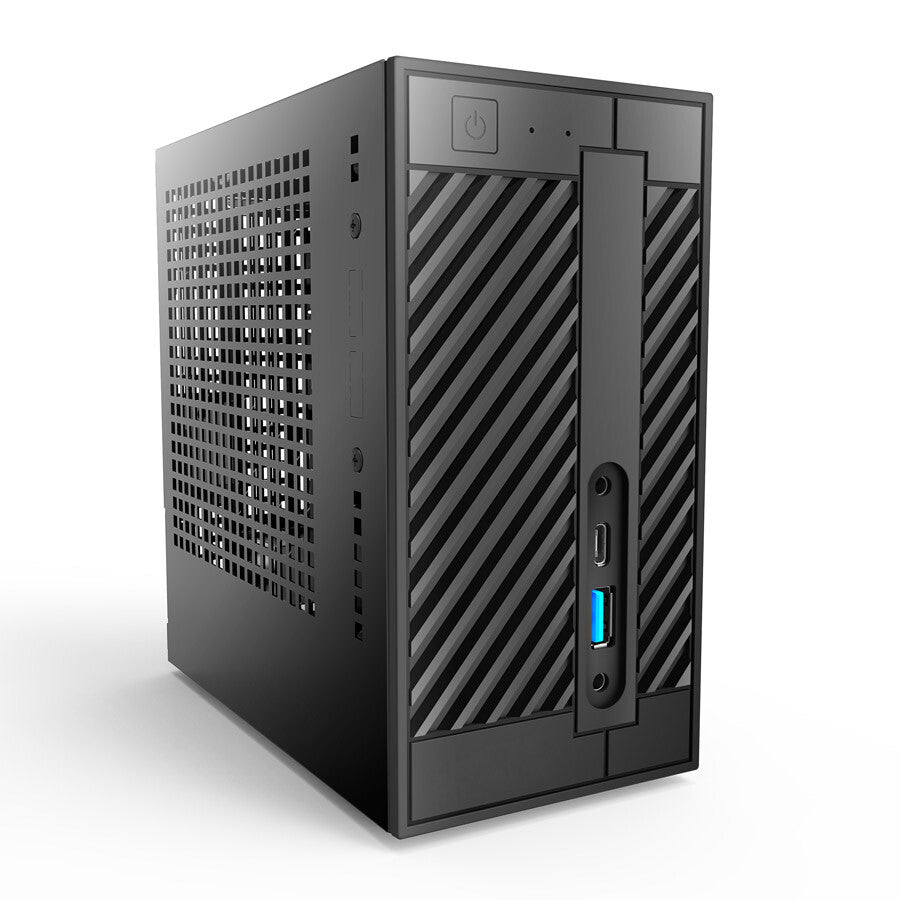

Asrock DeskMini 110 1.92L sized PC Black Intel® H110 LGA 1151 (Socket H4)
KEY FEATURES
- 1.92L sized PC Black
- 2 SO-DIMM Maximum internal memory: 32 GB DDR4-SDRAM
- HDD & SSD
- Ethernet LAN
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Asrock DeskMini 110 1.92L sized PC Black Intel® H110 LGA 1151 (Socket H4)
Description
Asrock DeskMini 110. Chassis type: 1.92L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel® H110, Processor socket: LGA 1151 (Socket H4). Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2. Cooling type: Active. Power supply: 65 W
About Mini-STX
The Mini Socket Technology Extended (Mini-STX) form factor adds the flexibility to support Intel® LGA 1151 socket-based Intel® processors in the mini PC segment
Unique Features
Smaller Size, Better performance
Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance.
Higher Value, Better performance
Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors.
DC-In Adapter
The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design.
Tons of Customization Options
COM port header, TPM 2.0 chip, slim thermal fan or standard Intel box fan. Customize your own mini-STX.

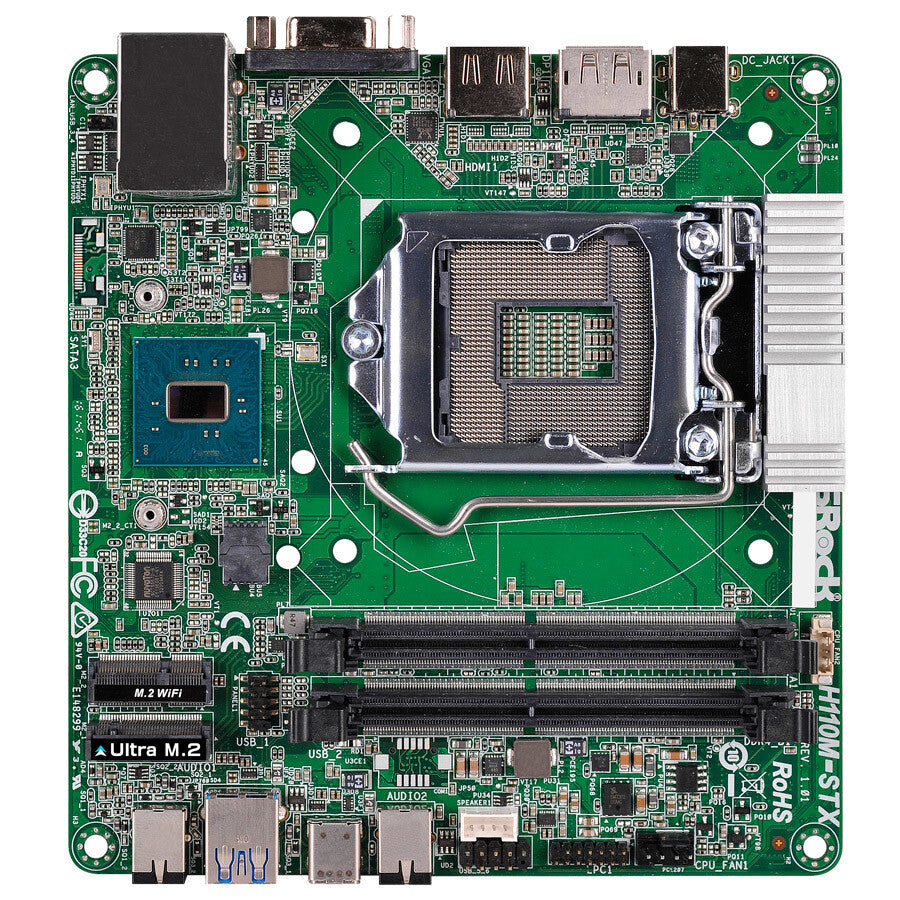

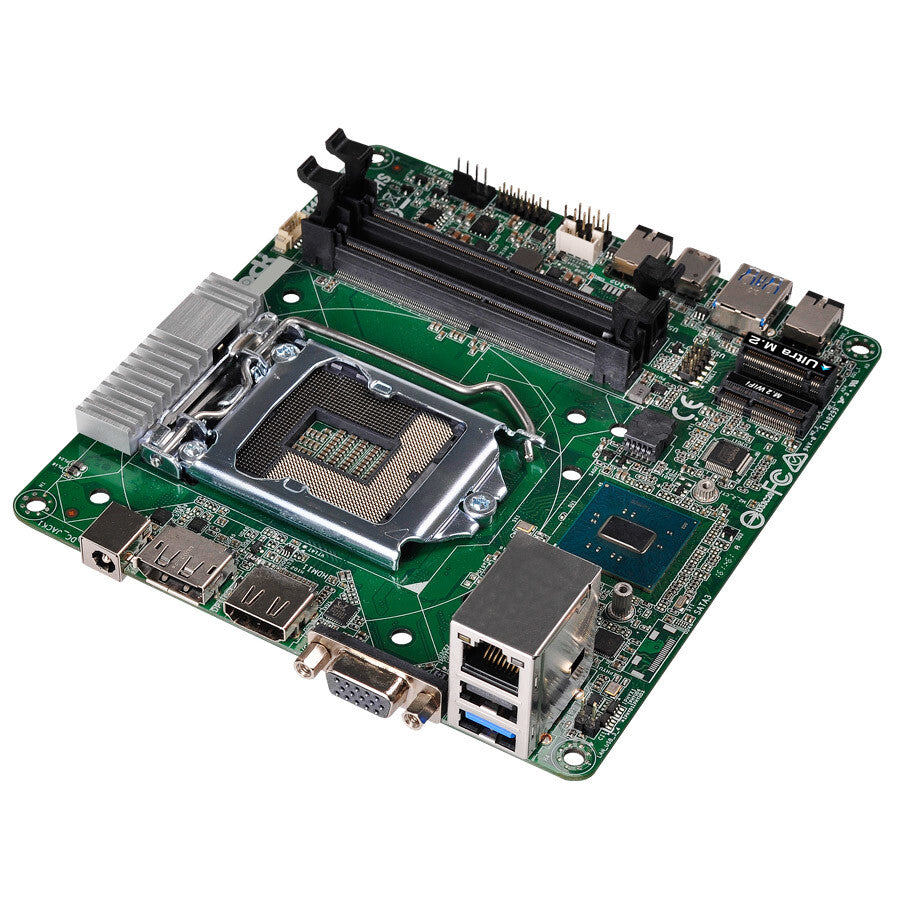

Two M.2 Slots
A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs.
* SATA type M.2 module is not supported.

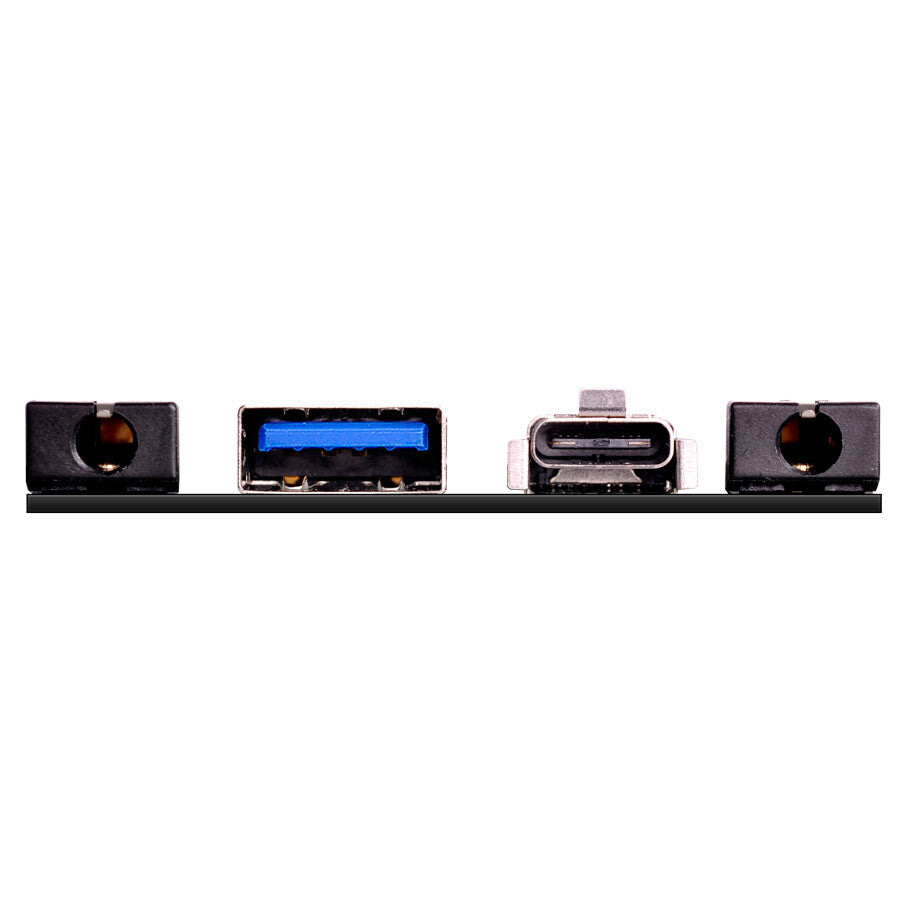

USB 3.0 Type-C
A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.
*Available only with DeskMini 110W
Flexible LAN Choice
Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN.
Two SATA3 Headers
There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.

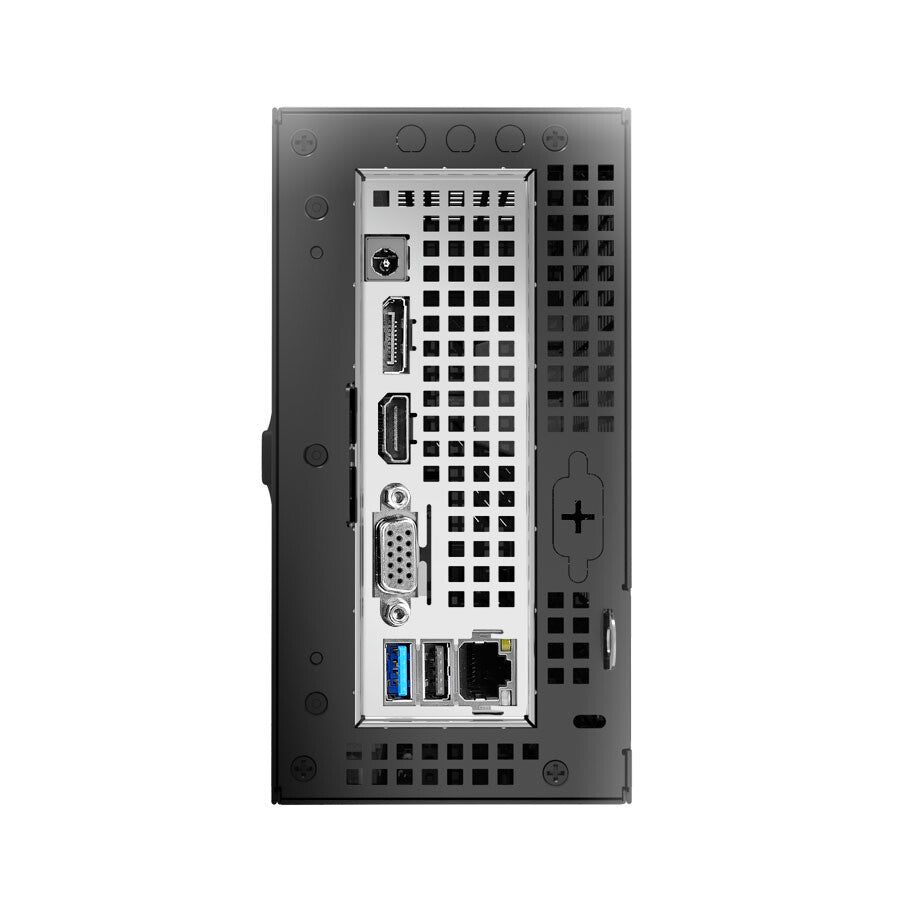

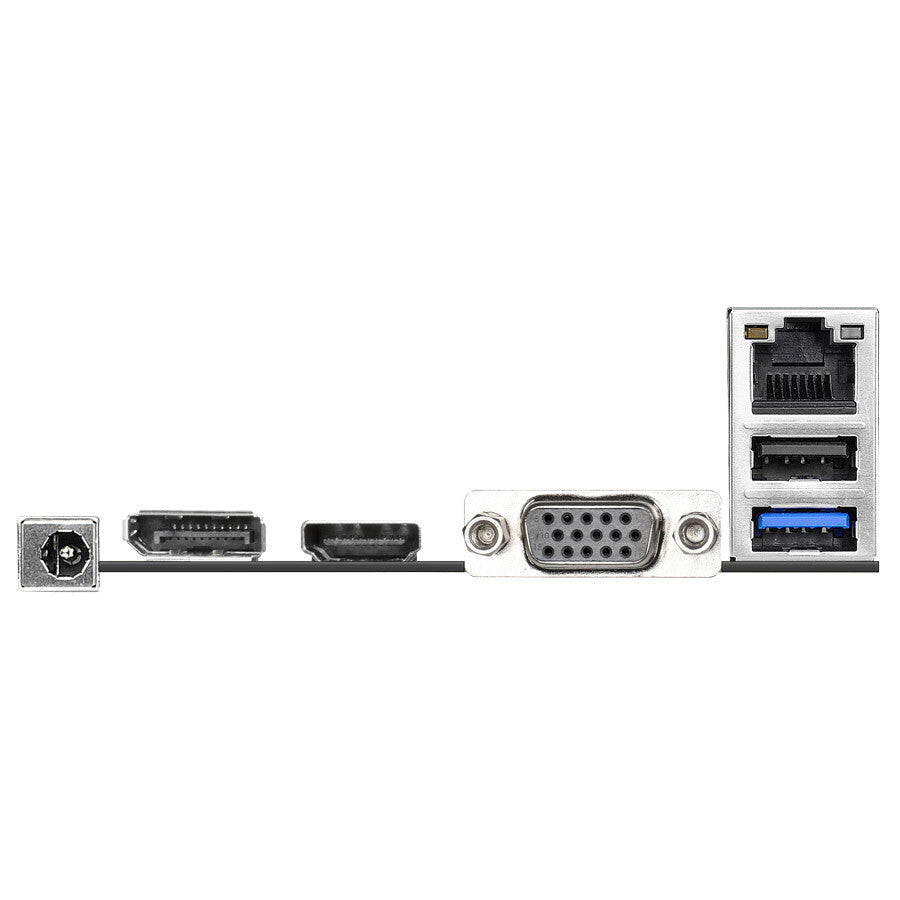

Three Graphics Outputs
This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.
*Supports up to 2 displays simultaneously
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 2 |
| Storage drive interface | M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Network | |
|---|---|
| LAN controller | Intel® I219-V |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Design | |
|---|---|
| Product type | Mini PC barebone |

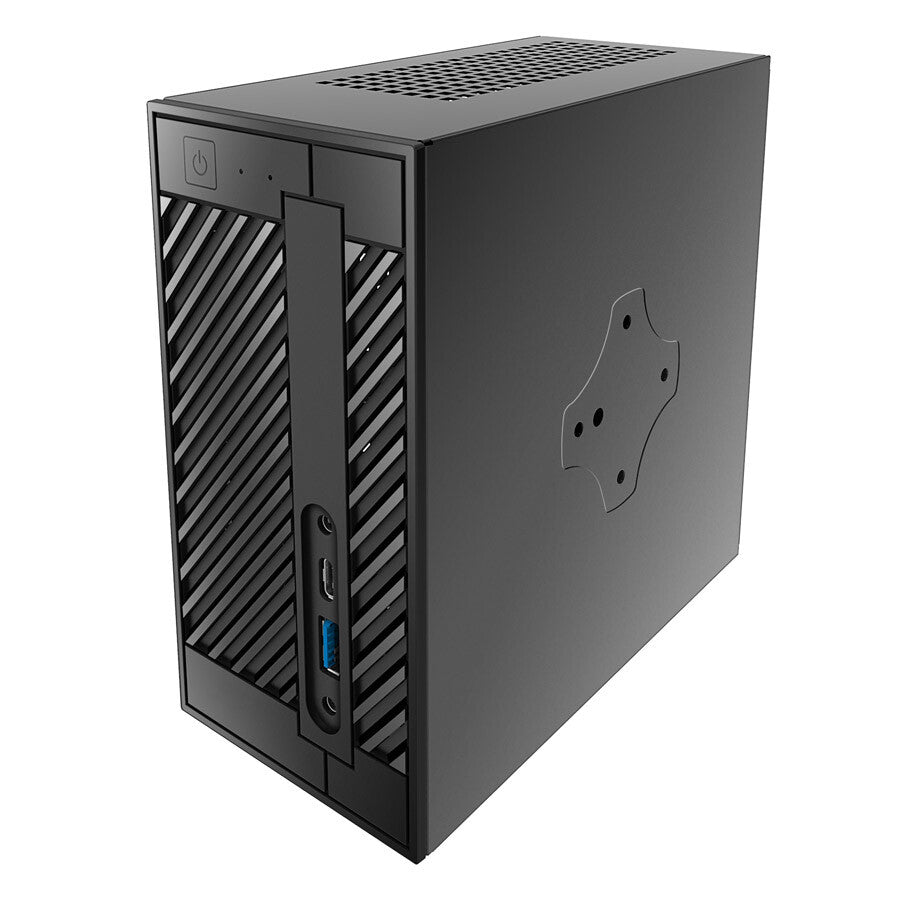

| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Housing material | Plastic, Steel |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 1.92L sized PC |
| Performance | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor socket | LGA 1151 (Socket H4) |
| Motherboard chipset | Intel® H110 |
| Power | |
|---|---|
| Power supply | 65 W |
| Power supply type | Internal power supply unit |
