ALOGIC TB4D3TB notebook dock/port replicator Wired Thunderbolt 4 Black
KEY FEATURES
- 3 x USB-C Thunderbolt 4/USB 4.0 (40 Gbps/3A), 3 x USB-A 3.1 Gen 2 (10Gbps), 1 x USB-A 2.0 (480Mbps) BC1.2 (1.5A), 1 x 3.5mm Combo Jack, , 1 x Gigabit Ethernet Port,1 x SD Card Reader (SD 4.0)
- Dual 4K@60Hz Display Support
- Up to 96W power to laptop
- Premium Aluminium Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Description
ALOGIC TB4D3TB. Connectivity technology: Wired, Host interface: Thunderbolt 4, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, HD type: 4K Ultra HD. Power supply: 135 W, Power consumption (max): 96 W. Width: 84 mm, Depth: 194 mm, Height: 30 mm
Thunderbolt 4 Blazing Performance
Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.
Single Cable Simplicity –96W Charging
This dock truly does it all –and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16” MacBook devices.

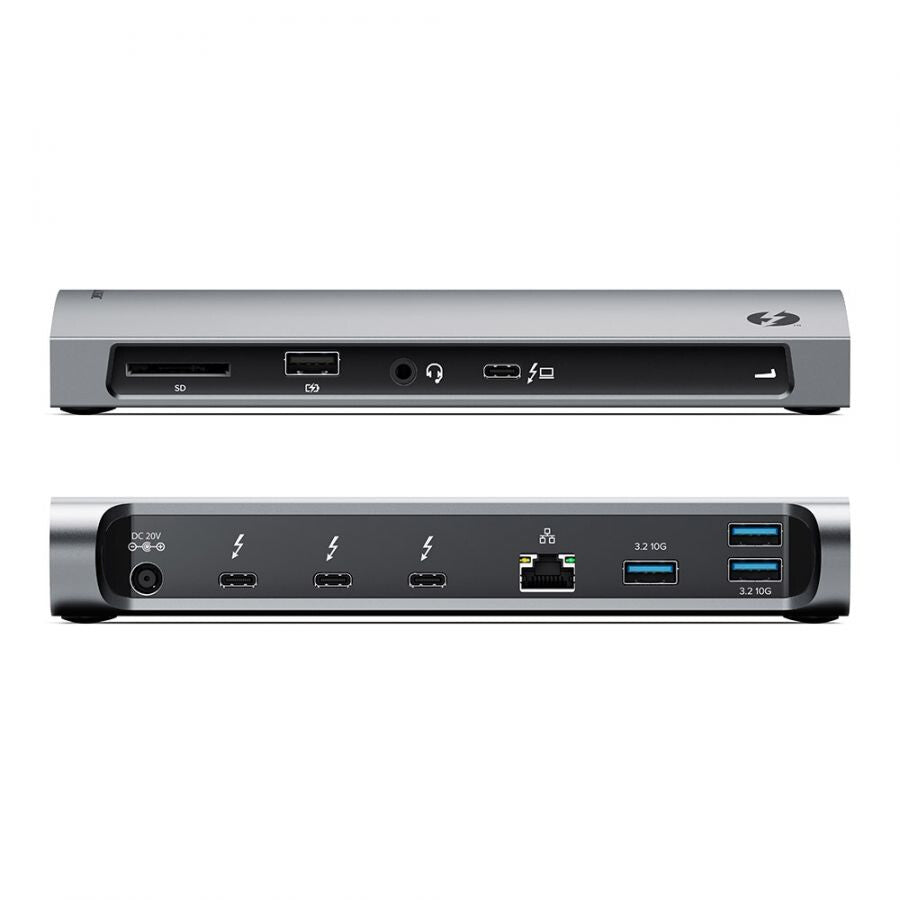

Comprehensive Connectivity
The ALOGIC BLAZE dock features a comprehensive range of ports to allow connection of all standard peripherals including:
- 3 x Thunderbolt/USB-C (40G)
- 3 x USB-A (10G)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Jack
- SD 4.0 Card Reader

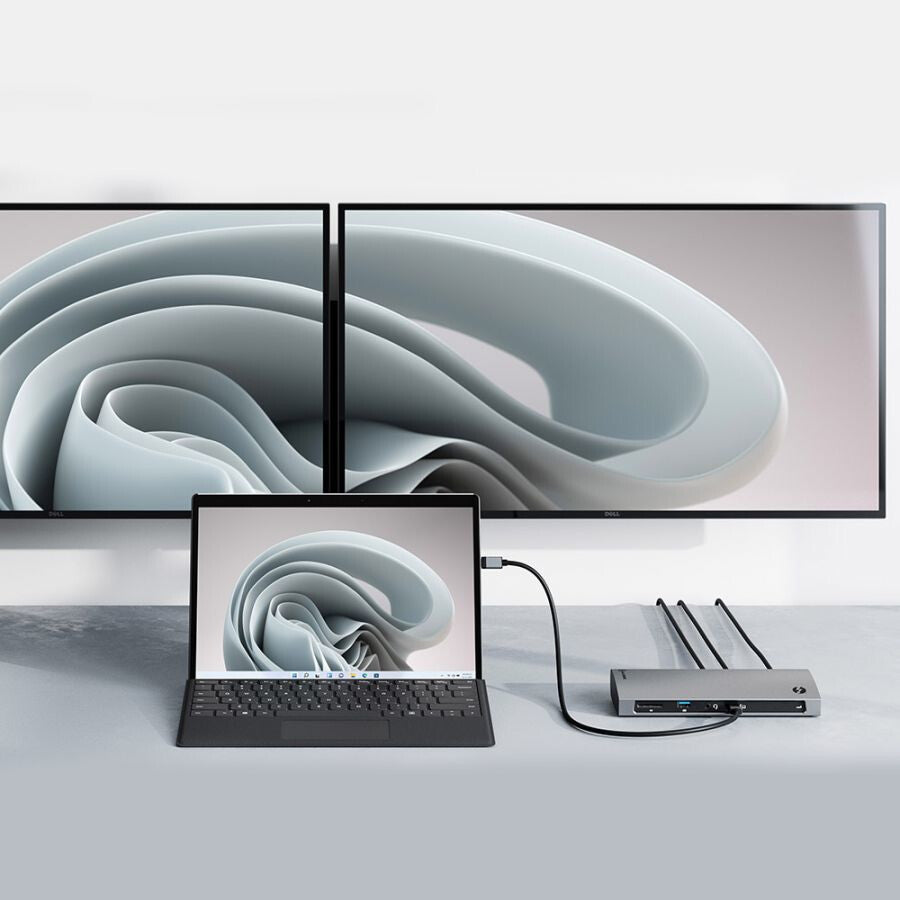

Dual Ultra-High Definition Display: 4K@60Hz
The BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB-C (DP Alt Mode) as follows:
- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz
Warranty: 2 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Thunderbolt 4 ports quantity | 3 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Performance | |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Plug and Play | Yes |
| LED indicators | Yes |
| Compatibility | Apple, Microsoft |
| Power | |
|---|---|
| Power supply | 135 W |
| Power consumption (max) | 96 W |
| Weight & dimensions | |
|---|---|
| Width | 84 mm |
| Depth | 194 mm |
| Height | 30 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | AC |
| AC adapter included | Yes |
