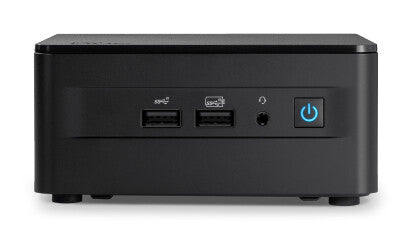

Intel NUC 13 Pro Kit NUC13ANHi3 UCFF Black i3-1315U
KEY FEATURES
- UCFF Black
- Built-in processor Intel i3-1315U
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- SSD M.2,2.5
- Intel® UHD Graphics
- Ethernet LAN Wi-Fi
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Intel NUC 13 Pro Kit NUC13ANHi3 UCFF Black i3-1315U
Description
Intel NUC 13 Pro Kit NUC13ANHi3. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor codename | Raptor Lake |
| Processor cache | 10 MB |
| Processor boost frequency | 4.5 GHz |
| Efficient-core boost frequency | 3.3 GHz |
| Performance-core boost frequency | 4.5 GHz |
| Efficient cores | 4 |
| Performance cores | 2 |
| Processor threads | 8 |
| Processor cores | 6 |
| Processor model | i3-1315U |
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel Core i3-13xxx |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Non-ECC | Yes |
| ECC | No |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 3 |
| NVMe | Yes |
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2,2.5 |
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| Number of displays supported | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card family | Intel |
| On-board graphics card | No |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Serial port via internal header | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Thunderbolt ports quantity | 2 |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| Number of SATA III connectors | 1 |
| USB ports quantity | 4 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express slots version | 4.0 |
| Design | |
|---|---|
| Product codename | Arena Canyon |
| Product family | Intel NUC |
| Status | Launched |
| ARK ID | 233096 |
| Product type | Mini PC barebone |
| LED indicators | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | UCFF |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8471500150 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Operating system installed | No |
| Compatible operating systems | Windows 10 IoT Enterprise*|Ubuntu*|Linux* |
| Linux operating systems supported | RedHat EL Linux, Yes |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 11 x64 |
| Motherboard form factor | UCFF |
| Processor special features | |
|---|---|
| Intel® Optane™ Memory Ready | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel ME Firmware Version | 16.1 |
| General Information | |
|---|---|
| Product Family | NUC |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Height | 54 mm |
| Depth | 112 mm |
| Width | 117 mm |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Other features | |
|---|---|
| Launch date | Q1'23 |
| HDD size | 2.5" |
| Number of SATA connectors | 1 |
| DC input voltage | 12 - 20 V |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
