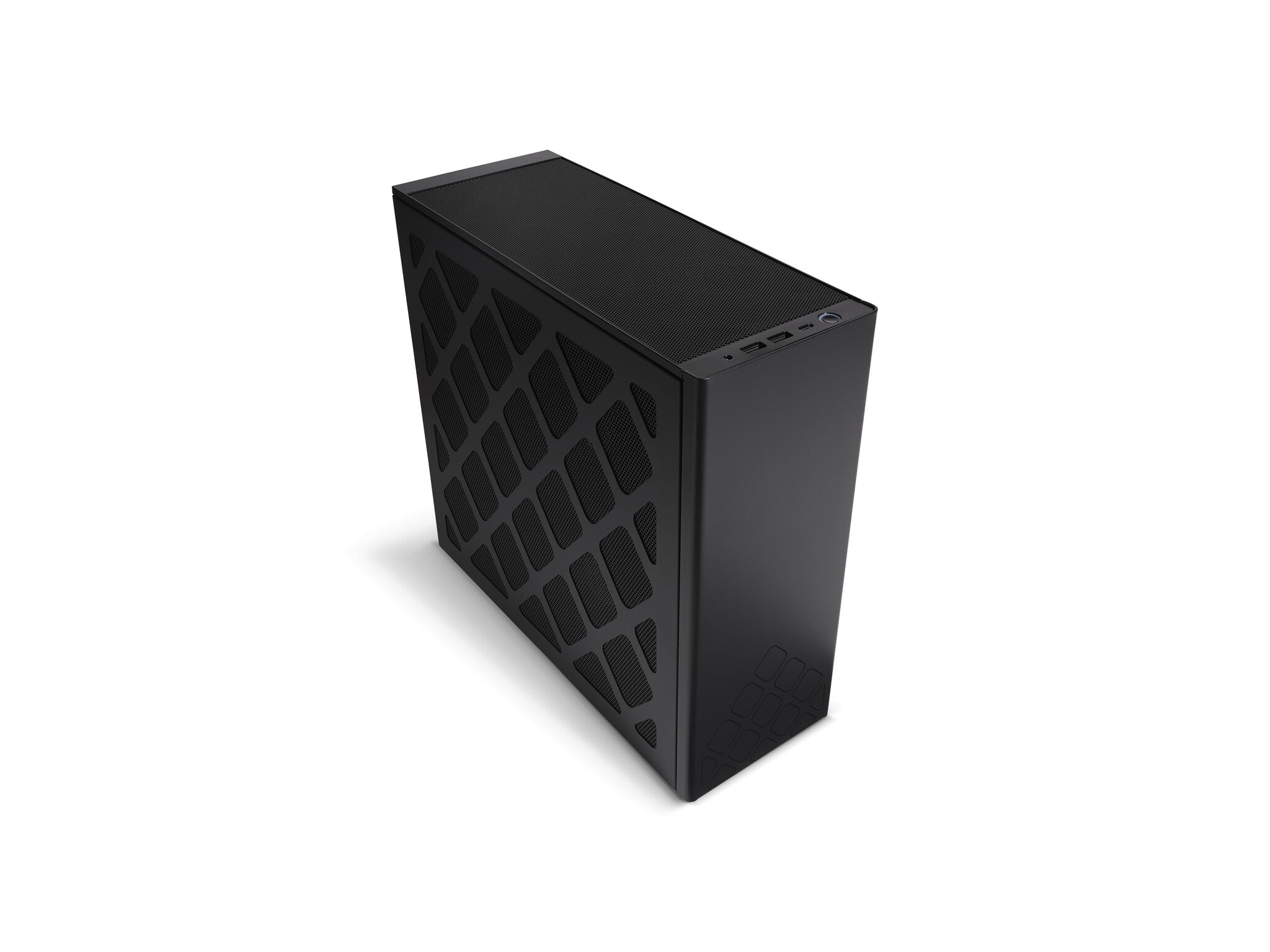

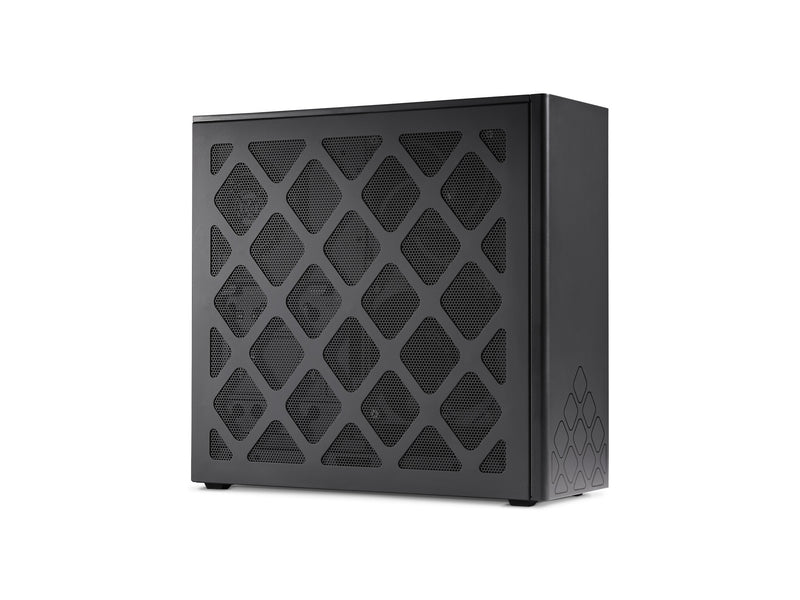

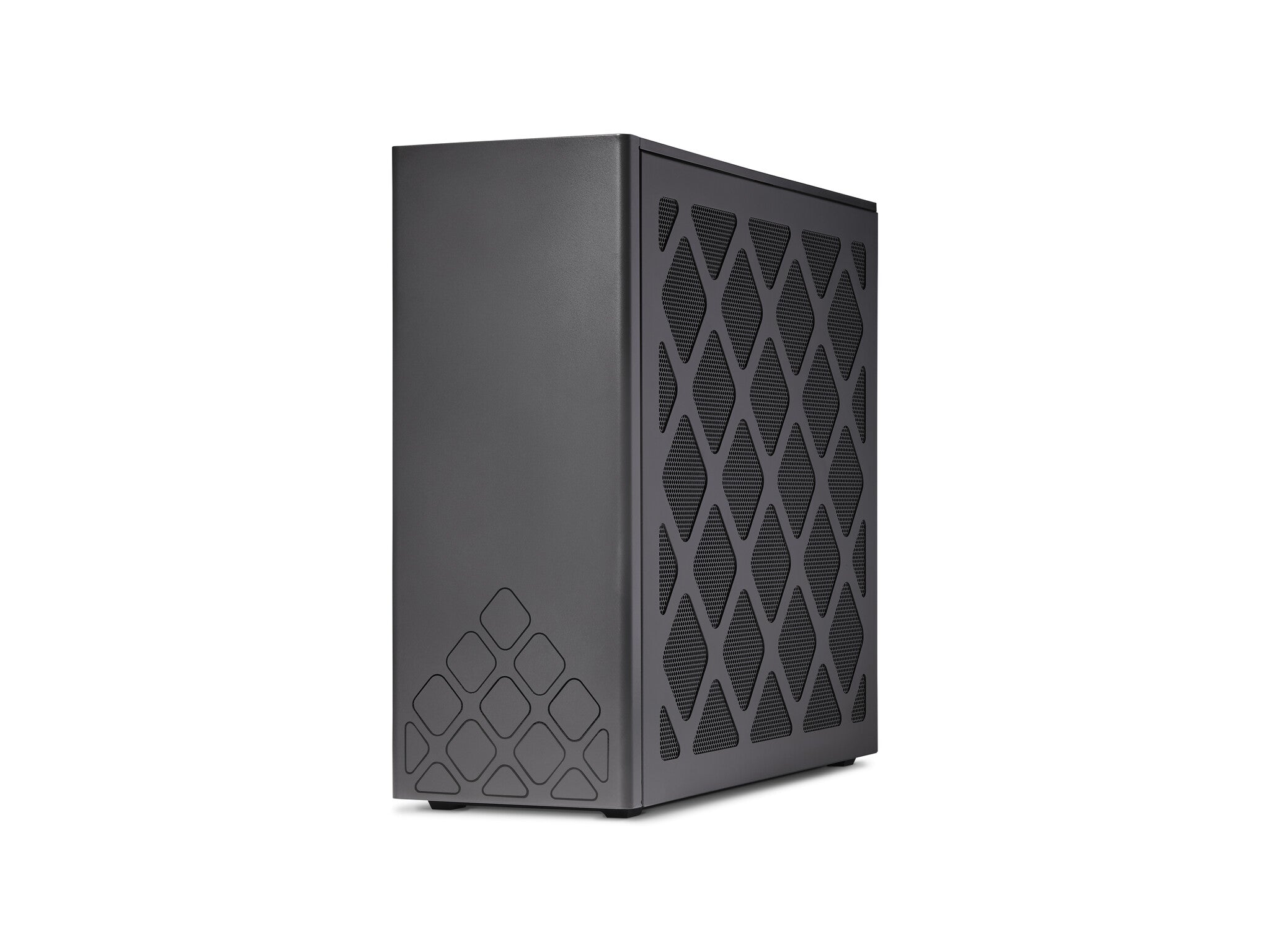

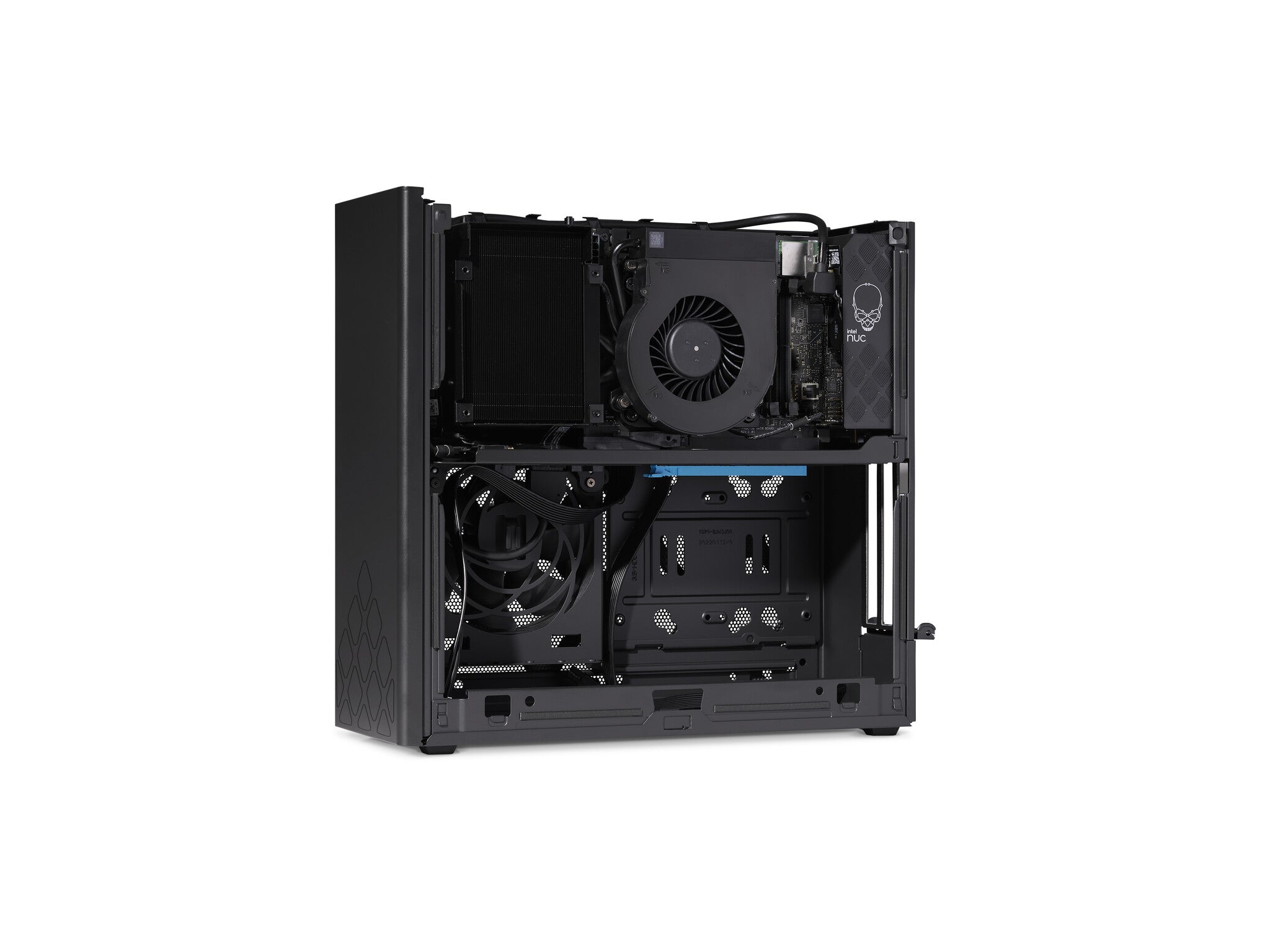

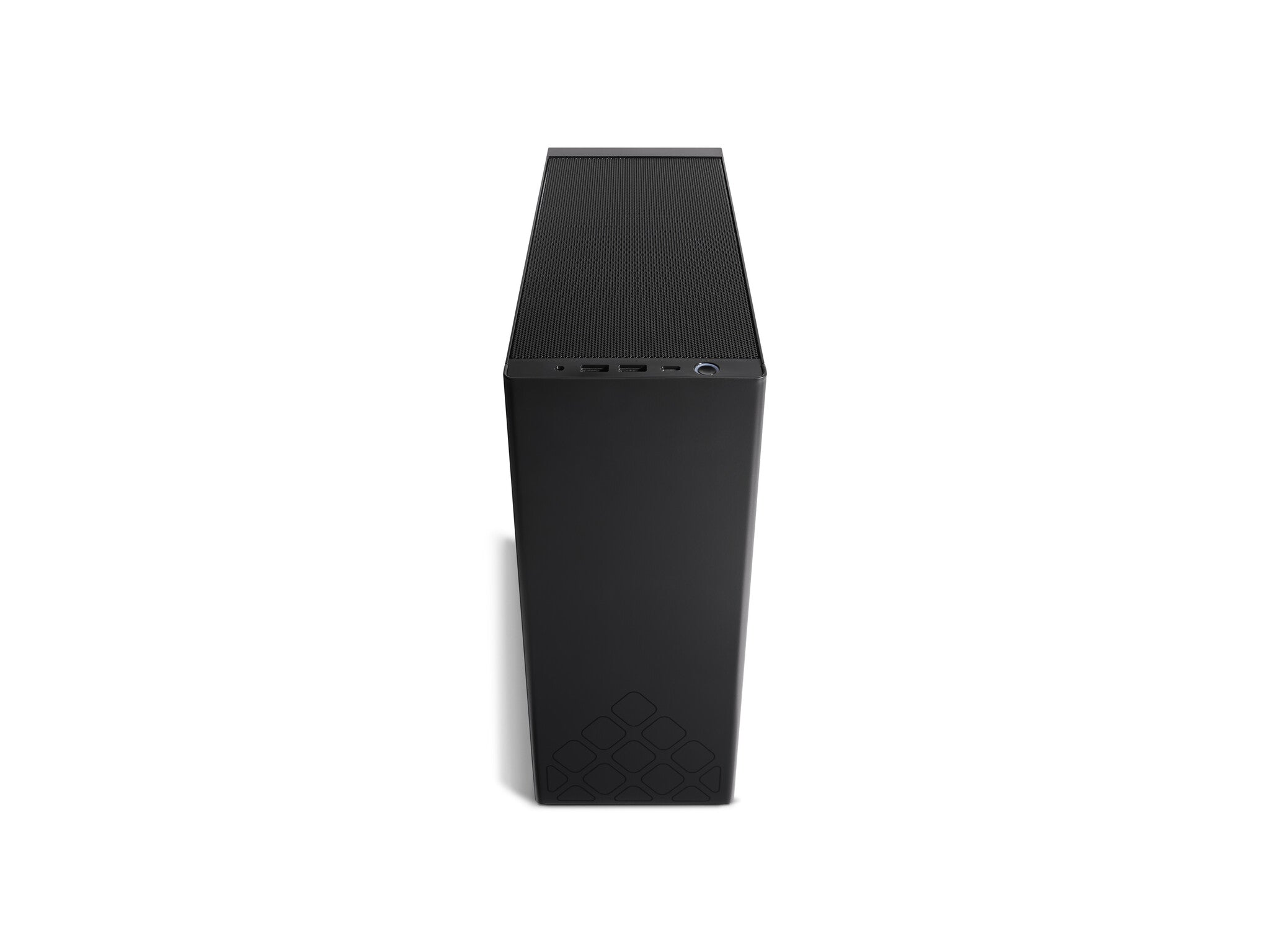

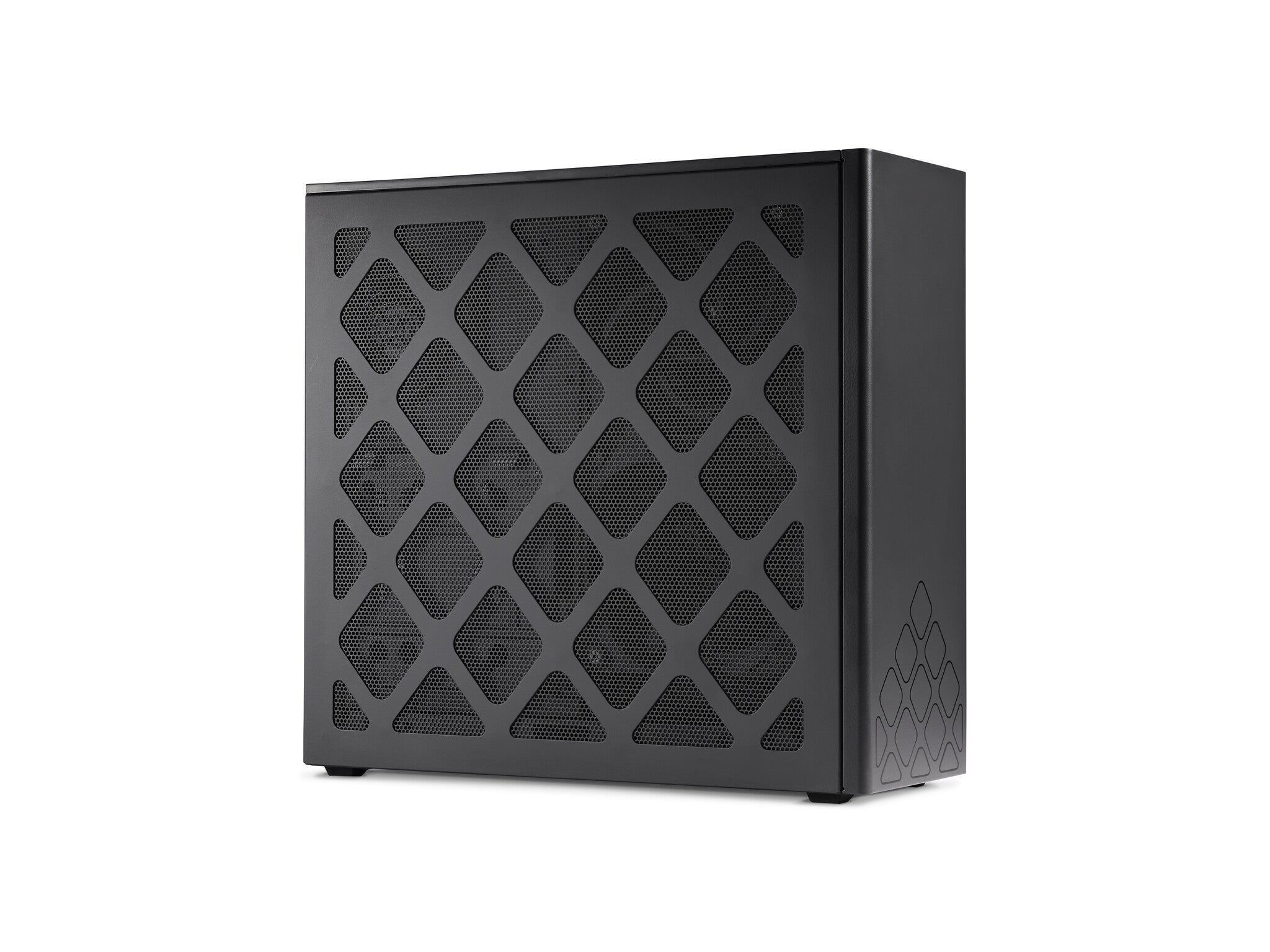

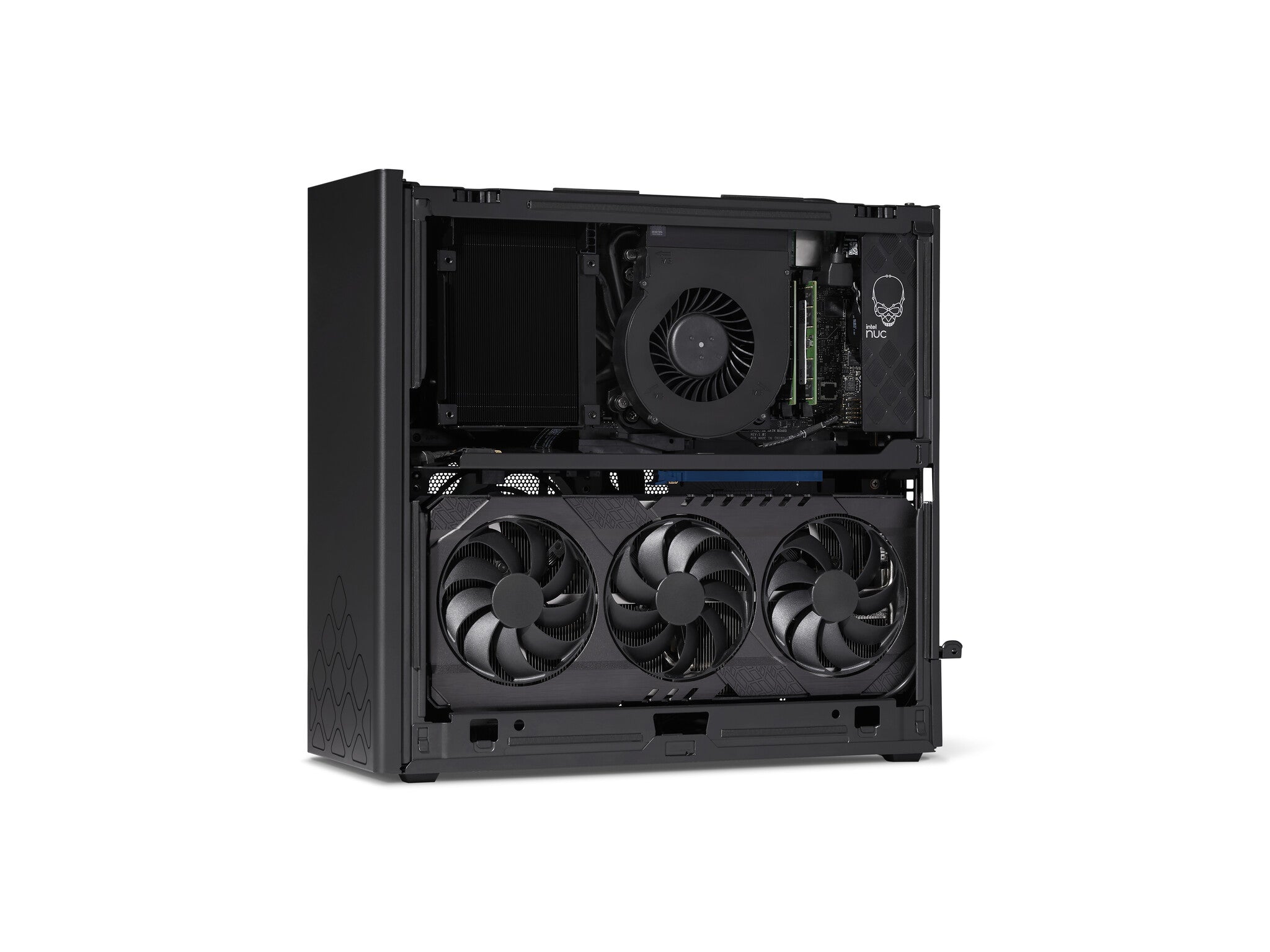

Intel NUC 13 Extreme Kit - NUC13RNGi7 Desktop Black Intel Z690 LGA 1700 i7-13700K
KEY FEATURES
- Desktop Black
- Built-in processor Intel i7-13700K
- 2 SO-DIMM Maximum internal memory: 64 GB DDR-SDRAM
- HDD & SSD M.2,2.5
- On-board graphics card Intel UHD Graphics 770
- Ethernet LAN Wi-Fi
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Intel NUC 13 Extreme Kit - NUC13RNGi7 Desktop Black Intel Z690 LGA 1700 i7-13700K
Description
Intel NUC 13 Extreme Kit - NUC13RNGi7. Chassis type: Desktop, Product type: PC barebone. Motherboard chipset: Intel Z690, Processor socket: LGA 1700, BIOS type: EEPROM. Supported memory types: DDR-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III, RAID levels: 0, 1. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax). Cooling type: Active. Power supply: 750 W
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 125 W |
| L2 cache | 24 MB |
| Processor cache | 30 MB |
| Processor boost frequency | 5.4 GHz |
| Processor threads | 24 |
| Processor cores | 16 |
| Processor model | i7-13700K |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| ECC | No |
| Maximum internal memory | 64 GB |
| Supported memory types | DDR-SDRAM |
| Memory channels | Dual-channel |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| RAID levels | 0, 1 |
| Number of storage drives supported | 5 |
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2,2.5 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Number of displays supported | 3 |
| Maximum resolution | 7680 x 4320 pixels |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| WLAN controller model | Killer Wi-Fi 6E AX1690 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |

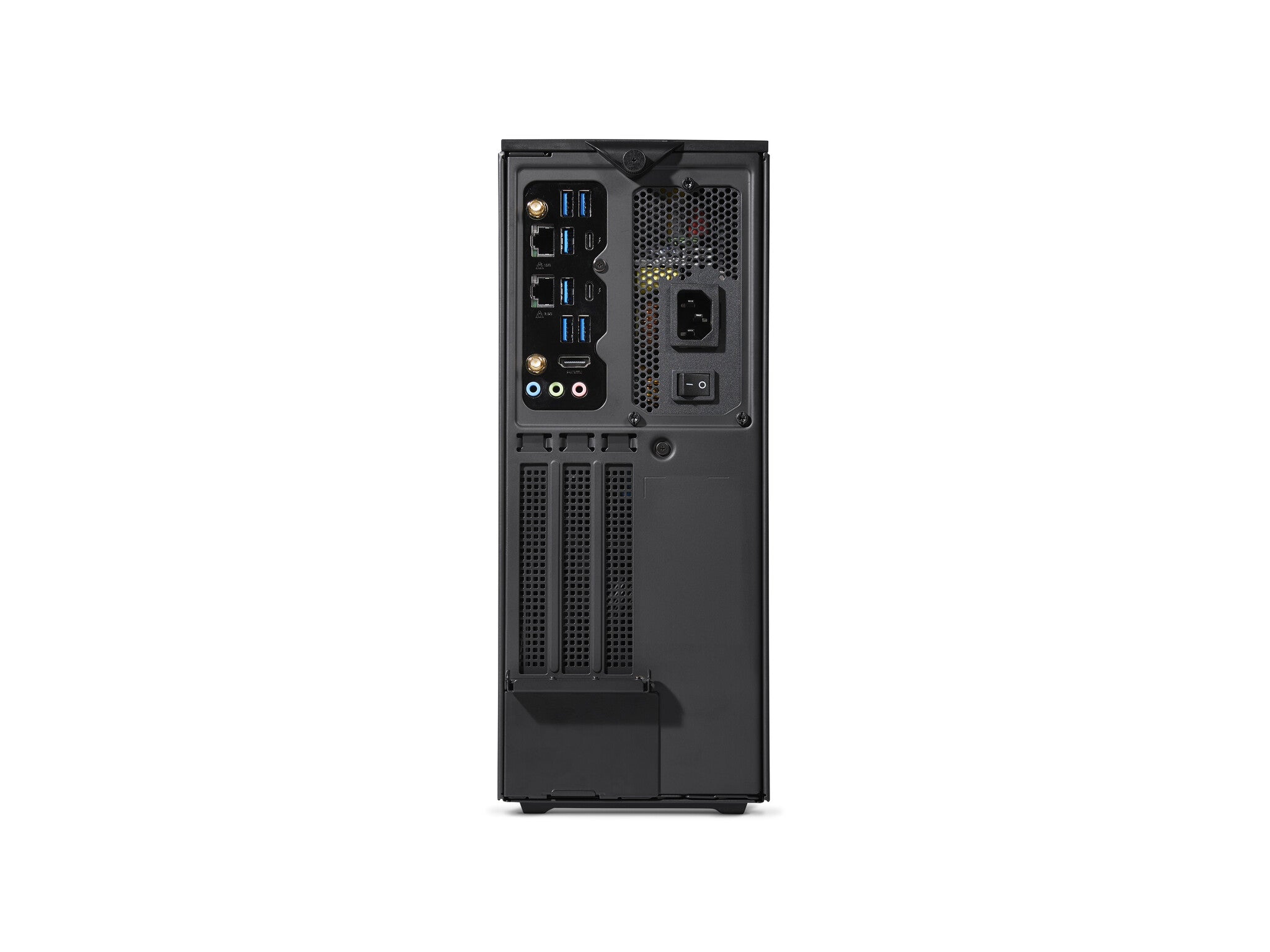

| Ports & interfaces | |
|---|---|
| M.2 card slot (storage) | 2 via PCH + 1 via CPU (NVMe) |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 4 ports quantity | 2 |
| M.2 card slot (wireless) | Killer™ Wi-Fi 6E AX1690i |
| Number of SATA III connectors | 4 |
| USB ports quantity | 11 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 5, 4.0 |
| Design | |
|---|---|
| Product codename | Raptor Canyon |
| Product series | Intel NUC kit |
| Product family | Intel NUC |
| Status | Launched |
| Certification | IEC/EN/UL 60950-1IEC/EN/UL 62368-1FCC Part 15B/15C/15ECISPR/EN 55032/55024ICES-003VCCI 32BSMI CNS 13438KN 32/35AS/NZS CISPR 32EN 300 328EN 301 893EN 300 440EN 301 489-1/3/17EN 62311AS/NZS 4268AS/NZS 2772.2ARPANSA |
| Product type | PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | Desktop |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8471500150 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Operating system installed | No |
| Compatible operating systems | Windows 11 (64-bit) |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Audio output channels | 7.1 channels |
| BIOS type | EEPROM |
| Number of processors supported | 1 |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel Z690 |
| Processor special features | |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| General Information | |
|---|---|
| Product Family | NUC |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR, RoHS |
| Introduction year | 2022 |
| Warranty period | 3 year(s) |
| Power | |
|---|---|
| Power supply | 750 W |
| Number of power supply units | 1 |
| Power supply type | Internal power supply unit |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 318 mm |
| Depth | 337 mm |
| Width | 129 mm |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Other features | |
|---|---|
| Launch date | Q4'22 |
| HDD size | 2.5" |
| Number of SATA connectors | 4 |
