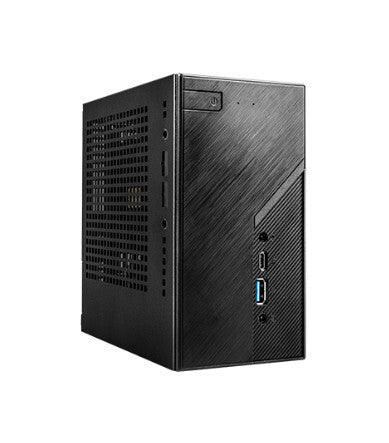

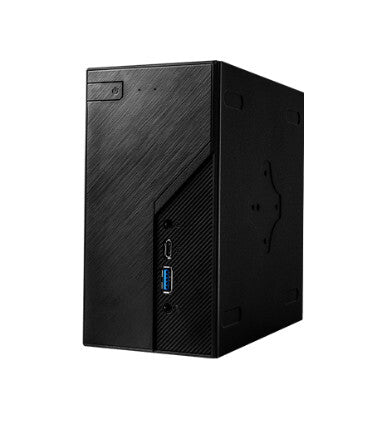

Asrock DeskMini B760 Series 1.92L sized PC Black Intel B760 LGA 1700
KEY FEATURES
- Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700), up to 65W
- Dual DDR4-3200MHz SO-DIMMs, up to 64GB
- Multi Video Outputs：1 x DisplayPort, HDMI & D-Sub
- 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
- 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
- 1 x Blazing M.2 (PCIe Gen5 x4) Slot
- 1 x Hyper M.2 (PCIe Gen4 x4) Slot
- 2 x 2.5" HDD/SSD with RAID 0/1
- 1 x M.2 Key-E for Wi-Fi
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Asrock DeskMini B760 Series 1.92L sized PC Black Intel B760 LGA 1700
Description
Asrock DeskMini B760 Series. Chassis type: 1.92L sized PC, Product type: PC barebone. Motherboard chipset: Intel B760, Processor socket: LGA 1700. Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Power supply: 120 W
Mini Size, Mighty Power
DeskMini B760 adopts LGA1700 CPU socket which supports the latest 13th Gen Intel® Core™ Processors for delivering ultimate computing performance within a tiny PC.
Dr.MOS
The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Heatsink on MOSFET
ASRock DeskMini B760 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading.
Dual Channel DDR4-3200
DeskMini B760 supports Dual Channel DDR4-3200MHz high-speed memory, up to 64GB.
2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
USB Alternate Mode
A USB 3.2 Gen2 Type-C with alternate mode is available on the rear I/O, offering a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate.
USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Rapid USB Connectivity

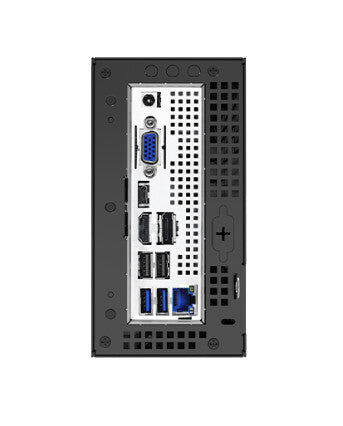

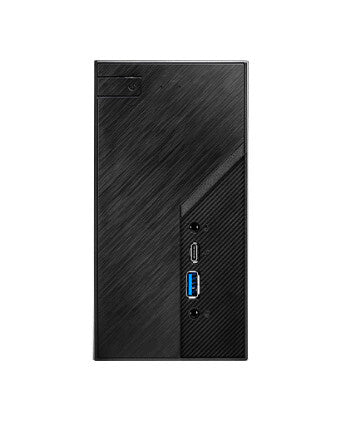

DeskMini B760 supports a USB 3.2 Gen2 Type-A in the front panel, delivering 10Gbps speedy data transfer rate. In addition, DeskMini B760 brings 4 x USB Type-A ports on the rear I/O for all of your peripherals.
Optane Memory Technology
The Supports on Intel® Optane™ memory technology and Intel® Optane™ storage technology redefines a new standard of high performance and responsiveness.
High Speed M.2 Solution
DeskMini B760 offers two M.2 2280 slots. One of them can even support the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation. All of your apps and programs will load with lightning speed which makes you working or gaming faster than ever.
M2_1 M.2 (2280) –PCIe Gen5 x4
M2_2 M.2 (2280) –PCIe Gen4 x4
Mini Home Data Center
DeskMini B760 supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Quadruple Displays
Up to four video outputs can be used simultaneously for productivity and multitasking. DisplayPort 1.4 ports allow you to enjoy Ultra HD content on an 8K monitor or TV.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
DeskMini Addressable LED(Optional)
Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. Attach the magnetic strip inside the chassis to create cool personalized lighting for you.
DeskMini USB Hub(Optional)
Attach the magnetic DeskMini USB Hub inside the chassis. Let you easy connect to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.
VESA Mount Kit (Optional)
Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
Rear Audio Cable (Optional)
Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on…
Intel® Wi-Fi Kit (Optional)
ASRock M.2 Wi-Fi Kit includes Intel® M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini.
USB 2.0 Cable (Optional)
Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini Series side plane.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 4 |
| NVMe | Yes |
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Product type | PC barebone |
| Product colour | Black |
| Chassis type | 1.92L sized PC |
| Performance | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio chip | Realtek ALC269 |
| Number of processors supported | 1 |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel B760 |
| General Information | |
|---|---|
| Product Family | DeskMini |
| Power | |
|---|---|
| AC adapter output voltage | 19 V |
| Power supply | 120 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Height | 155 mm |
| Depth | 155 mm |
| Width | 80 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
