Zyxel POE12-3PD-ZZ0101F PoE adapter Gigabit Ethernet
KEY FEATURES
- Built-in with one Gigabit IEEE802.3bt PoE++ (60W) input port and three Gigabit IEEE802.3at PoE+ output ports
- Up to 45W power budget to setup versatile devices at the edge of your network
- Monitor status anytime anywhere through Nebula Cloud
- Outdoor waterproof enclosure with IP55 protection design
- 6KV surge to safeguard sensitive network device
- Works reliably in extreme environment with wide range temperature (-20 to 50°C)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Zyxel POE12-3PD-ZZ0101F PoE adapter Gigabit Ethernet
Description

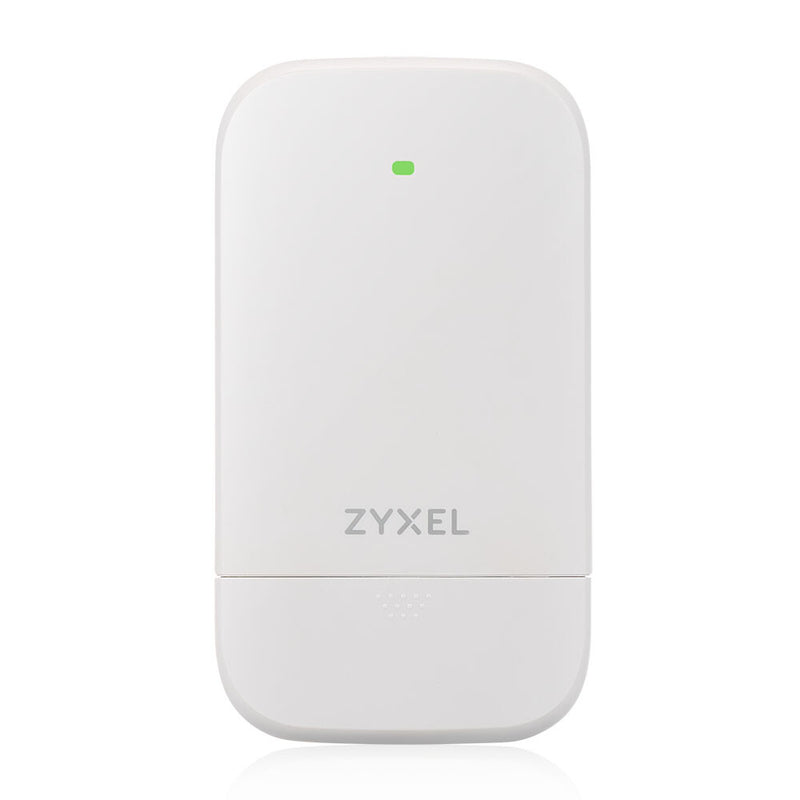

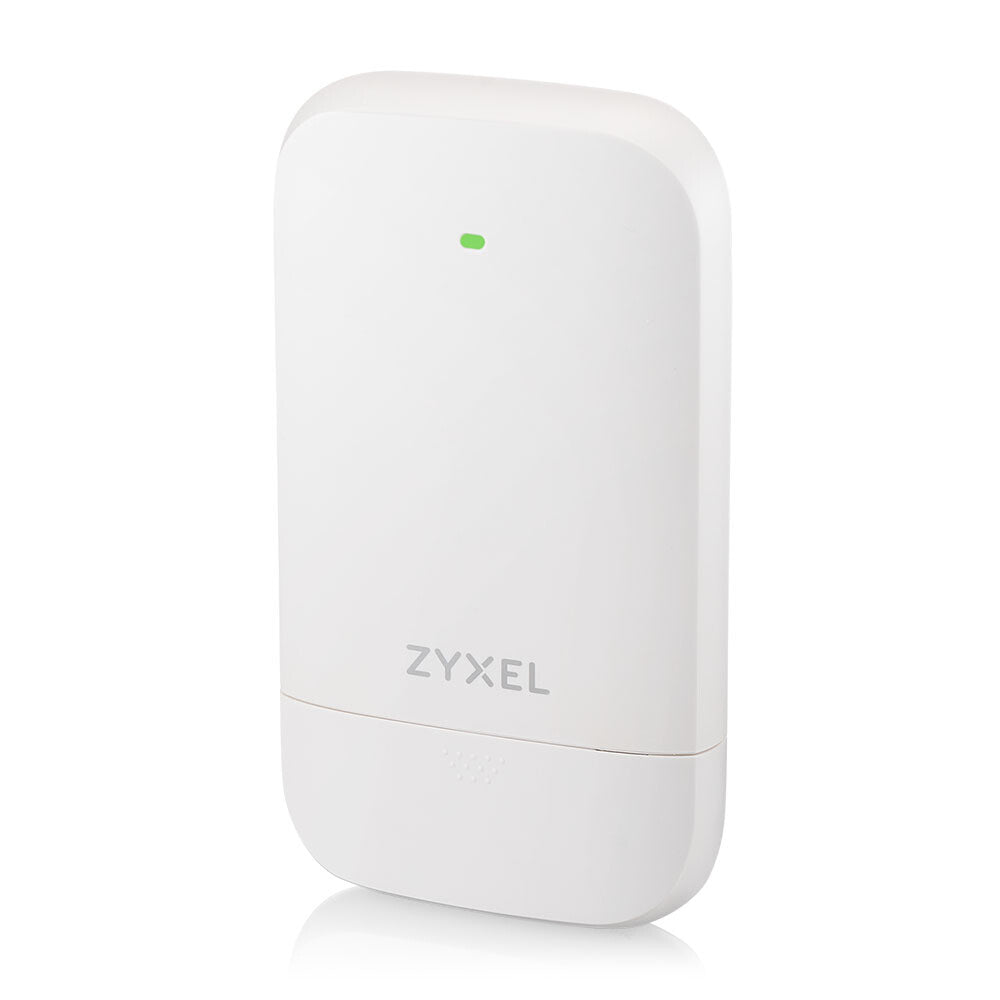

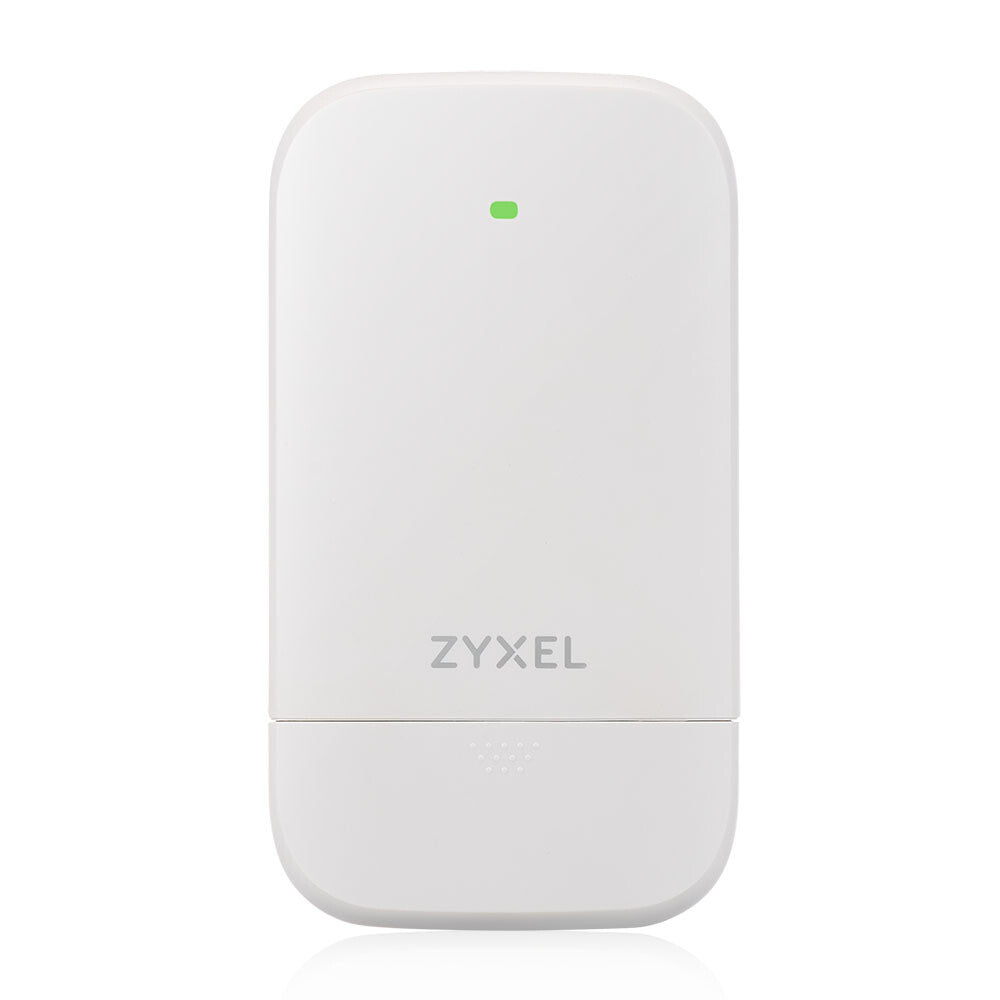

The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint
PoE applications, which effortlessly extend the range of power and data
connectivity when your devices are located at a distance that far away from

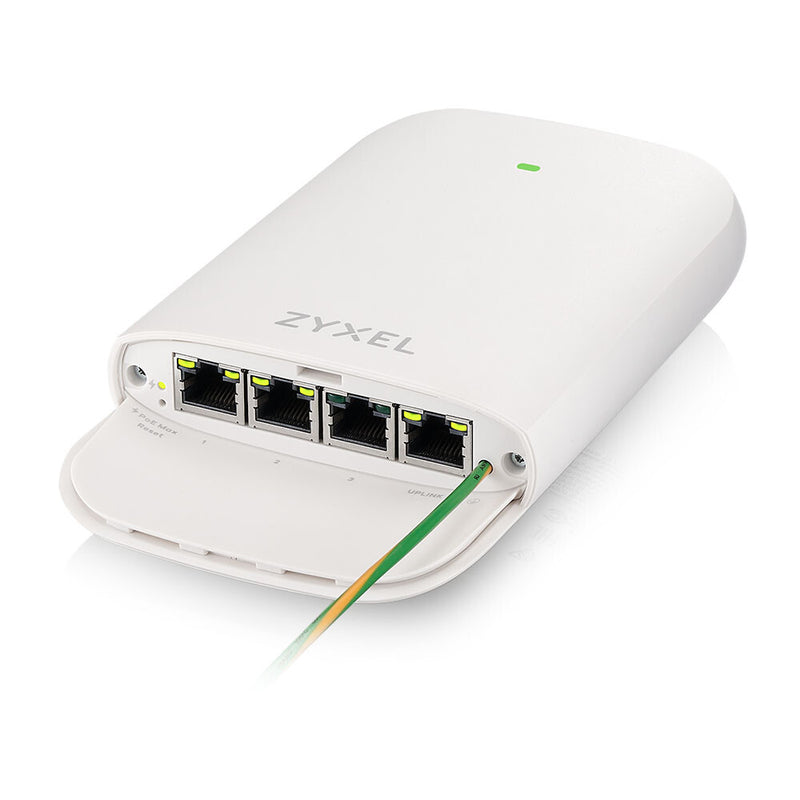

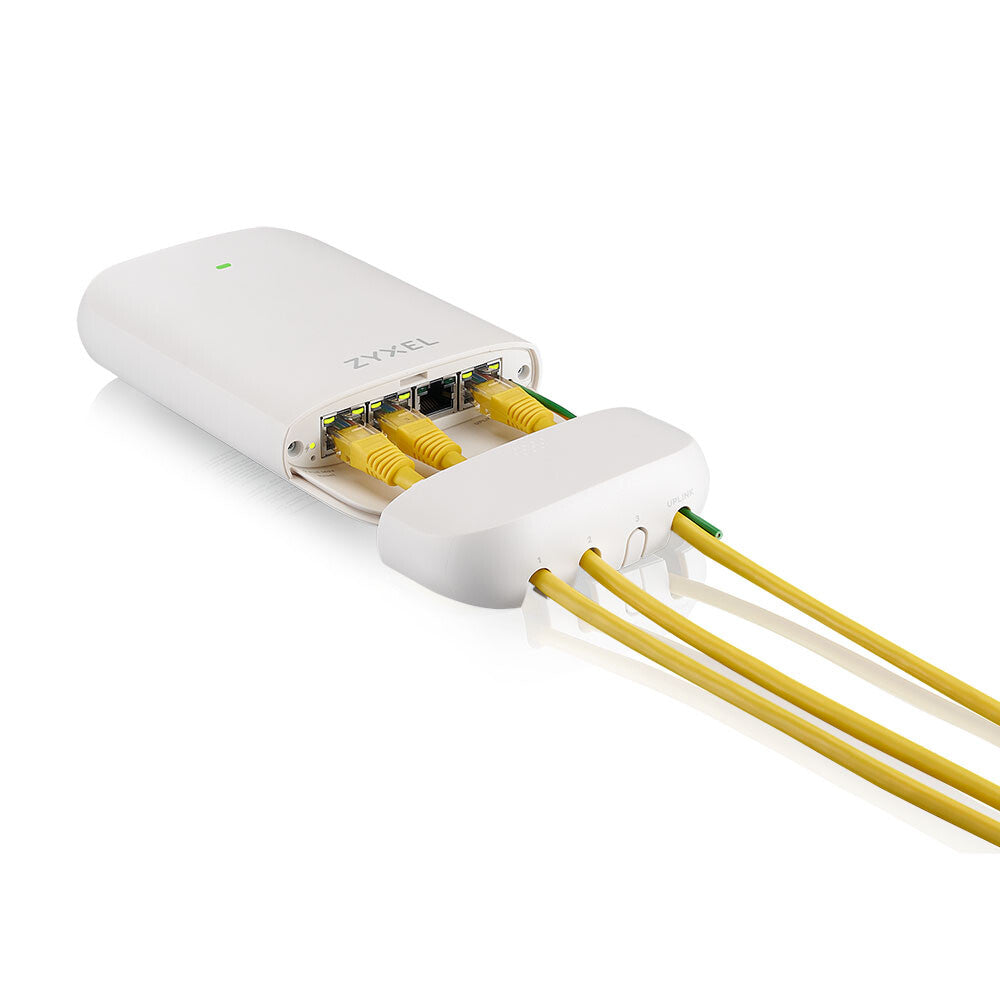

power source or connection to a PoE Switch. It features four RJ-45 Gigabit
Ethernet ports, offering one (1) PoE++ PoE input port with up to 60W power
input and three PoE output to your devices. Instead of connecting to an AC
adapter, connecting via a PoE switch enables better visibility for network
management to cover the edge of your network. It features three PoE+ ports
to power a variety of PoE devices, including IP cameras, VoIP handsets, IoT
device, Sensors, PoE switches and wireless access points. PoE12-3PD is good
for residential and commercial network environment
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Network | |
|---|---|
| Compliance industry standards | • IEEE802.3 10Base-T Ethernet• IEEE 802.3u 100Base-Tx Ethernet• IEEE 802.3ab 1000Base-T Ethernet• IEEE 802.3z 1000 Base-X• IEEE 802.3x flow control• IEEE 802.3af PoE• IEEE 802.3at PoE plus• IEEE 802.3bt (60 W) PoE over 4 pair |
| Supported network protocols | ip |
| Duplex system | Full |
| Web-based management | Yes |
| Networking standards | IEEE 802.3at, IEEE 802.3bt |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e |
| Firmware upgradeable | Yes |
| Syslog | No |
| Forwarding rate | 8000 Mpps |
| MAC address table | 2000 entries |
| Packet buffer memory | 128 MB |
| Transmission method | tcp |
| Power over Ethernet (PoE) | Yes |
| Cabling technology | 10/100/1000 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -4 - 122 °F |
| Weight & dimensions | |
|---|---|
| Weight | 257 g |
| Height | 36 mm |
| Depth | 99 mm |
| Width | 180 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package volume | 1257 cm³ |
| Package weight | 114 g |
| Package depth | 47 mm |
| Package width | 125 mm |
| Package length | 21.4 cm |
| Packaging content | |
|---|---|
| Packaging content | • PoE extender• Safety warning and doc |
| Manual | No |
| Quick installation guide | Yes |
| Power cord included | No |
| AC adapter included | No |
| Number of products included | 24 pc(s) |
| Wall mounting kit | Yes |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS |
| Warranty period | 2 year(s) |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 9.56 kg |
| Master (outer) case height | 247 mm |
| Master (outer) case length | 391 mm |
| Master (outer) case width | 370 mm |
| Master (outer) cases per pallet (air) | 42 pc(s) |
| Products per pallet (air) | 1008 pc(s) |
| Pallet gross length | 122 cm |
| Pallet gross width | 104 cm |
| Pallet height (air) | 186.3 cm |
| Pallet gross weight (sea) | 43.2 kg |
| Master (outer) cases per pallet (sea) | 42 pc(s) |
| Products per pallet (sea) | 1008 pc(s) |
| Pallet height (sea) | 186.3 cm |
| Shipping (inner) case gross weight | 43.2 kg |
| Customs product code (TARIC) | 85176200 |
