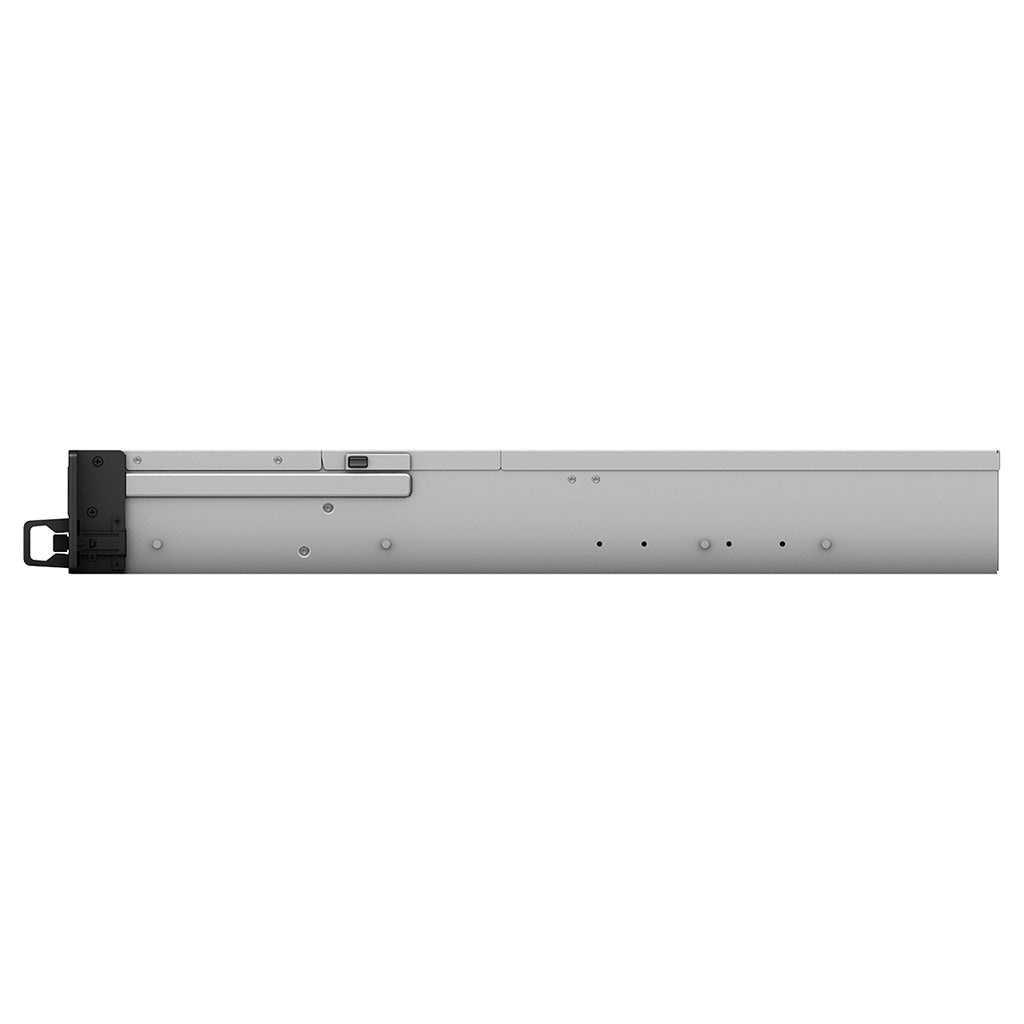

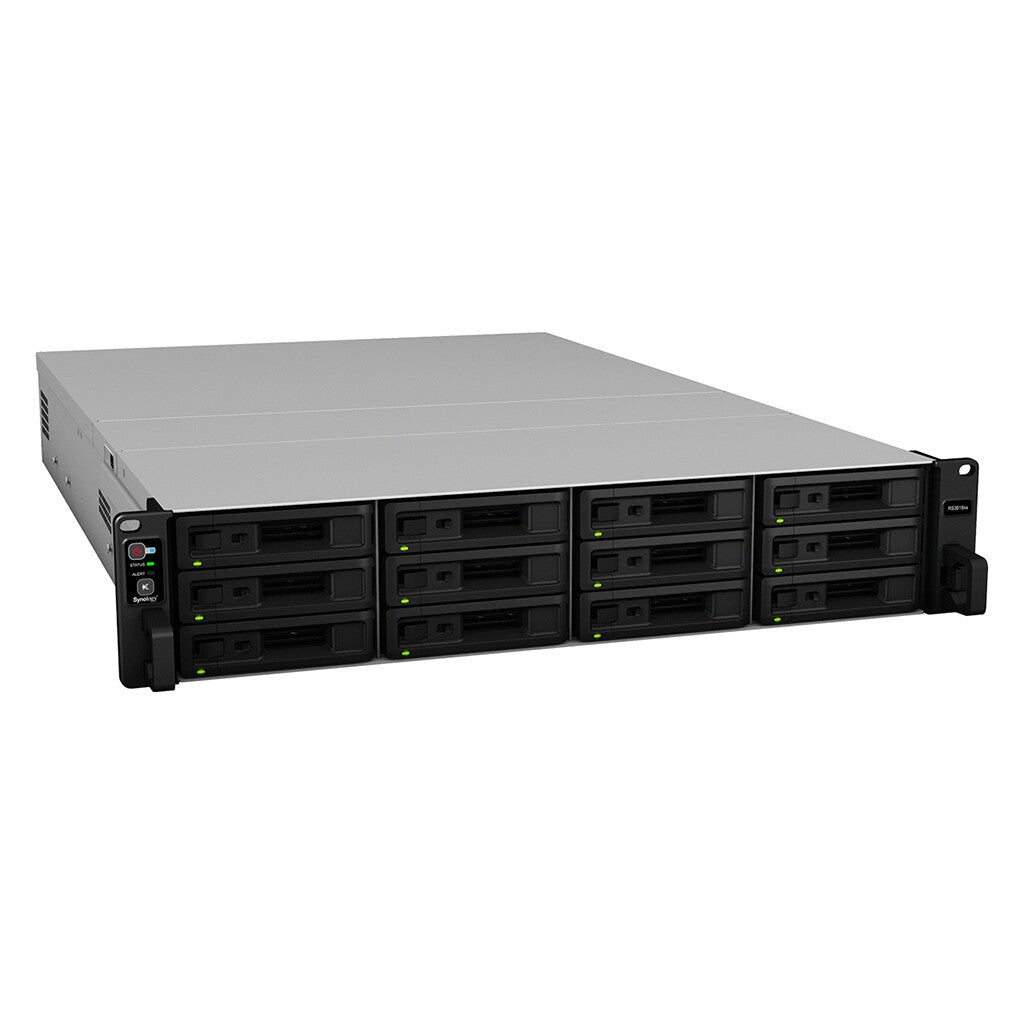

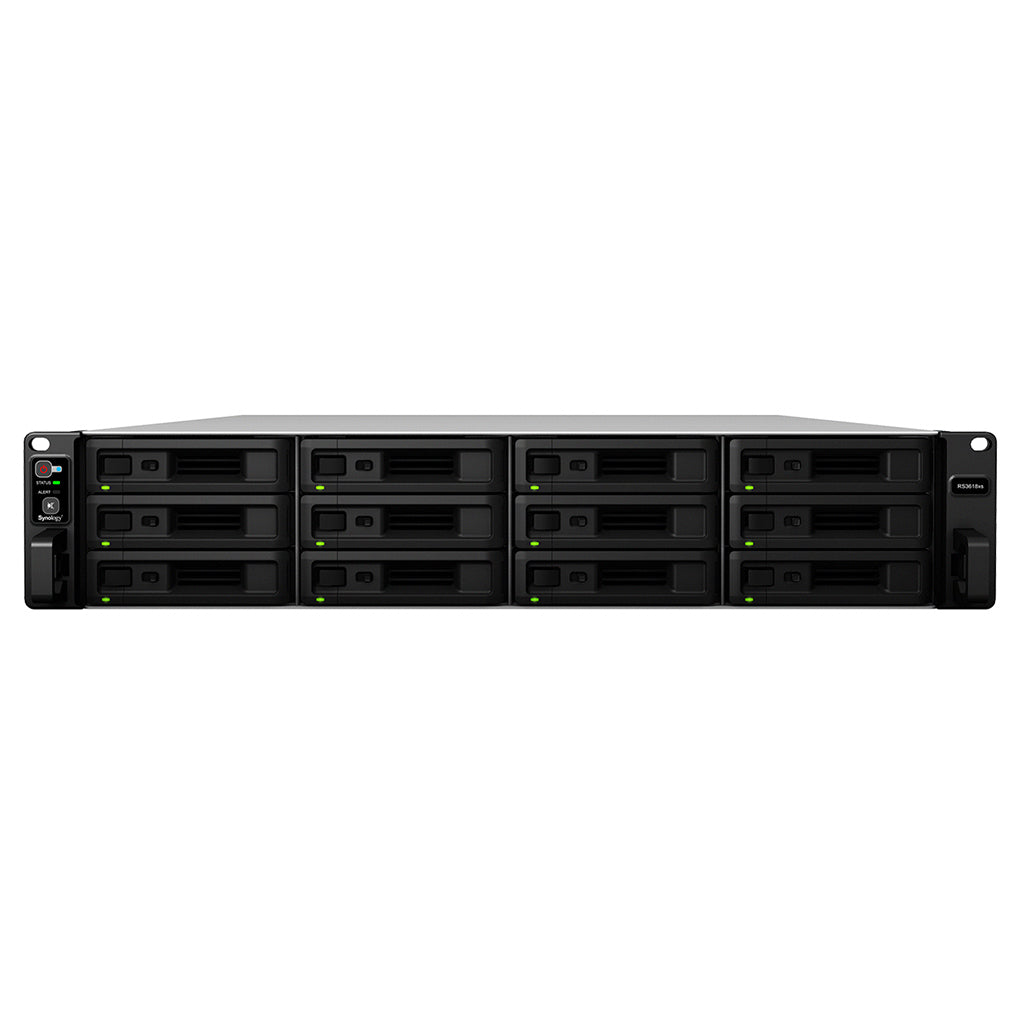

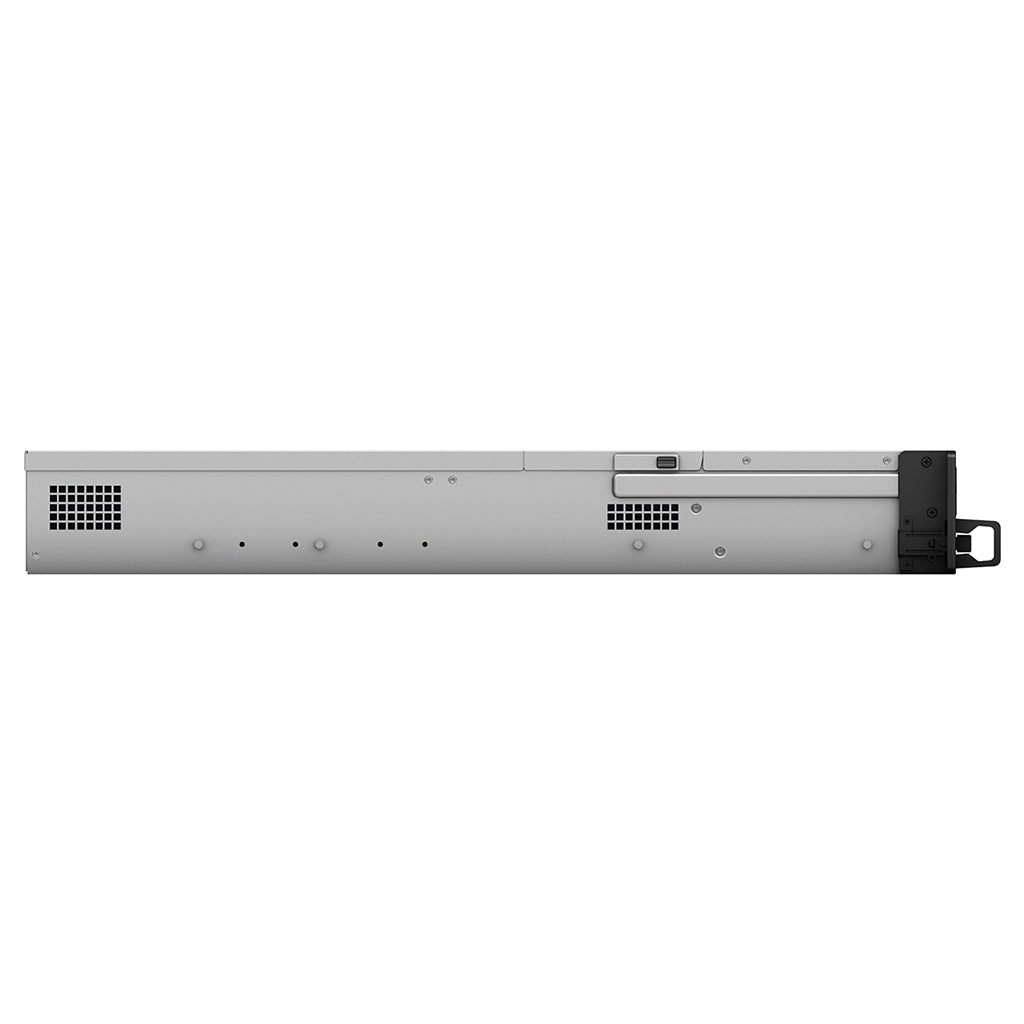

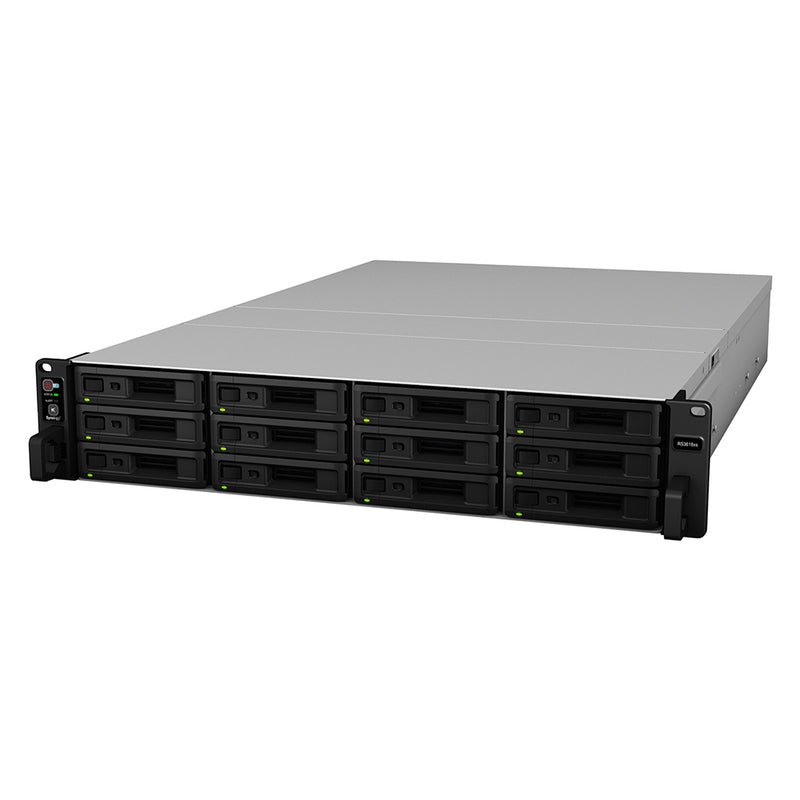

Synology RackStation RS3618xs NAS Rack (2U) Ethernet LAN Black D-1521
KEY FEATURES
- Quad-core up to 2.7GHz
- 8GB DDR4 ECC UDIMM, up to 64GB
- 4 x 1GbE port, optional 10GbE NIC support
- Up to 36 drives with RX1217/RX1217RP
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Synology RackStation RS3618xs NAS Rack (2U) Ethernet LAN Black D-1521
Description
Synology RackStation RS3618xs. Total installed storage capacity: 192 TB, Installed storage drive type: HDD, Supported storage drive types: HDD & SSD. Processor family: Intel® Xeon® D, Processor manufacturer: Intel, Processor model: D-1521. Internal memory: 8 GB, Internal memory type: DDR4, Memory clock speed: 2133 MHz. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN). Chassis type: Rack (2U), Cooling type: Active, Product colour: Black
High-speed scalable storage server
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
Ready for 10GbE and beyond
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
Ultimate Backup Solution
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Active Backup for Office 365 / G Suite
Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File or folder level data restoration makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention
Powered by Synology DSM
Central Management System
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Snapshot Replication
Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for disaster prevention.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Synology Drive
A versatile solution for file management and synchronization.
Warranty: 5 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Storage | |
|---|---|
| Supported file systems | Fat, HFS+, NTFS, ext3, ext4 |
| Hot-swap drive bays | Yes |
| Online RAID expansion | Yes |
| Online RAID migration | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| RAID support | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive interface | Serial ATA III |
| Storage drive capacity | 16 TB |
| Supported storage drive types | HDD & SSD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 12 |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 192 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| CPU configuration (max) | 1 |
| Processor cache | 6 MB |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 2.4 GHz |
| Processor model | D-1521 |
| Processor family | Intel® Xeon® D |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 4 |
| Maximum RAM supported | 64 GB |
| Memory clock speed | 2133 MHz |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Network | |
|---|---|
| Supported network protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
| Link aggregation | Yes |
| Wake-on-LAN ready | Yes |
| iSCSI support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |

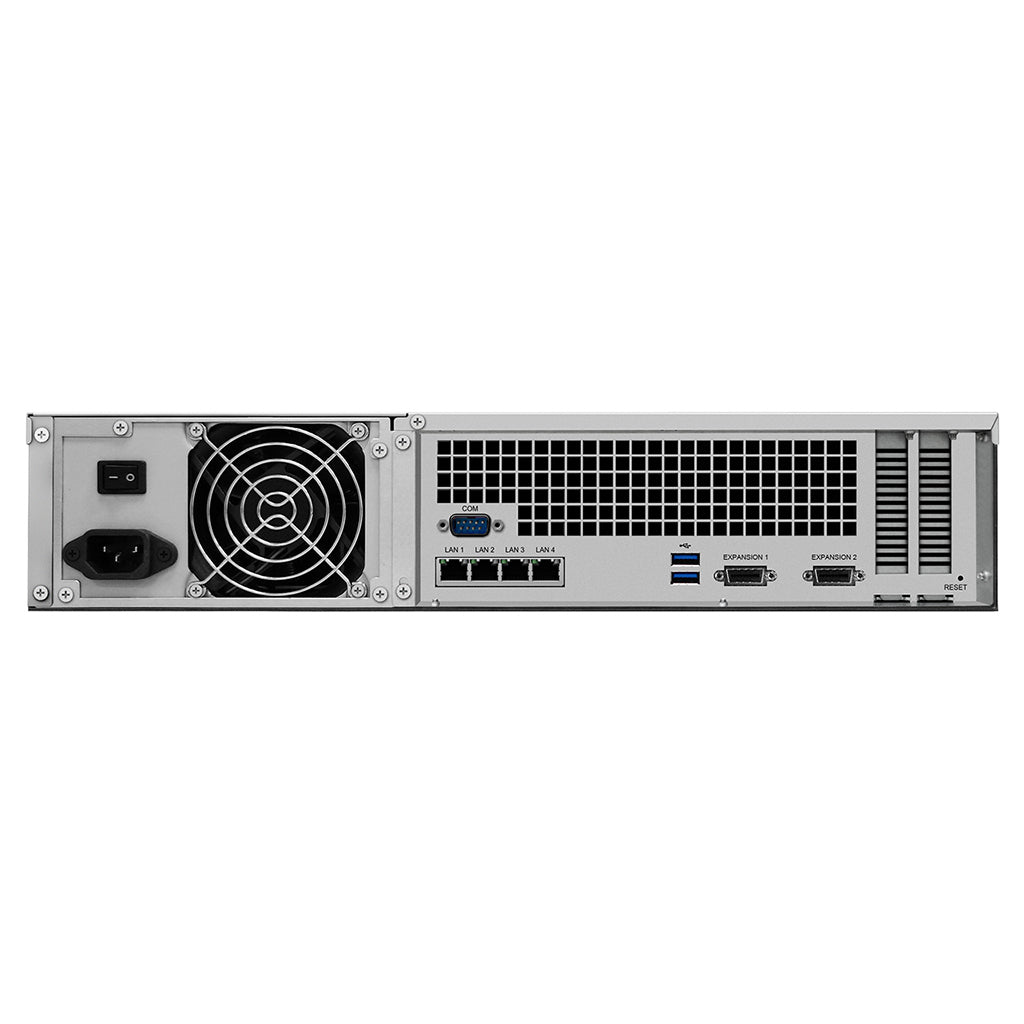

| Ports & interfaces | |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| LED indicators | Yes |
| Fan diameter | 8 cm |
| Number of fans | 4 fan(s) |
| Product colour | Black |
| Cooling type | Active |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Share folder | CIFS, AFP, FTP |
| Built-in UPnP AV media server | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| System log | Yes |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Web-based management | Yes |
| Noise level | 50.2 dB |
| Number of users | 16000 user(s) |
| Multilingual support | Yes |
| Backup features | Cloud, iSCSI LUN |
| Backup function | Yes |
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Windows operating systems supported | Windows 10, Windows 7 |
| Operating system installed | DiskStation Manager |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (HDD standby) | 55.05 W |
| Power consumption (typical) | 142.76 W |
| Number of power supply units | 1 |
| Power supply unit (PSU) capacity | 500 W |
| Power supply location | Built-in |
| Weight & dimensions | |
|---|---|
| Height | 88 mm |
| Depth | 724 mm |
| Width | 482 mm |
| General Information | |
|---|---|
| Product Family | RackStation |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84714100 |
| Sustainability compliance | Yes |
| Processor special features | |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Packaging content | |
|---|---|
| Cables included | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 5000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EAC, VCCI, CCC, RCM, FCC, CE, BSMI |
