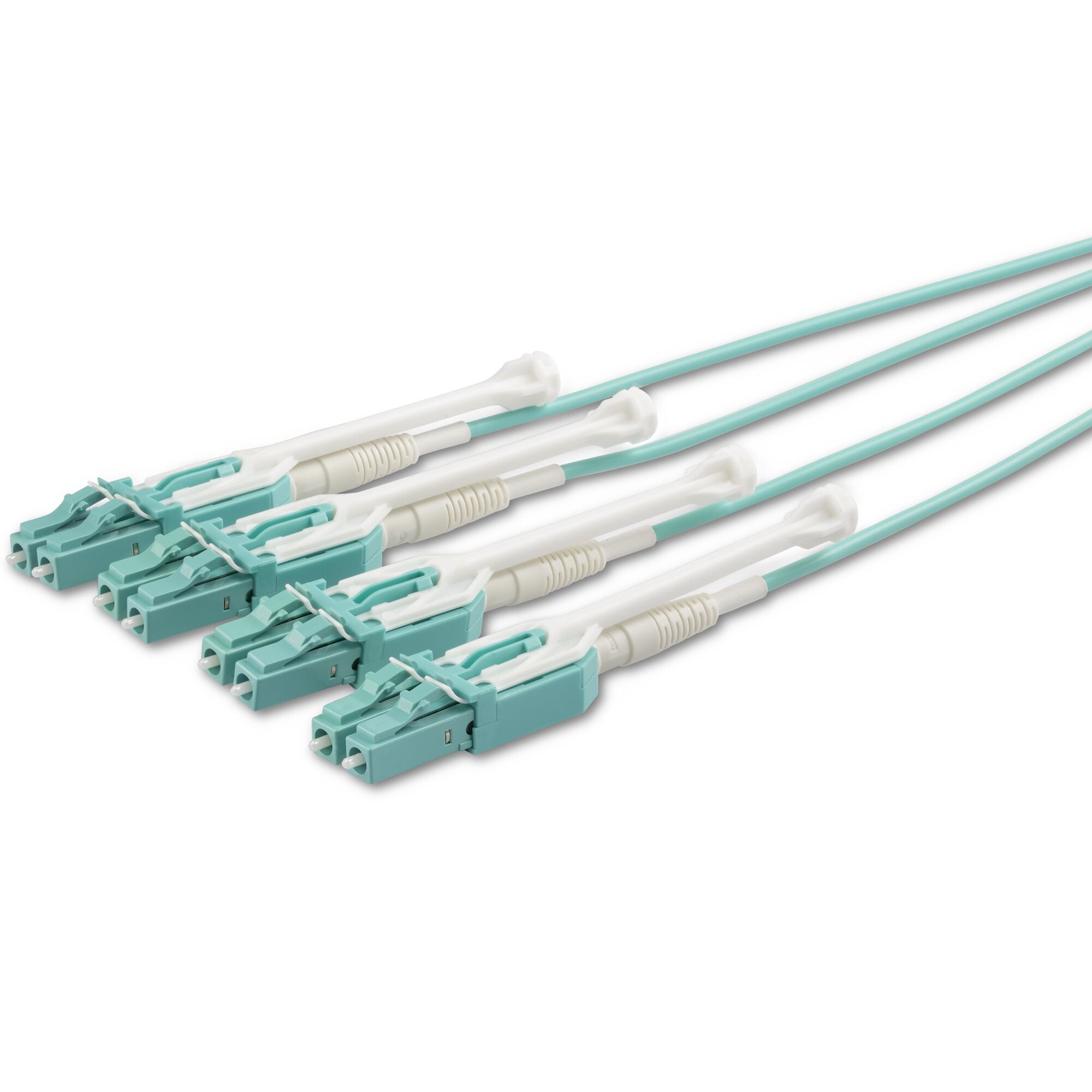

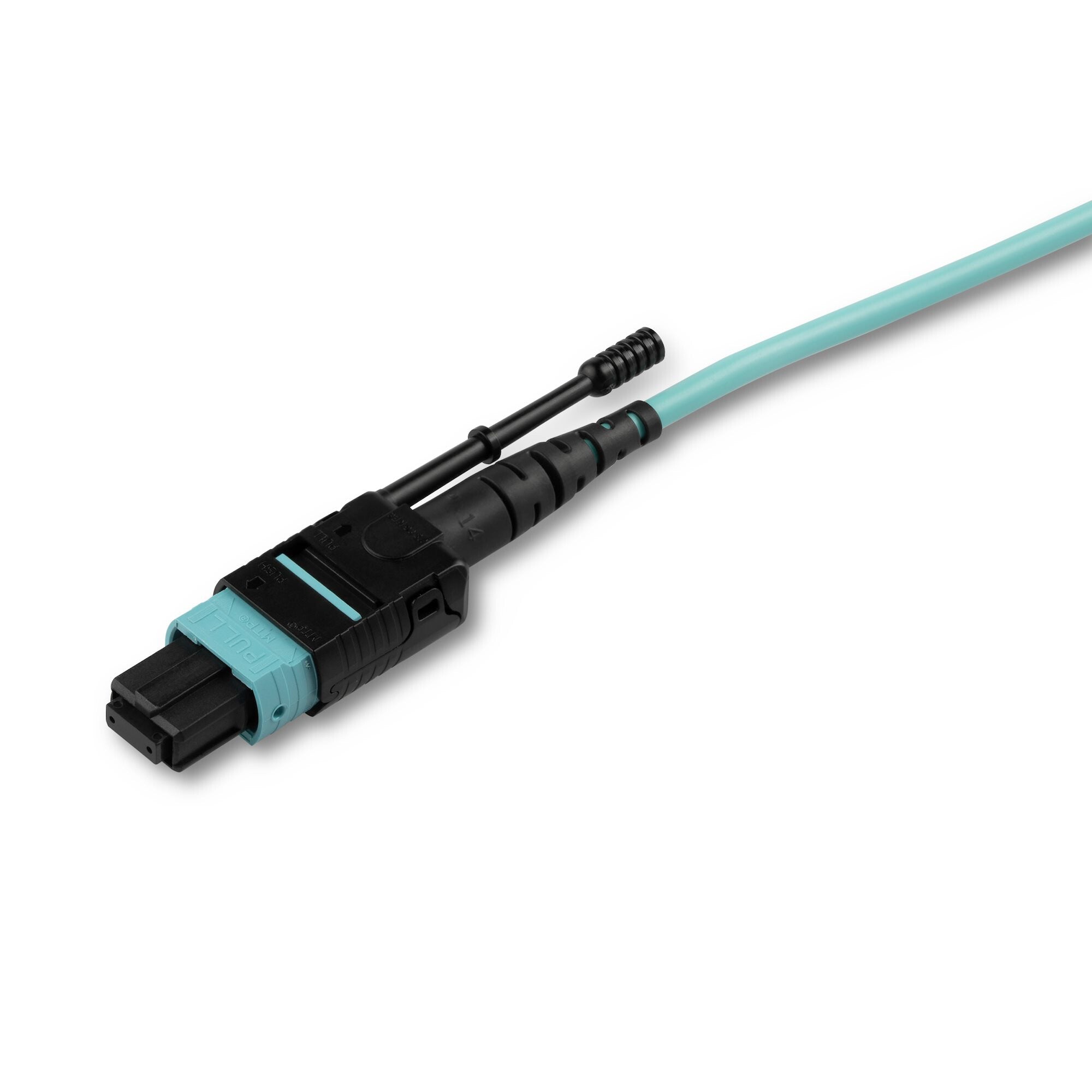

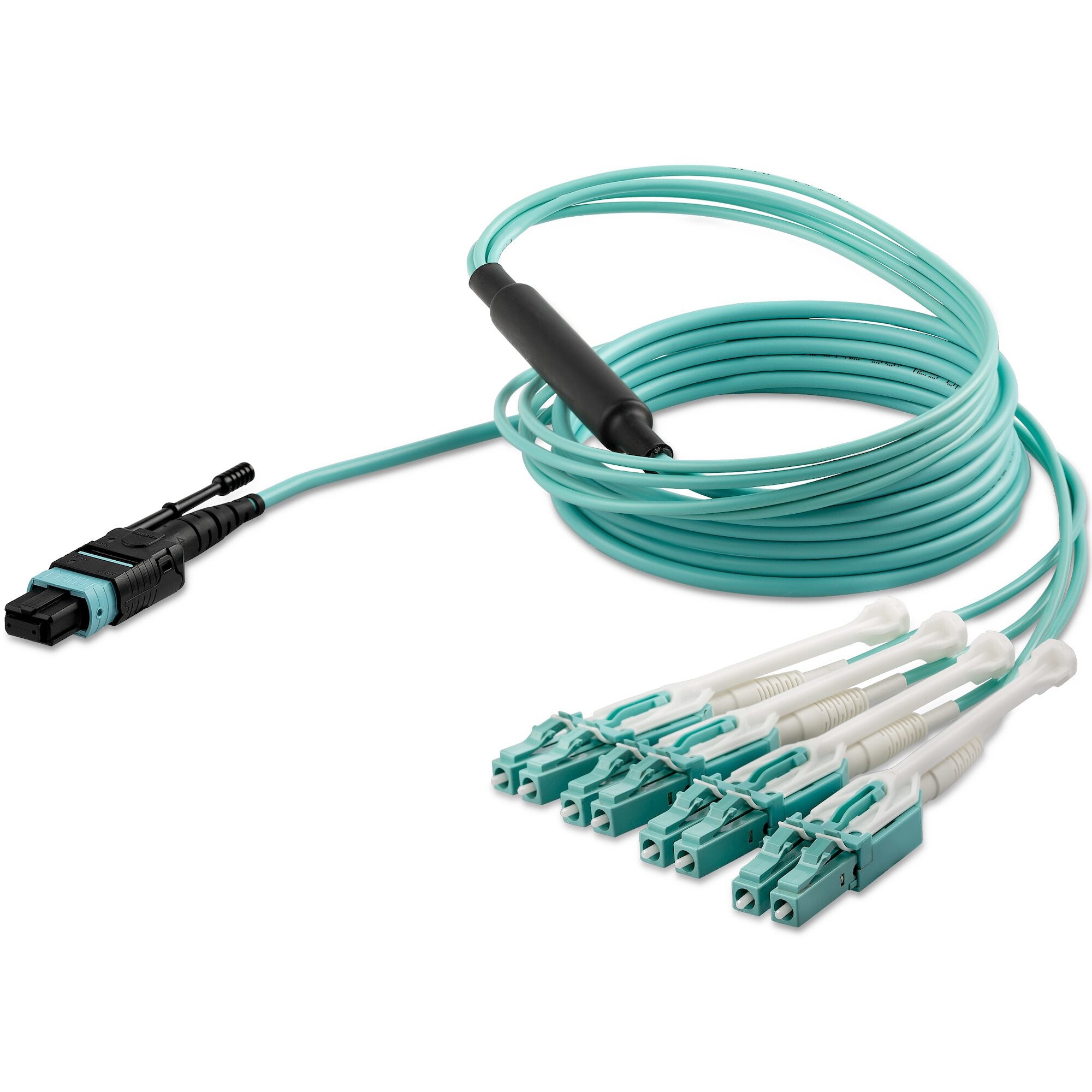

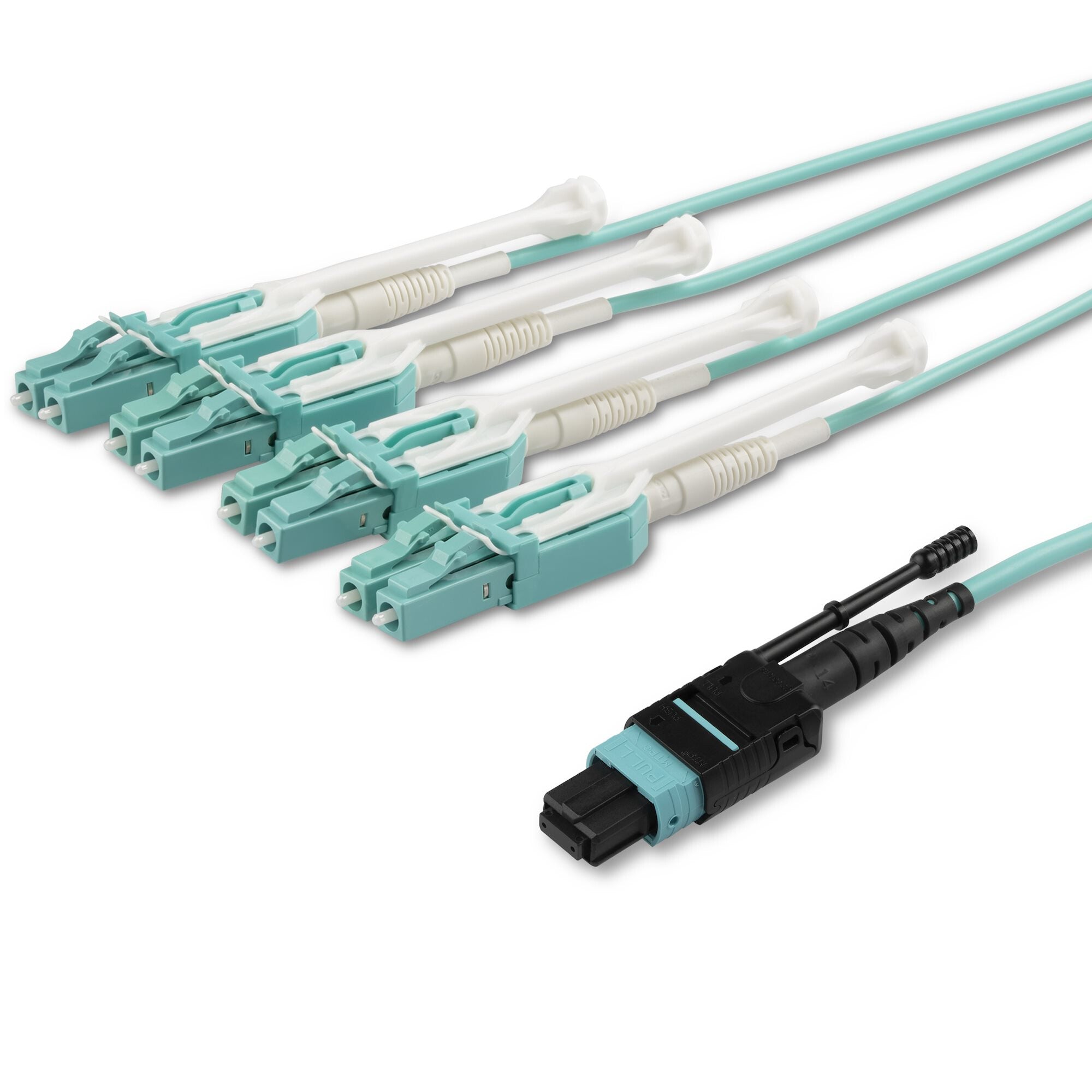

StarTech.com 2m (6ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 8F Type-A, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO to LC Fiber Patch Cord
KEY FEATURES
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 2m (6.6ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ≤0.5dB (MTP), ≤0.2dB (LC)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech.com 2m (6ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 8F Type-A, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO to LC Fiber Patch Cord
Description
StarTech.com 2m (6ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 8F Type-A, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO to LC Fiber Patch Cord. Cable length: 2 m, Fibre optic type: OM3, Connector 1: MPO/MTP, Connector 2: 8x LC, Core diameter: 50 µm

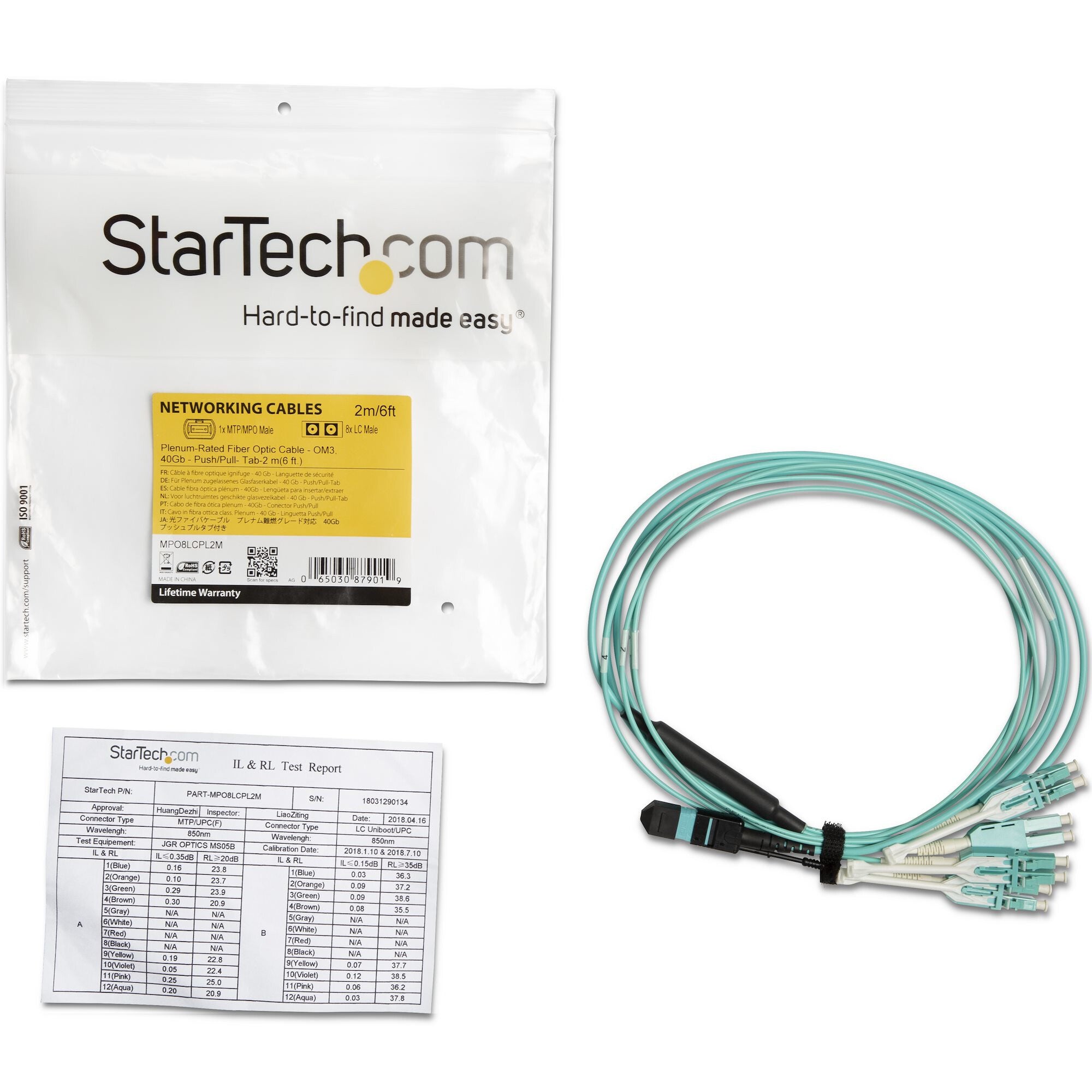

Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.The MPO8LCPL2M from StarTech.com is backed by a lifetime warranty.The StarTech.com Advantage
Warranty: Lifetime
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| Harmonized System (HS) code | 85447000 |
| Data transfer rate | 40 Gbit/s |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 50 µm |
| Product colour | Aqua colour |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | 8x LC |
| Connector 1 | MPO/MTP |
| Fibre optic type | OM3 |
| Cable length | 2 m |
| Technical details | |
|---|---|
| Sustainability certificates | RoHS, CE |
| Compliance certificates | RoHS, CE |
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | -10 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 47.8 g |
| Packaging data | |
|---|---|
| Package weight | 54 g |
| Package height | 10 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case height | 190 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case width | 235 mm |
