Kingston Technology ValueRAM KVR26S19S6/4 memory module 4 GB 1 x 4 GB DDR4 2666 MHz
KEY FEATURES
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Kingston Technology ValueRAM KVR26S19S6/4 memory module 4 GB 1 x 4 GB DDR4 2666 MHz
Description
Kingston Technology ValueRAM KVR26S19S6/4. Component for: Laptop, Internal memory: 4 GB, Memory layout (modules x size): 1 x 4 GB, Internal memory type: DDR4, Memory clock speed: 2666 MHz, Memory form factor: 260-pin SO-DIMM, CAS latency: 19

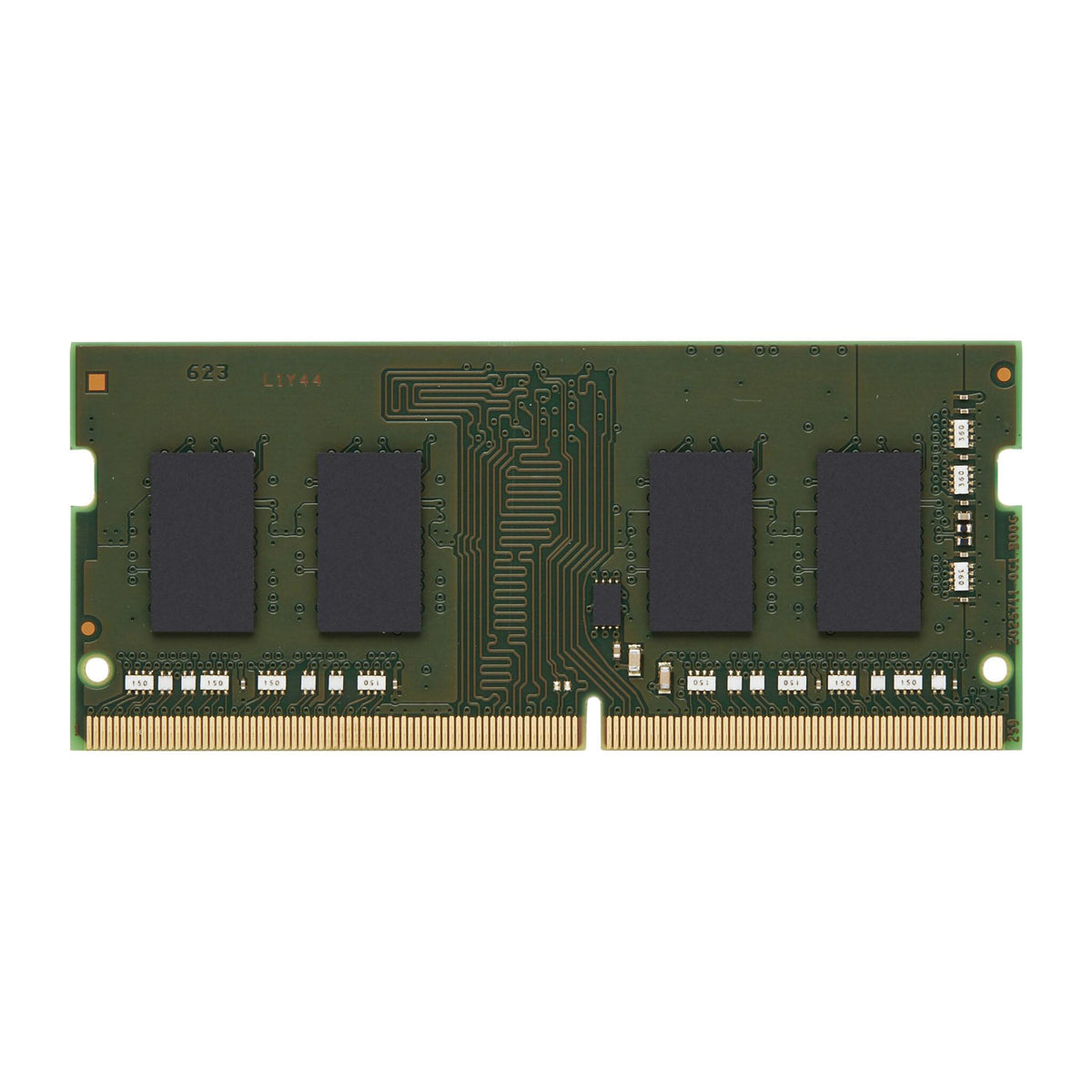

This document describes ValueRAM's KVR26S19S6/4 as a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
Lifetime
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| Programming power voltage (VPP) | 2.5 V |
| Row active time | 32 ns |
| Refresh row cycle time | 350 ns |
| Row cycle time | 45.75 ns |
| Memory voltage | 1.2 V |
| Memory ranking | 1 |
| CAS latency | 19 |
| ECC | No |
| Memory form factor | 260-pin SO-DIMM |
| Component for | Laptop |
| Memory clock speed | 2666 MHz |
| Internal memory type | DDR4 |
| Memory layout (modules x size) | 1 x 4 GB |
| Internal memory | 4 GB |
| Buffered memory type | Unregistered (unbuffered) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
| Operating temperature (T-T) | 0 - 85 °C |
| General Information | |
|---|---|
| Product Family | ValueRAM |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
|---|---|
| Height | 30 mm |
| Depth | 2.45 mm |
| Width | 69.6 mm |
| Other features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Country of origin | Taiwan |
