Fractal Design Prisma AL-12 PWM 3P Computer case Fan 12 cm Black, White 1 pc(s)
KEY FEATURES

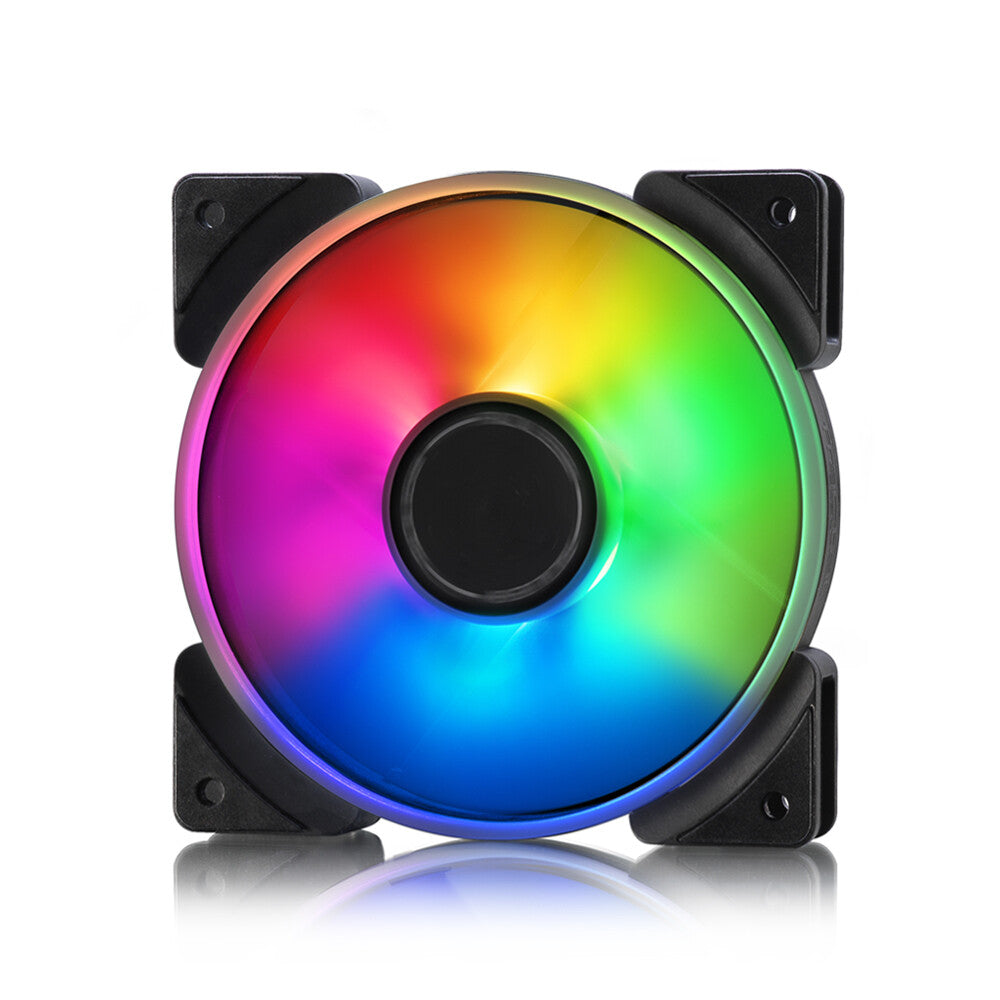

- Six individually addressable hub-mounted RGB LEDs

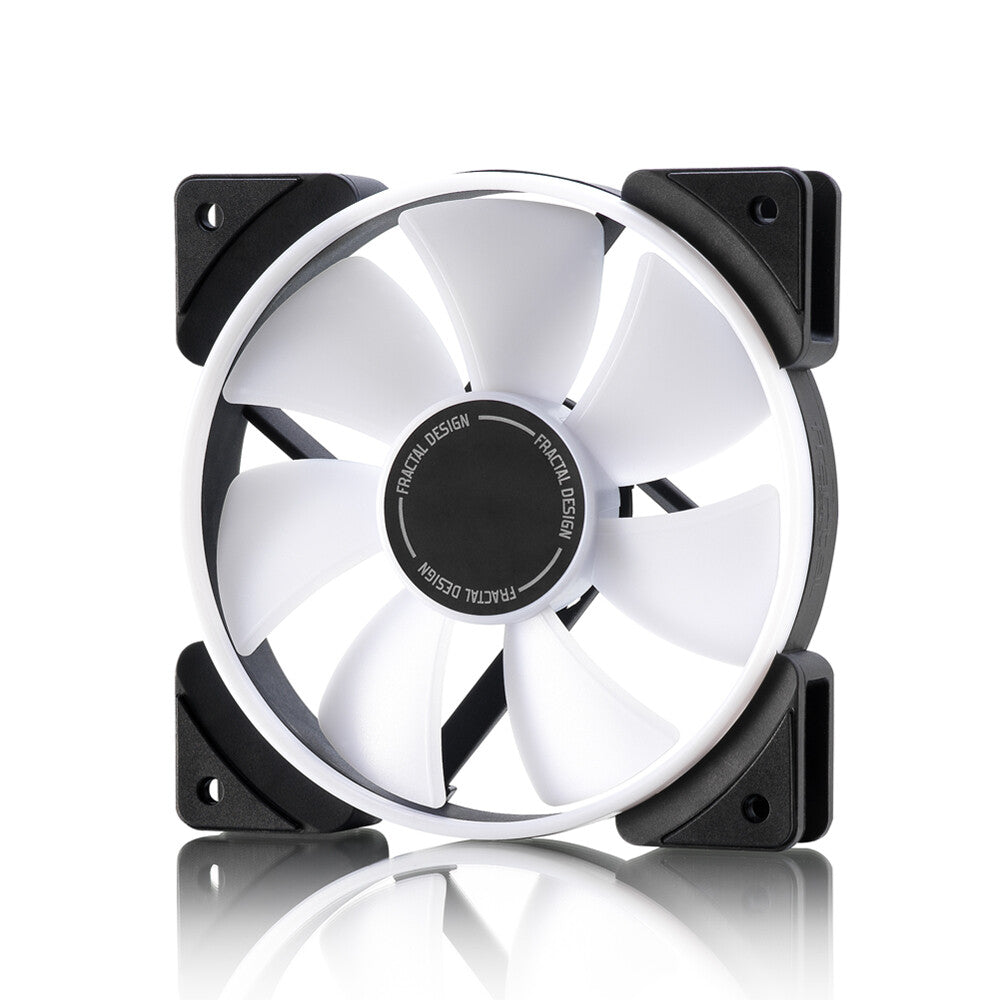

- Specially designed fan blades and outer ring produce an exceptionally uniform glow
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan

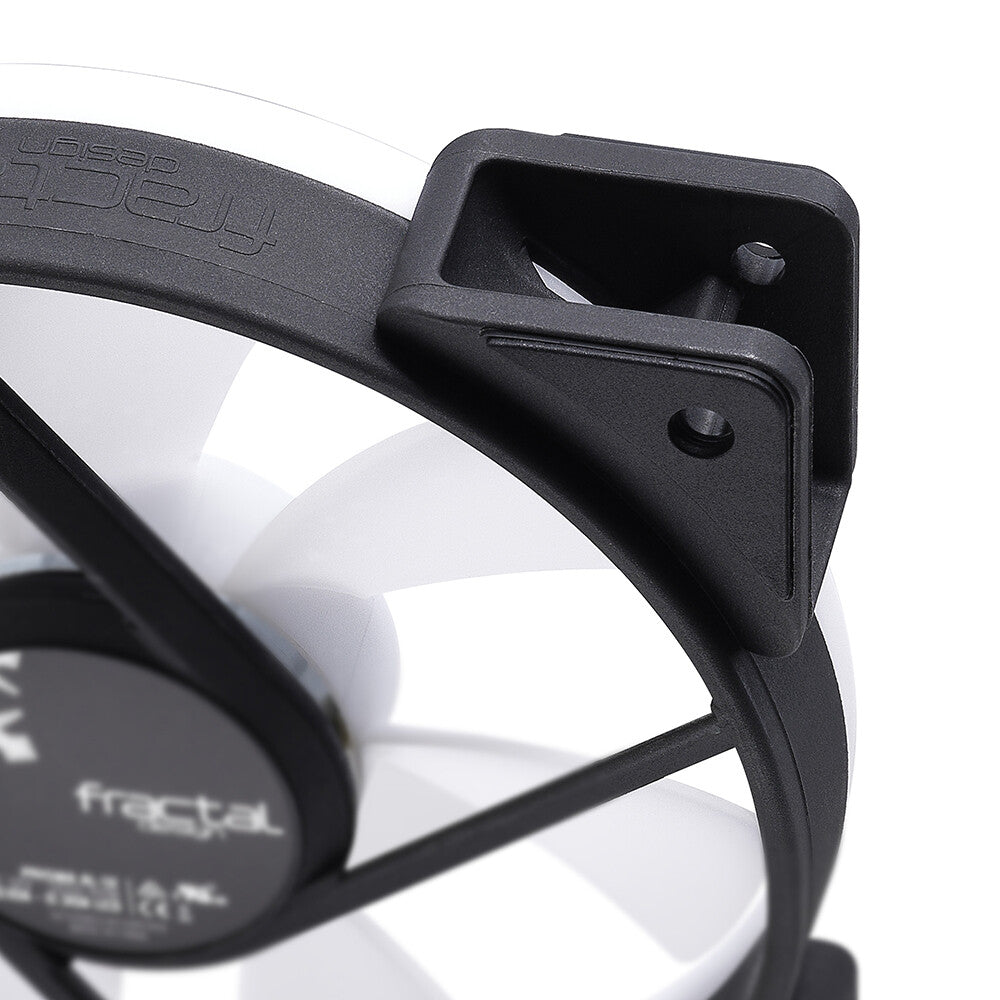

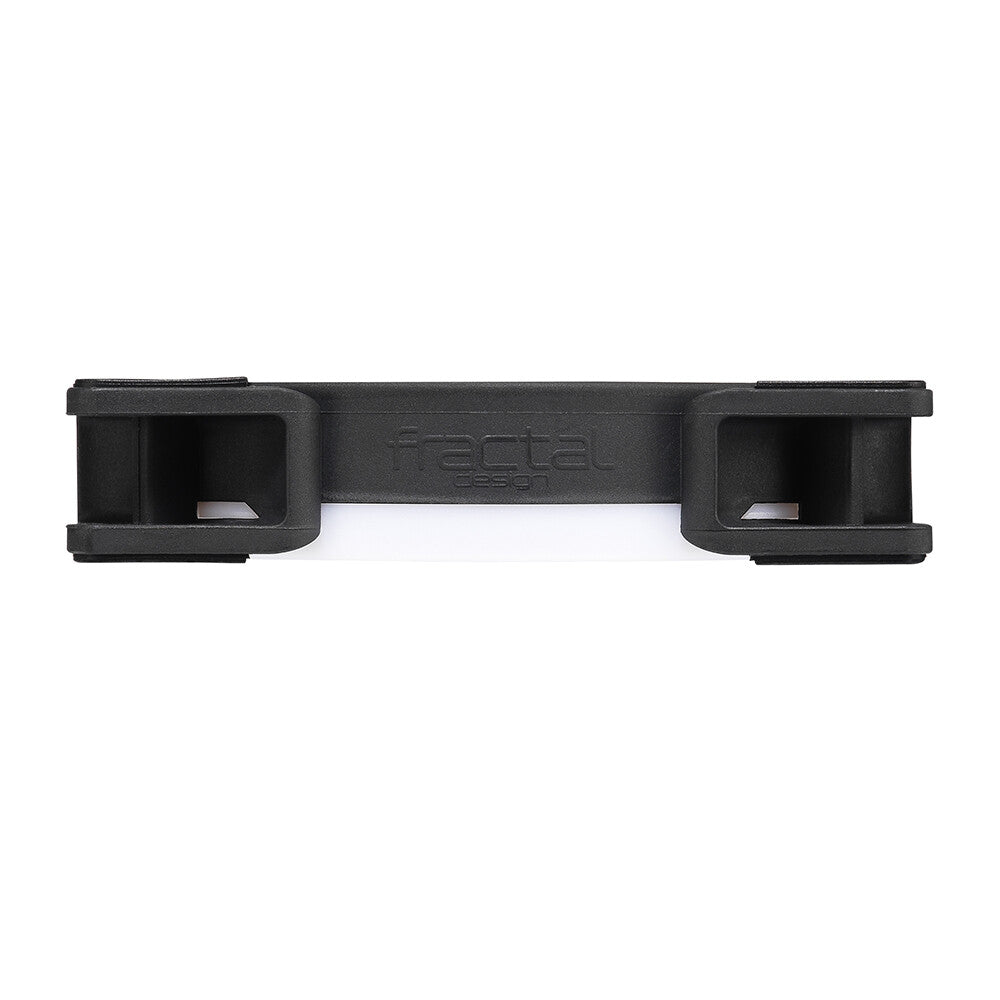

- Integrated vibration-damping corners made from high-quality synthetic rubber
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency

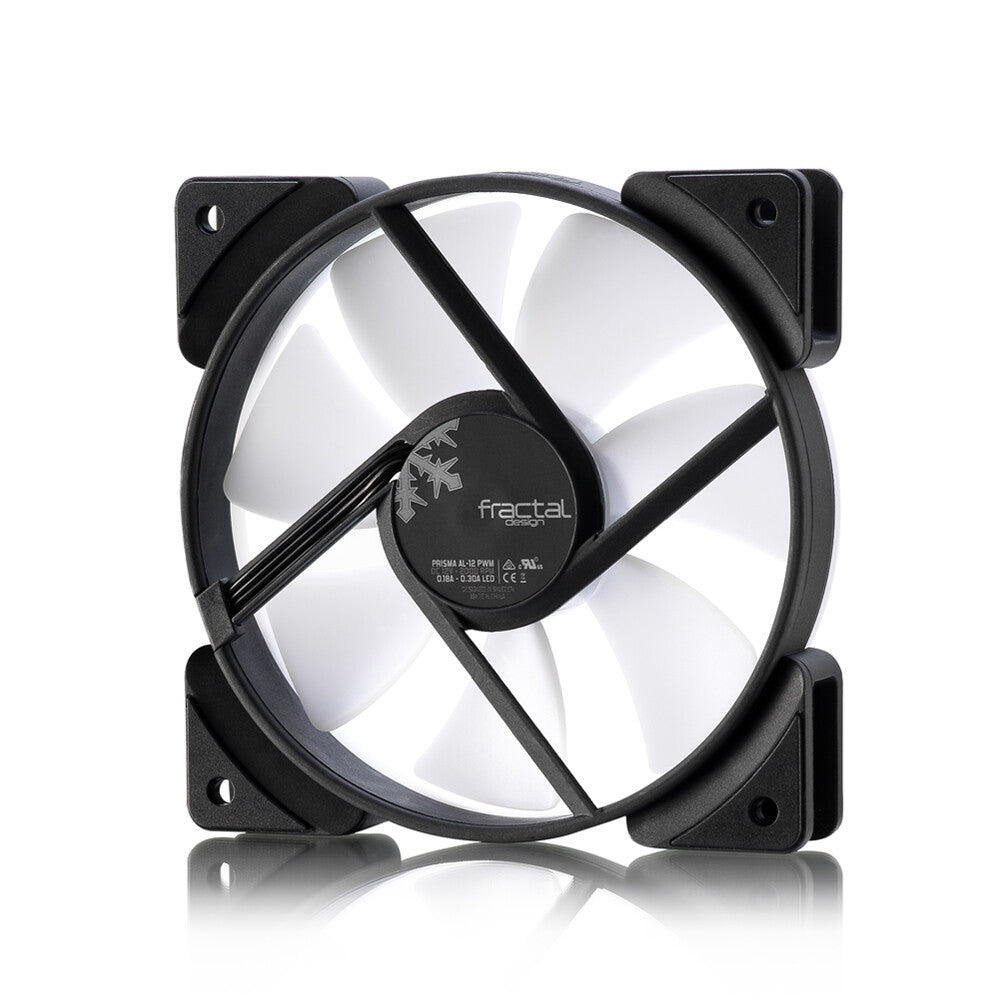

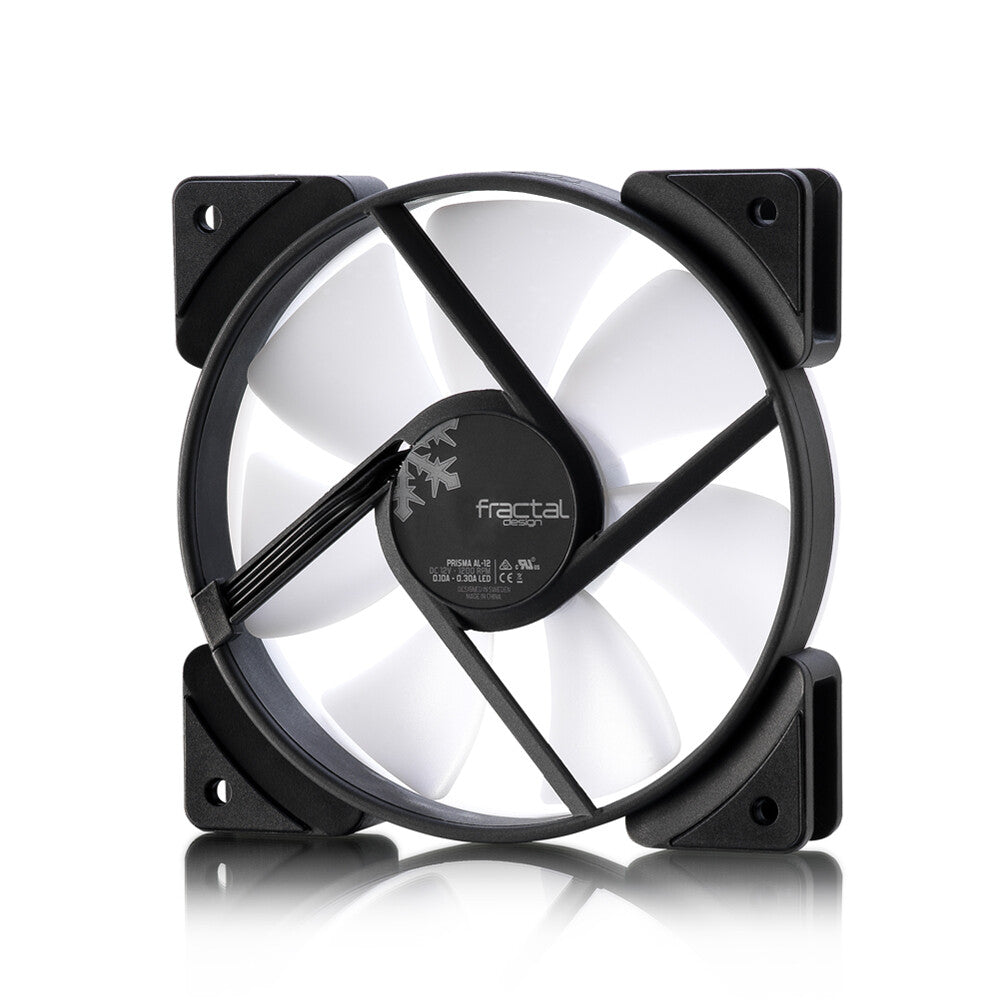

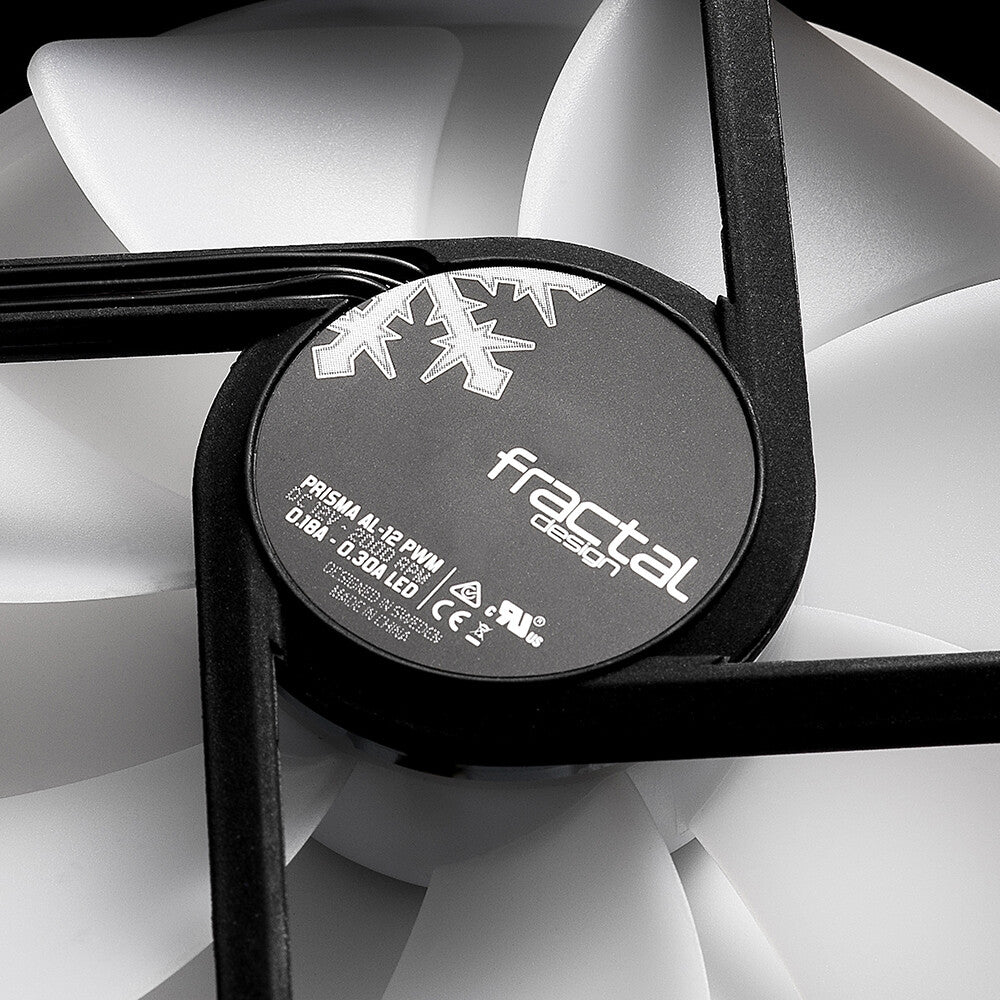

- Aerodynamic stator struts with embedded wiring reduce noise and turbulence

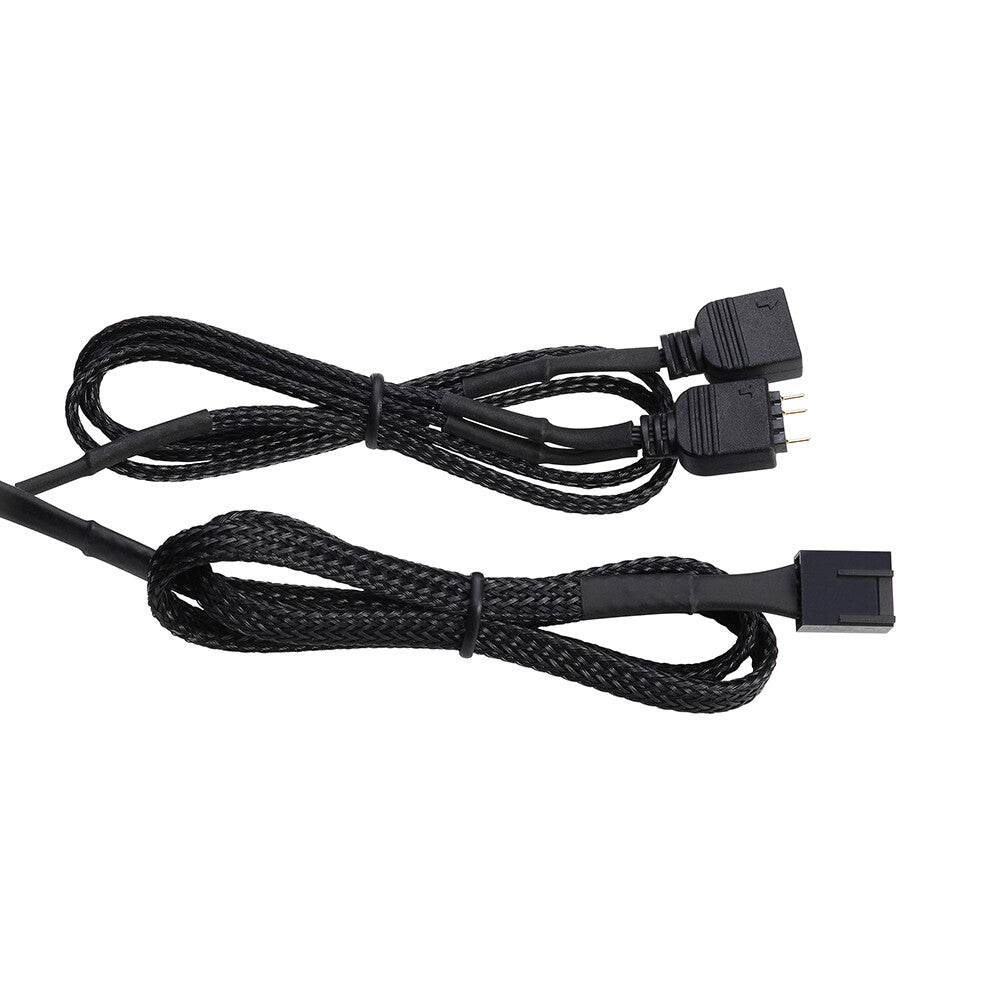

- Chainable RGB cables simplify wiring and make the most of available connections
- PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only)

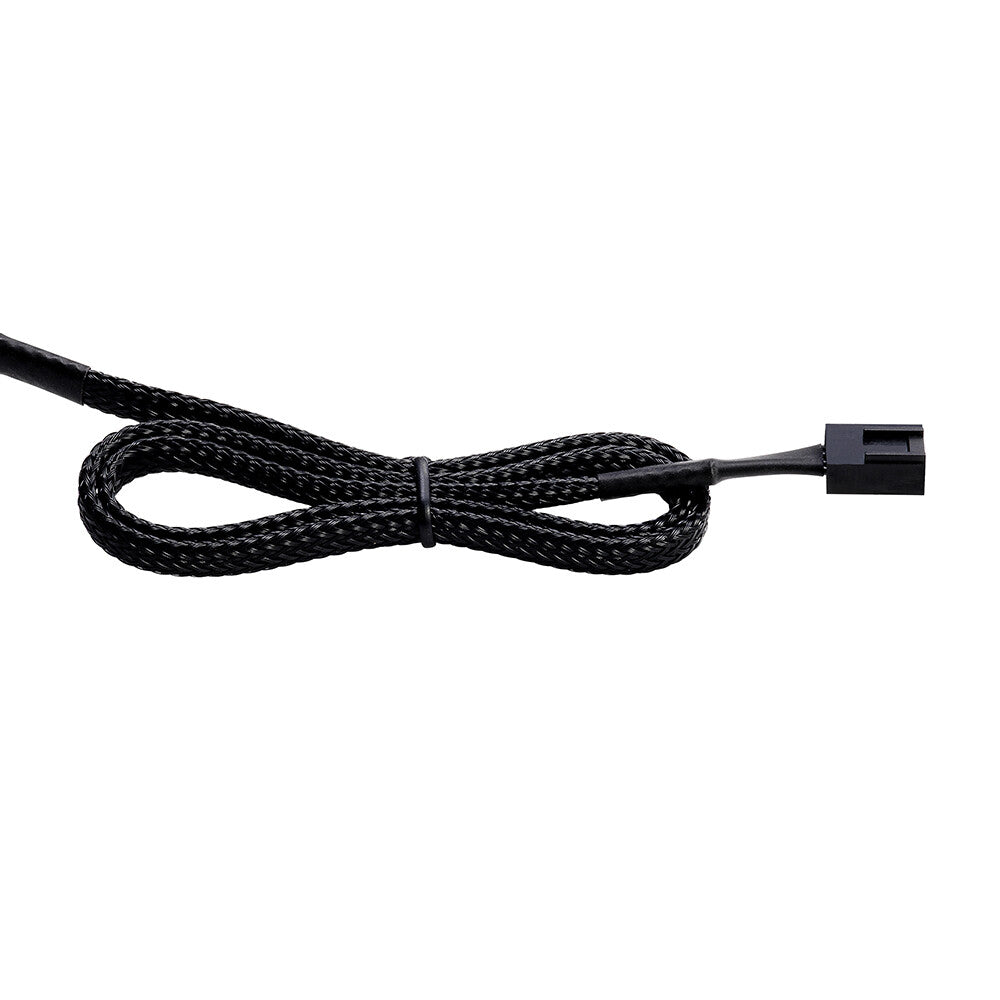

- Black sleeved power cables offer an extra touch of style
- Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
- 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Fractal Design Prisma AL-12 PWM 3P Computer case Fan 12 cm Black, White 1 pc(s)
Description
Fractal Design Prisma AL-12 PWM 3P. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Noise level (low speed): 14.8 dB, Noise level (high speed): 32.7 dB, Maximum airflow: 85.71 cfm, Airflow: 145.62 m³/h, Minimum air pressure: 0.36 mmH2O, Maximum air pressure: 2.78 mmH2O. Voltage: 12 V. Width: 120 mm, Depth: 25 mm, Height: 120 mm. Product colour: Black, White

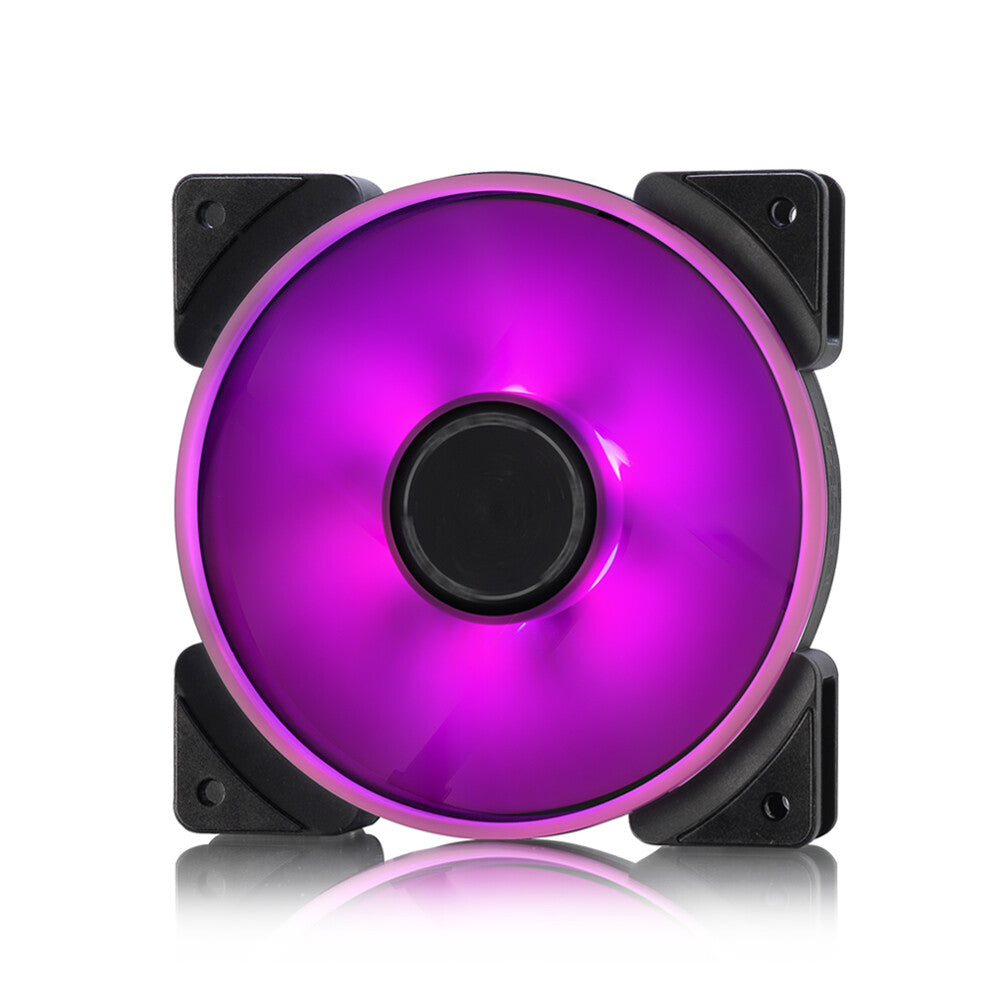

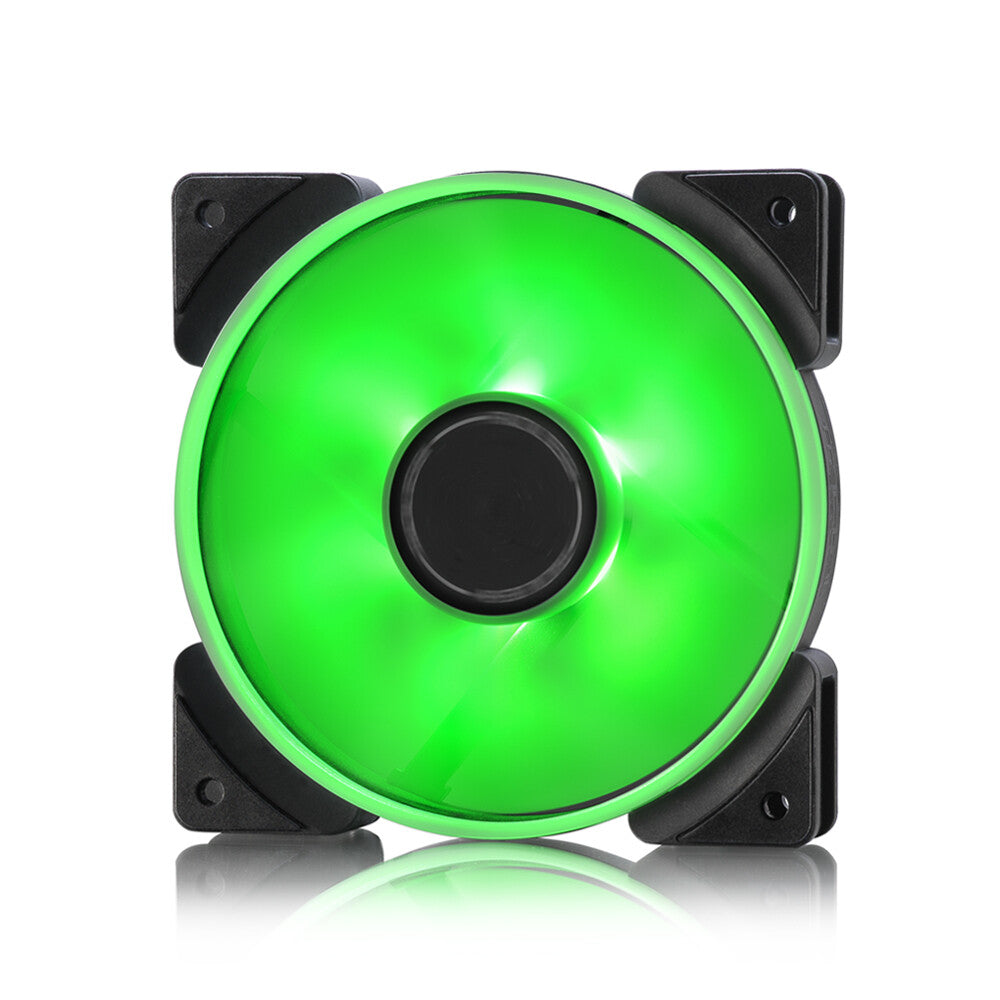

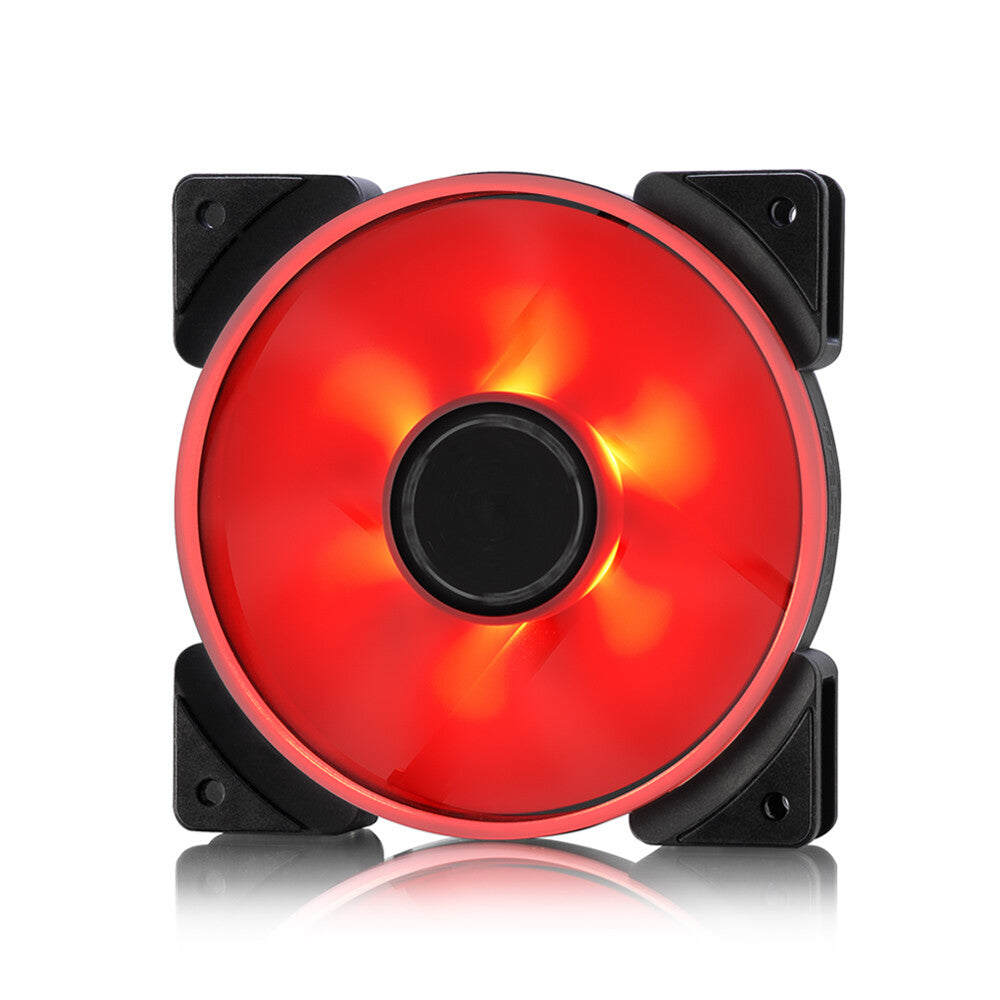

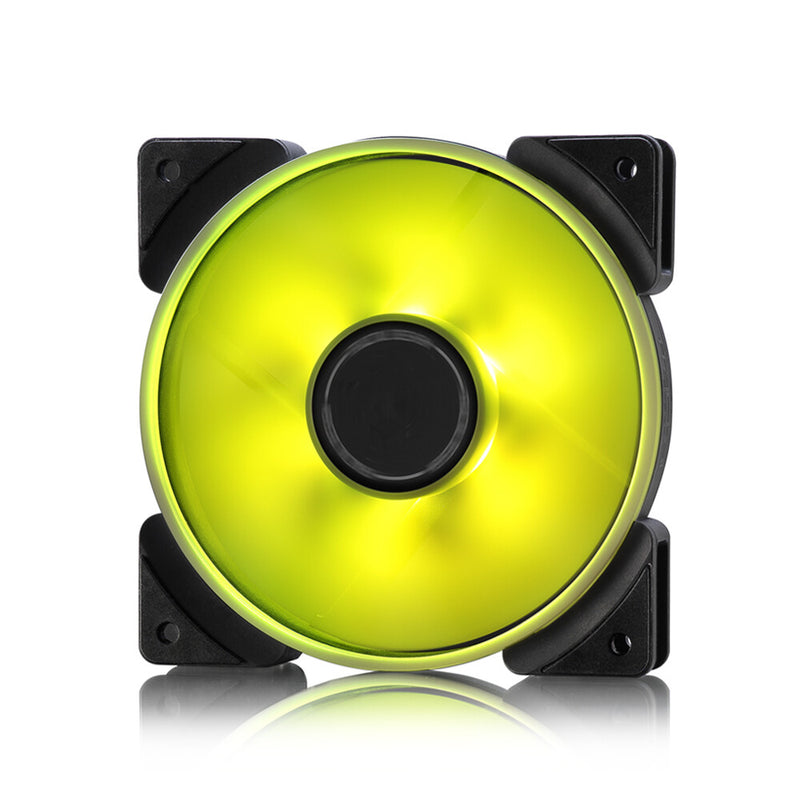

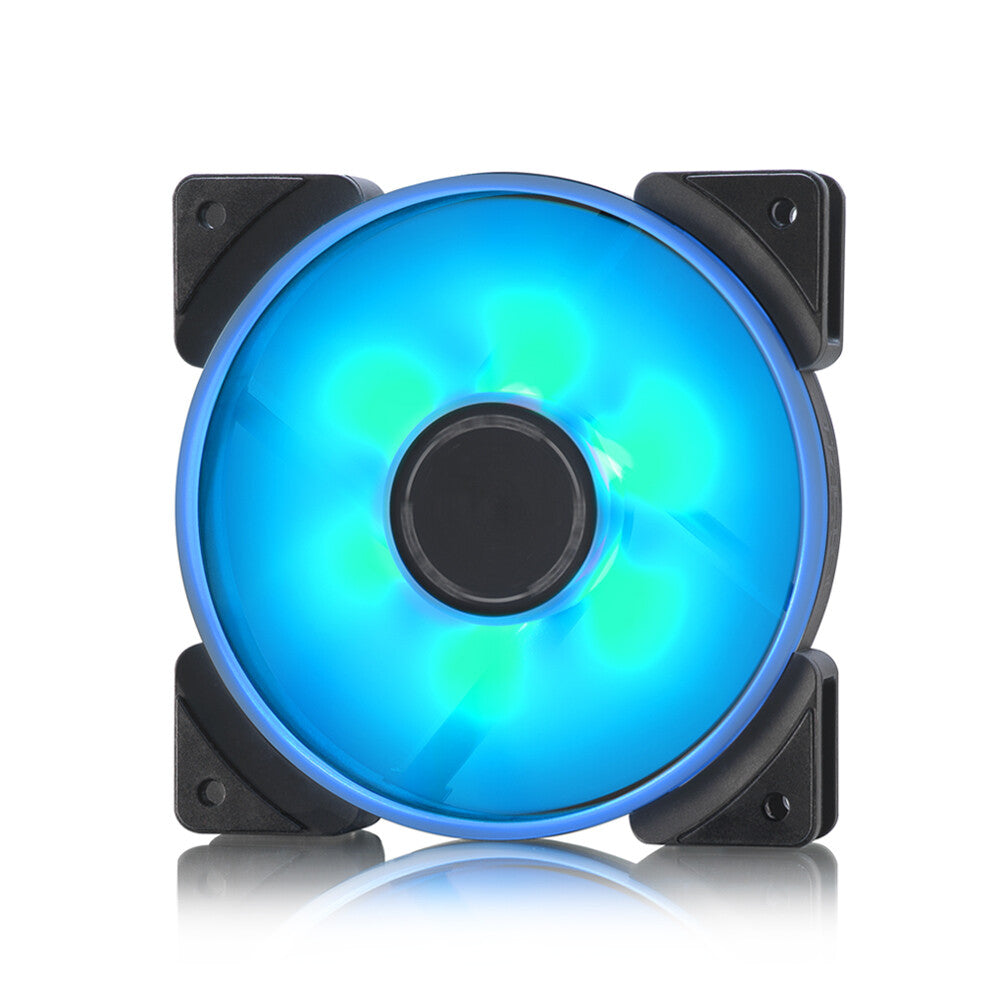

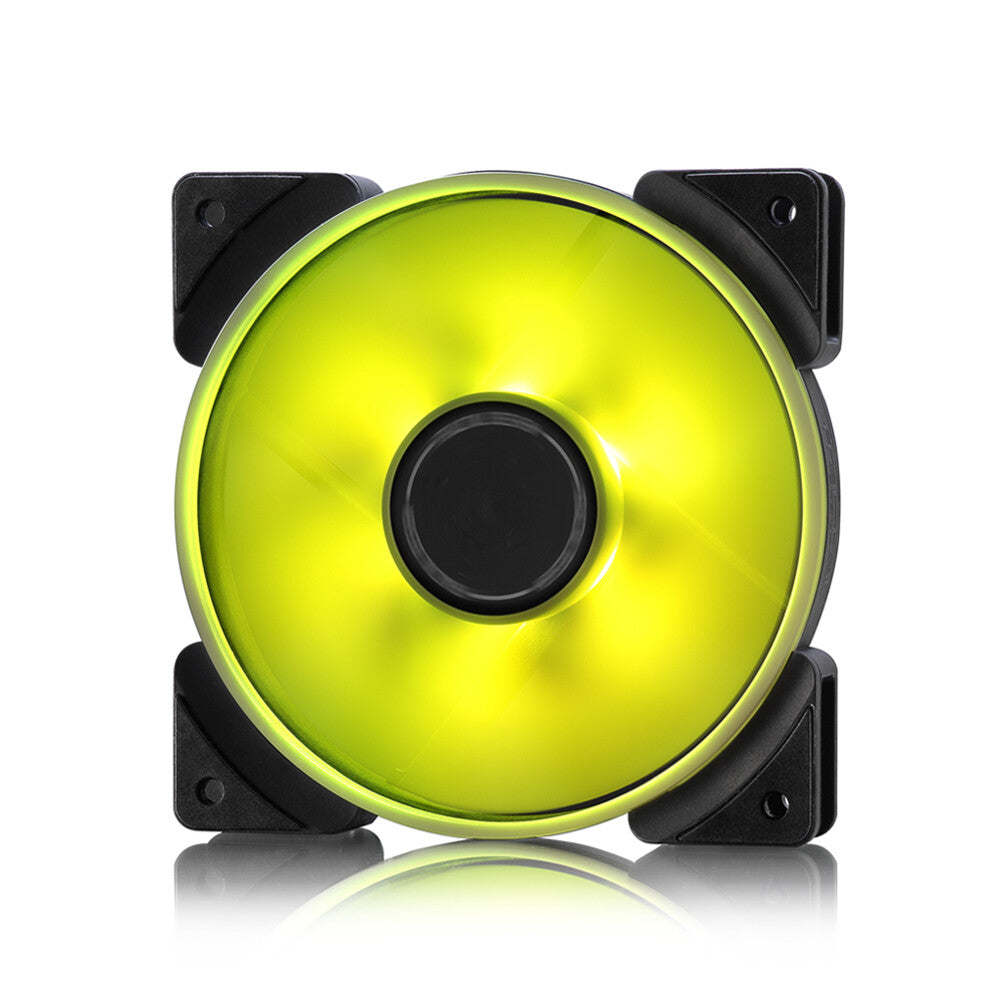

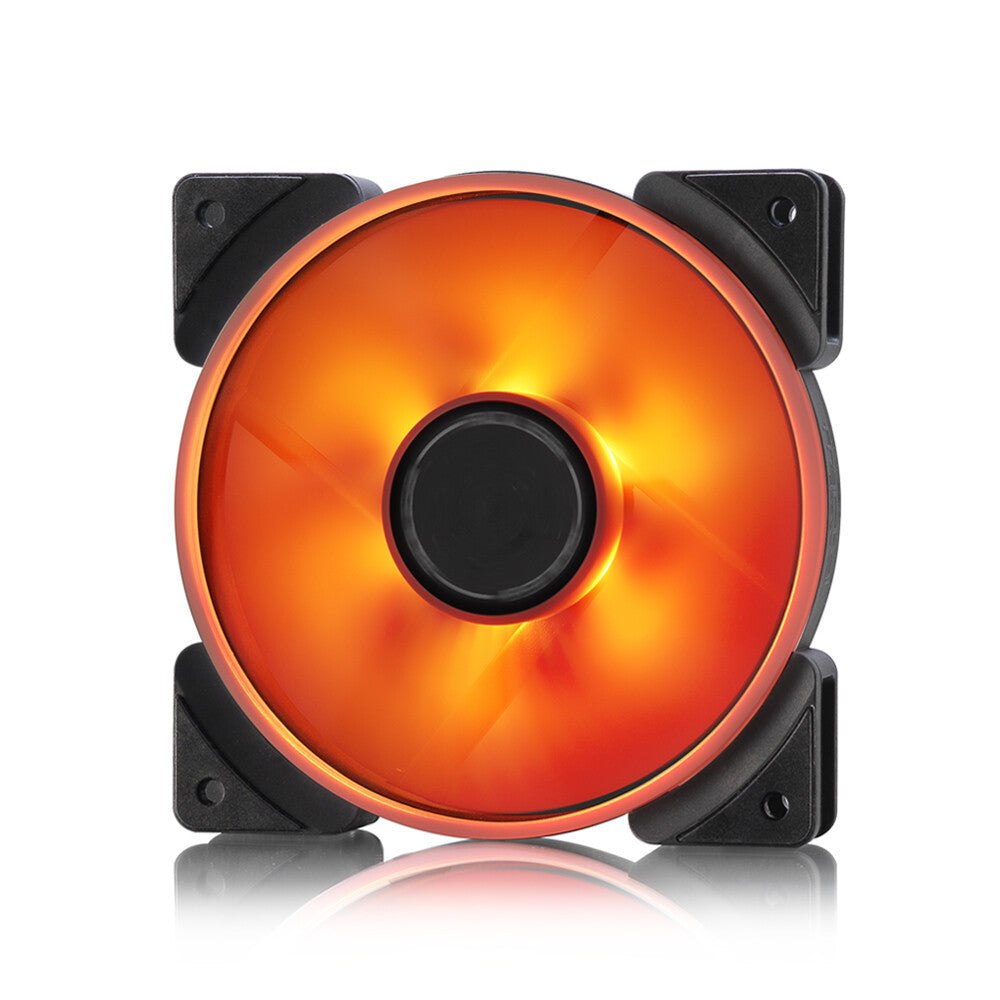

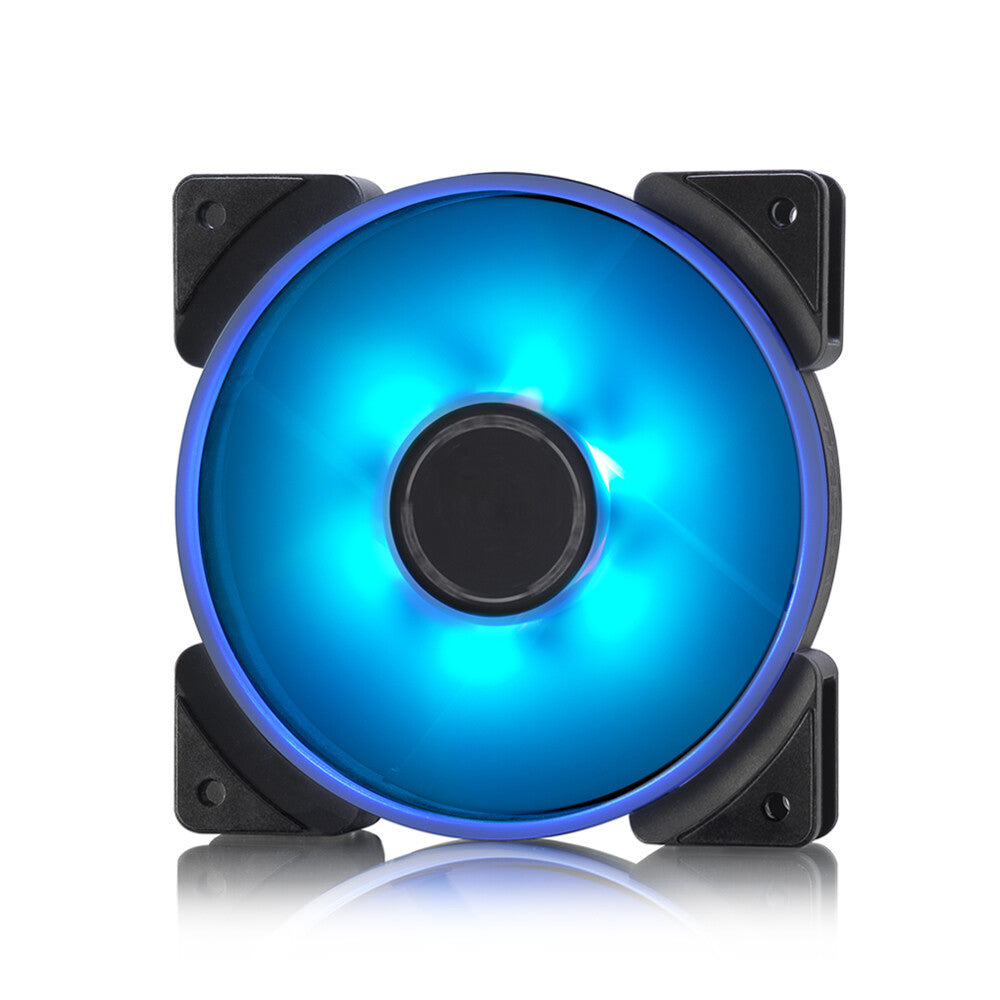

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.78 mmH2O |
| Minimum air pressure | 0.36 mmH2O |
| Airflow | 145.62 m³/h |
| Maximum airflow | 85.71 cfm |
| Minimum airflow (imperial) | 20.68 cfm |
| Noise level (high speed) | 32.7 dB |
| Noise level (low speed) | 14.8 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Product colour | Black, White |
| Power | |
|---|---|
| Rated current | 0.18 A |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Package weight | 592 g |
| Package height | 30 mm |
| Package depth | 122 mm |
| Package width | 182 mm |
| Cable length | 0.5 m |
| Weight | 169 g |
| Height | 120 mm |
| Depth | 25 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| LED voltage | 5 V |
