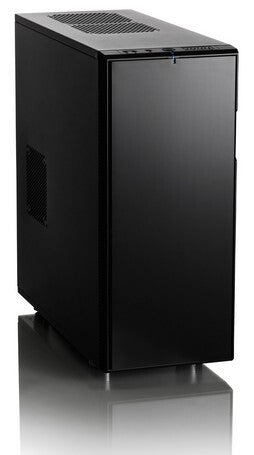

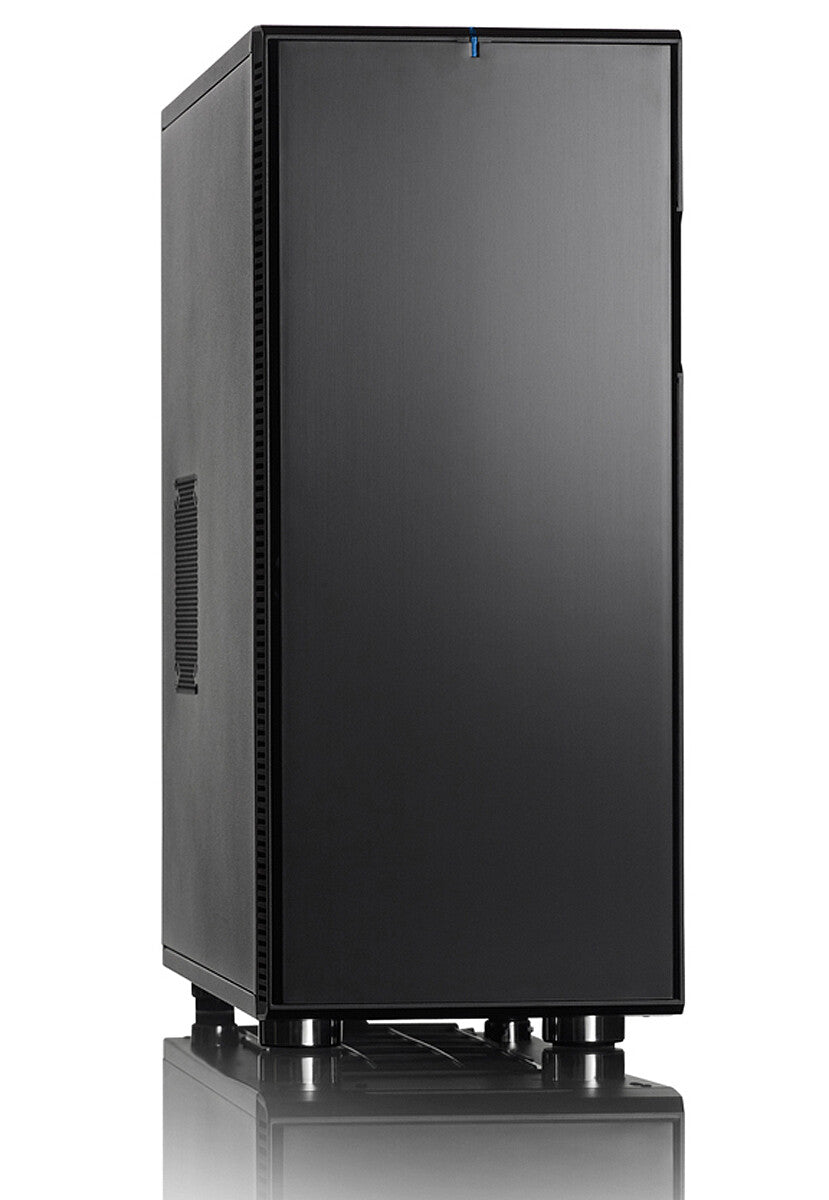

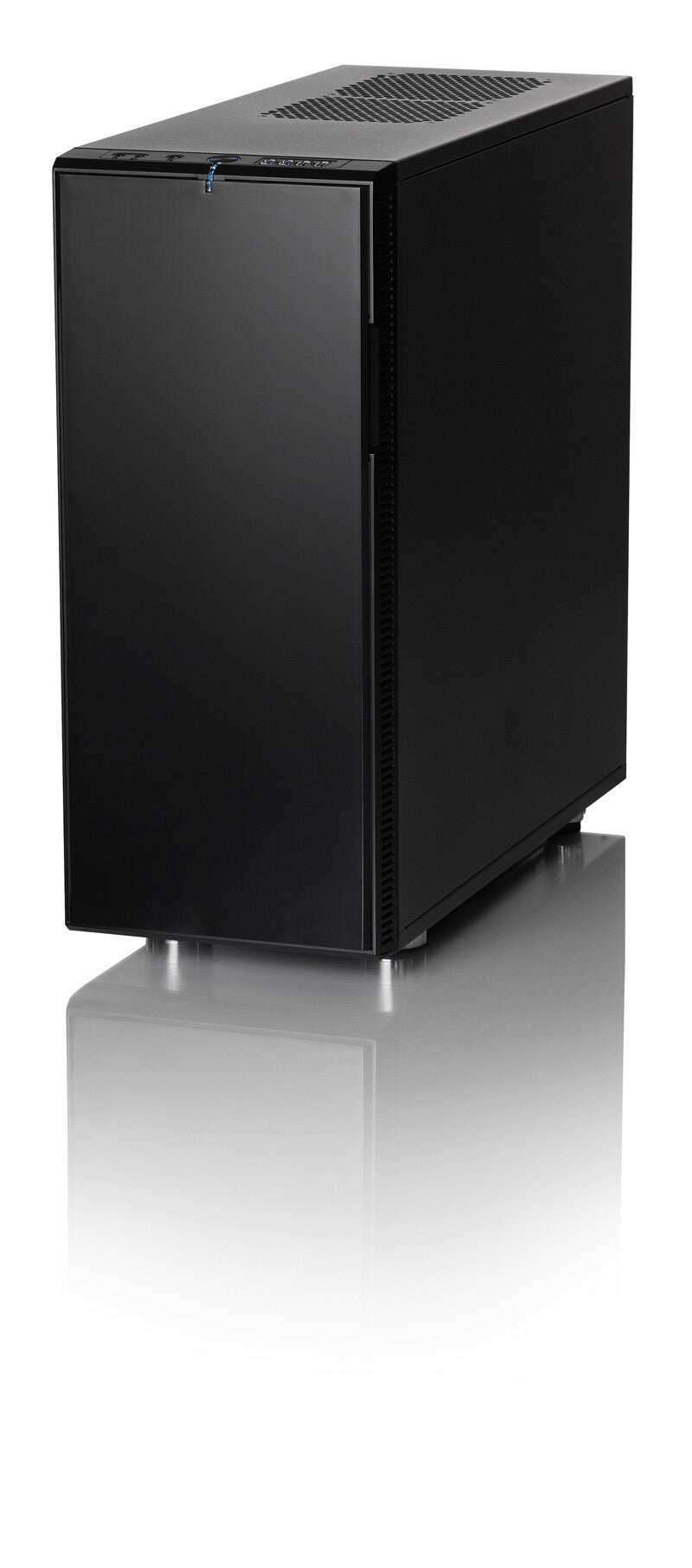

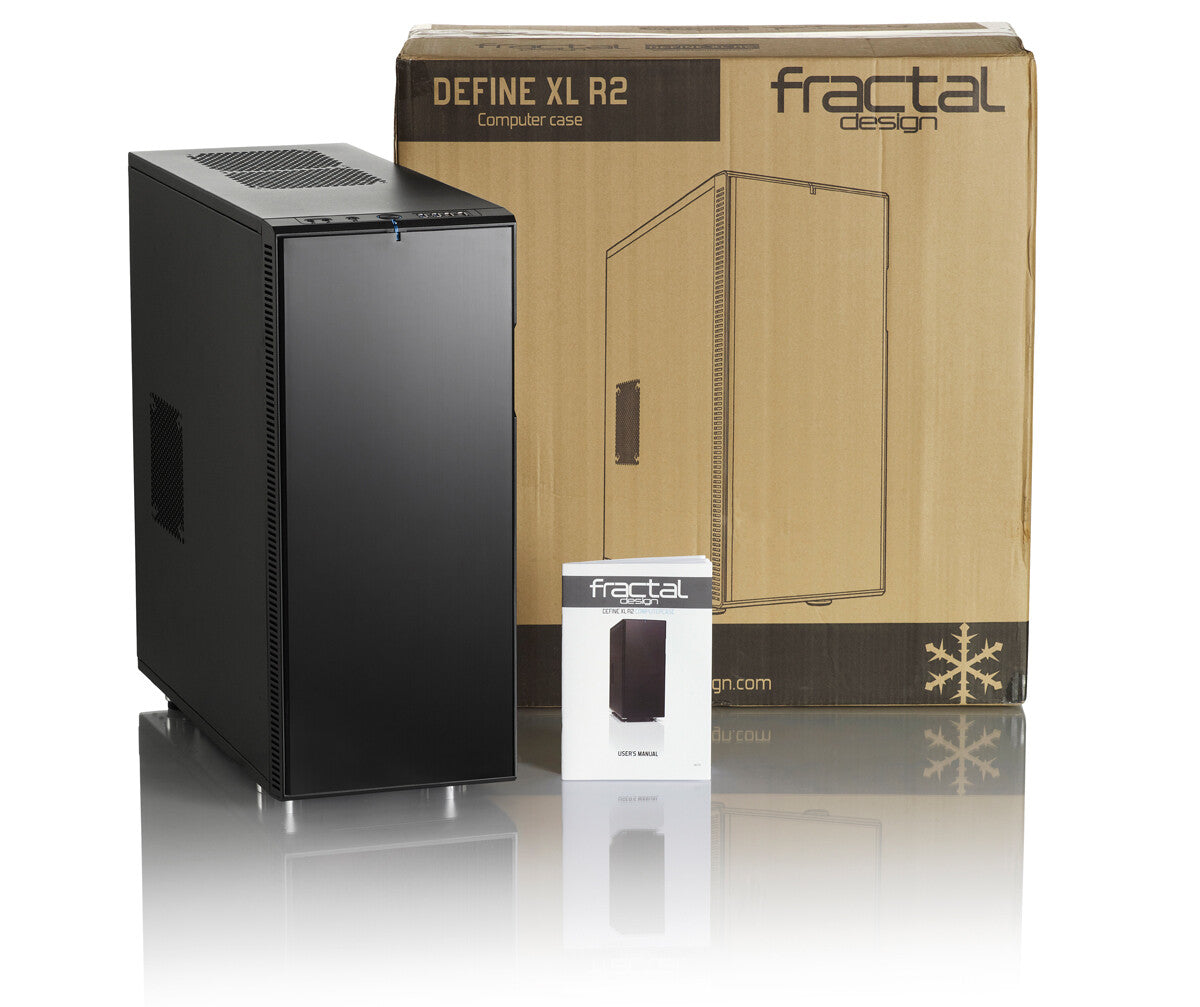

Fractal Design Define XL R2 Tower Black
KEY FEATURES
- High density noise-reducing material for an optimal silent case
- Patented ModuVent design allowing the user to choose between optimal silence or maximum airflow
- With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems

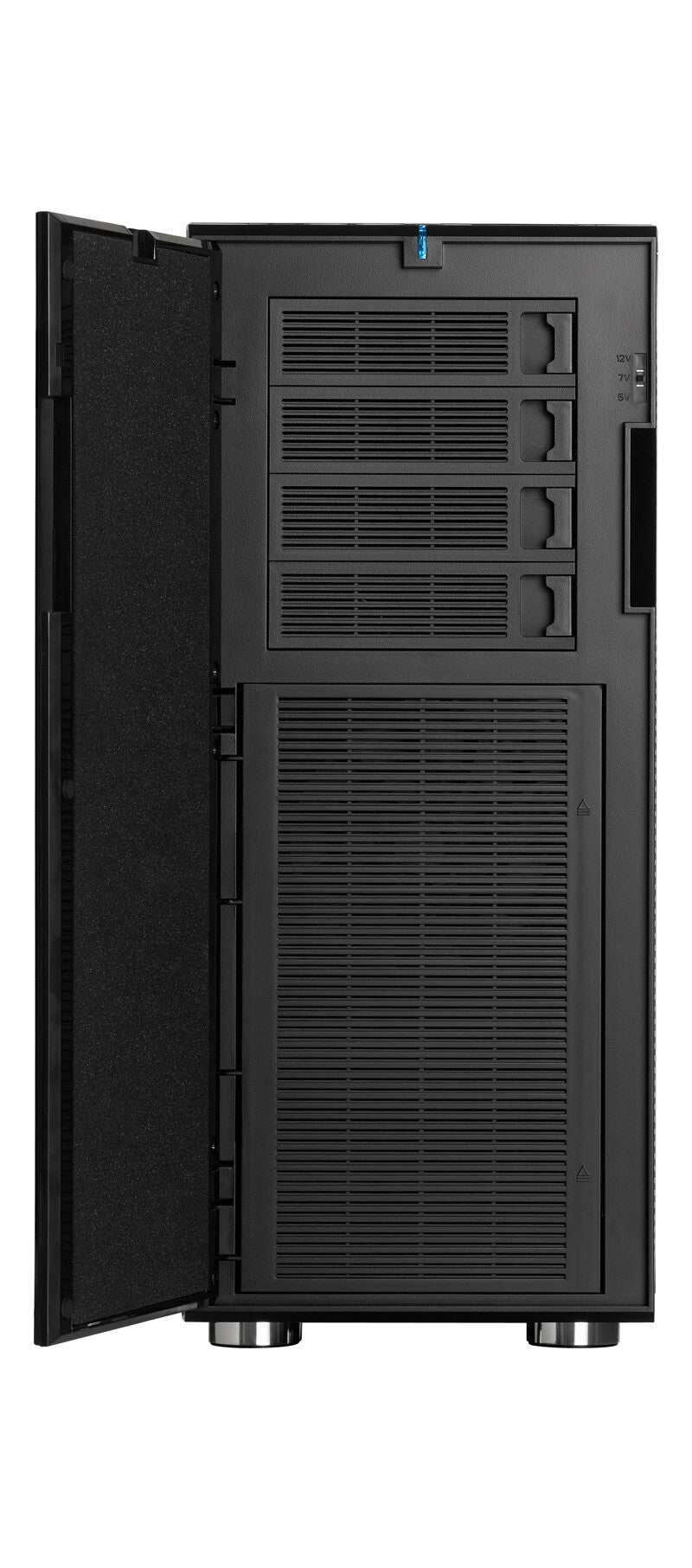

- Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount
- The case can fit water cooling equipment in the front, top, rear and bottom without major modifications

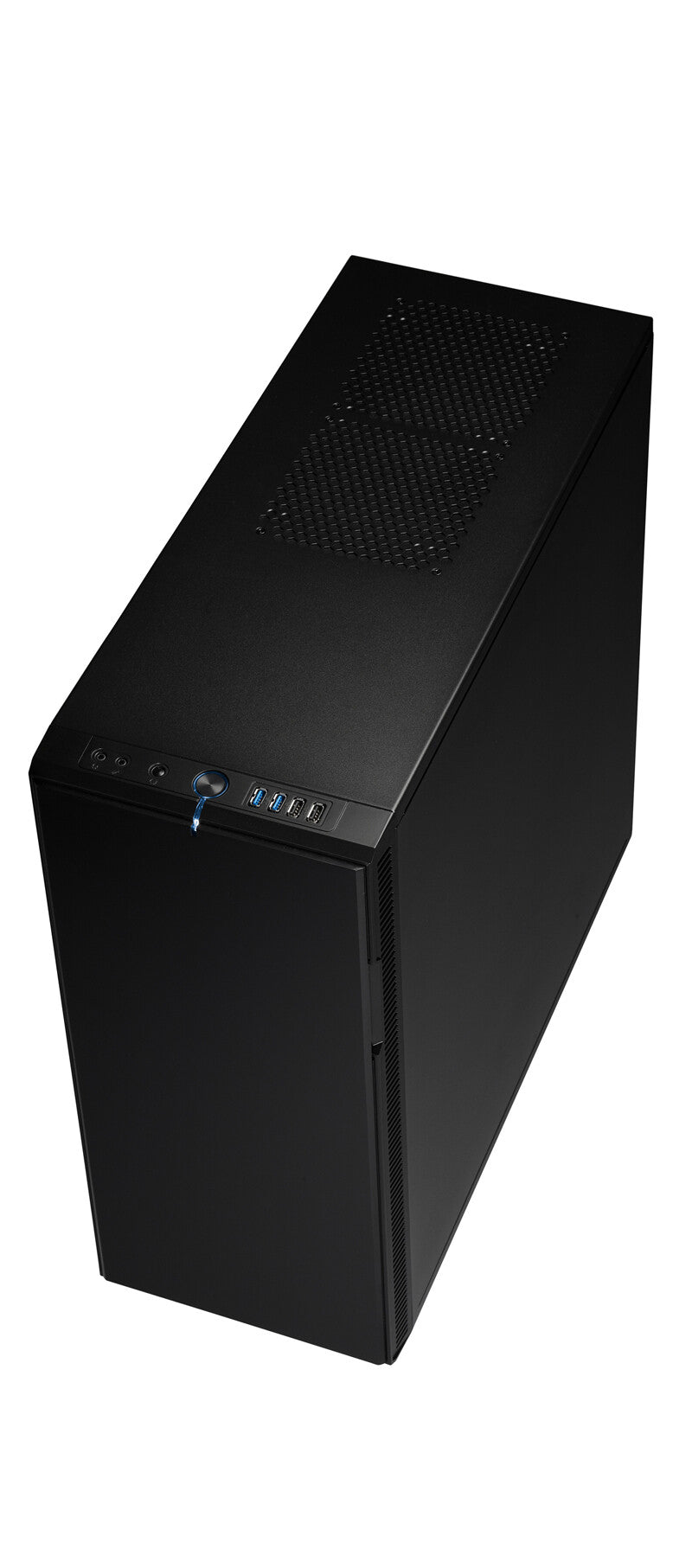

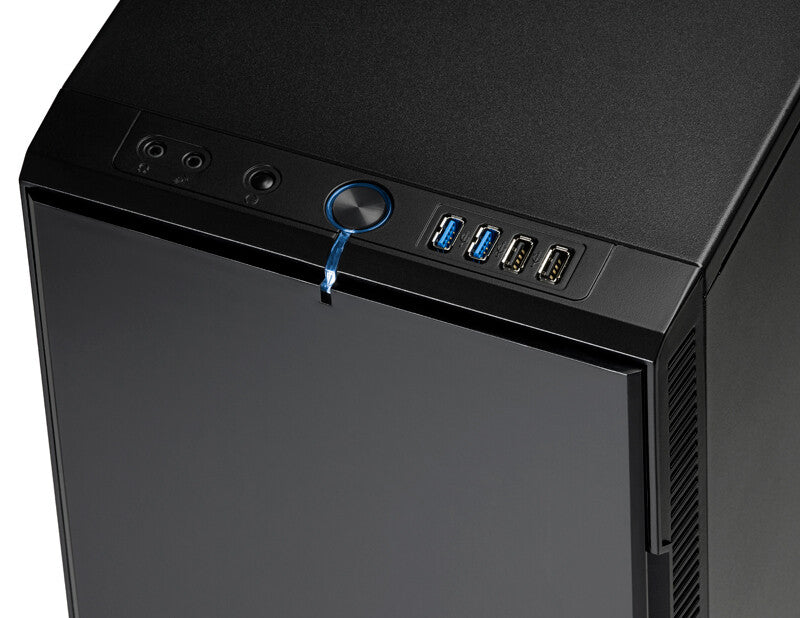

- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
- Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases

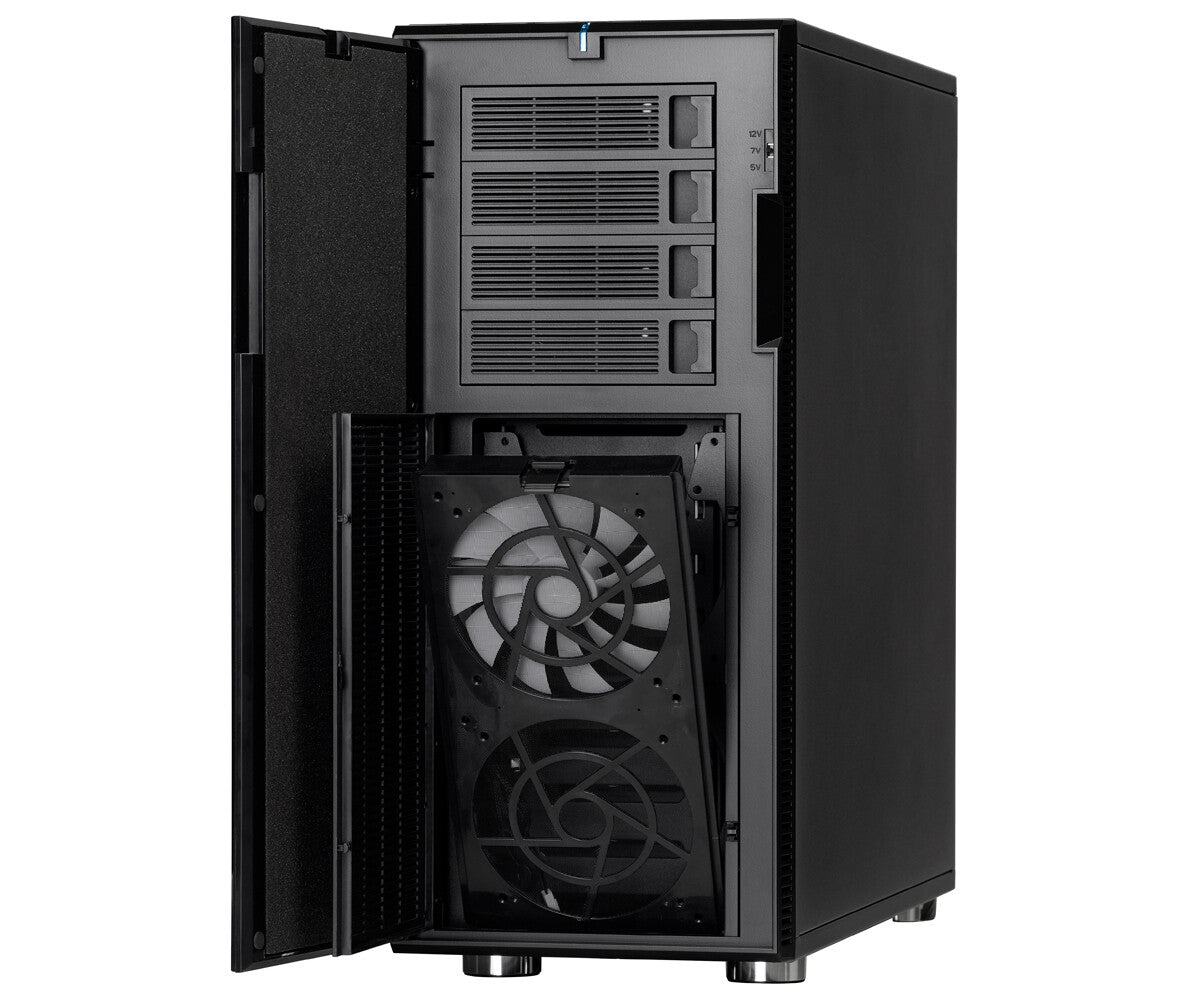

- New tool-less front fan holder makes switching front fans a breeze
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Fractal Design Define XL R2 Tower Black
Description
Fractal Design Define XL R2. Form factor: Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 232 mm, Depth: 560 mm, Height: 559 mm
Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

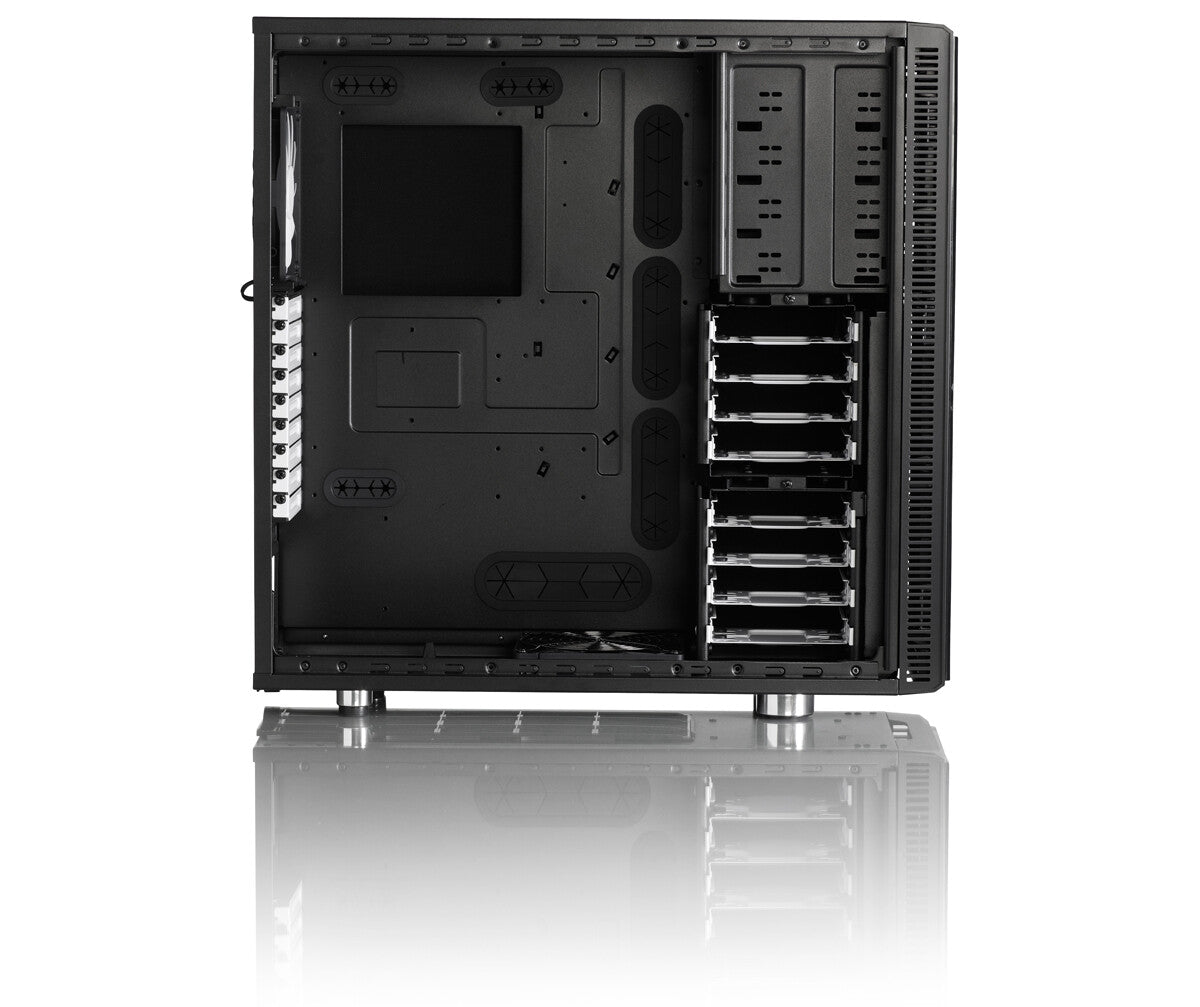

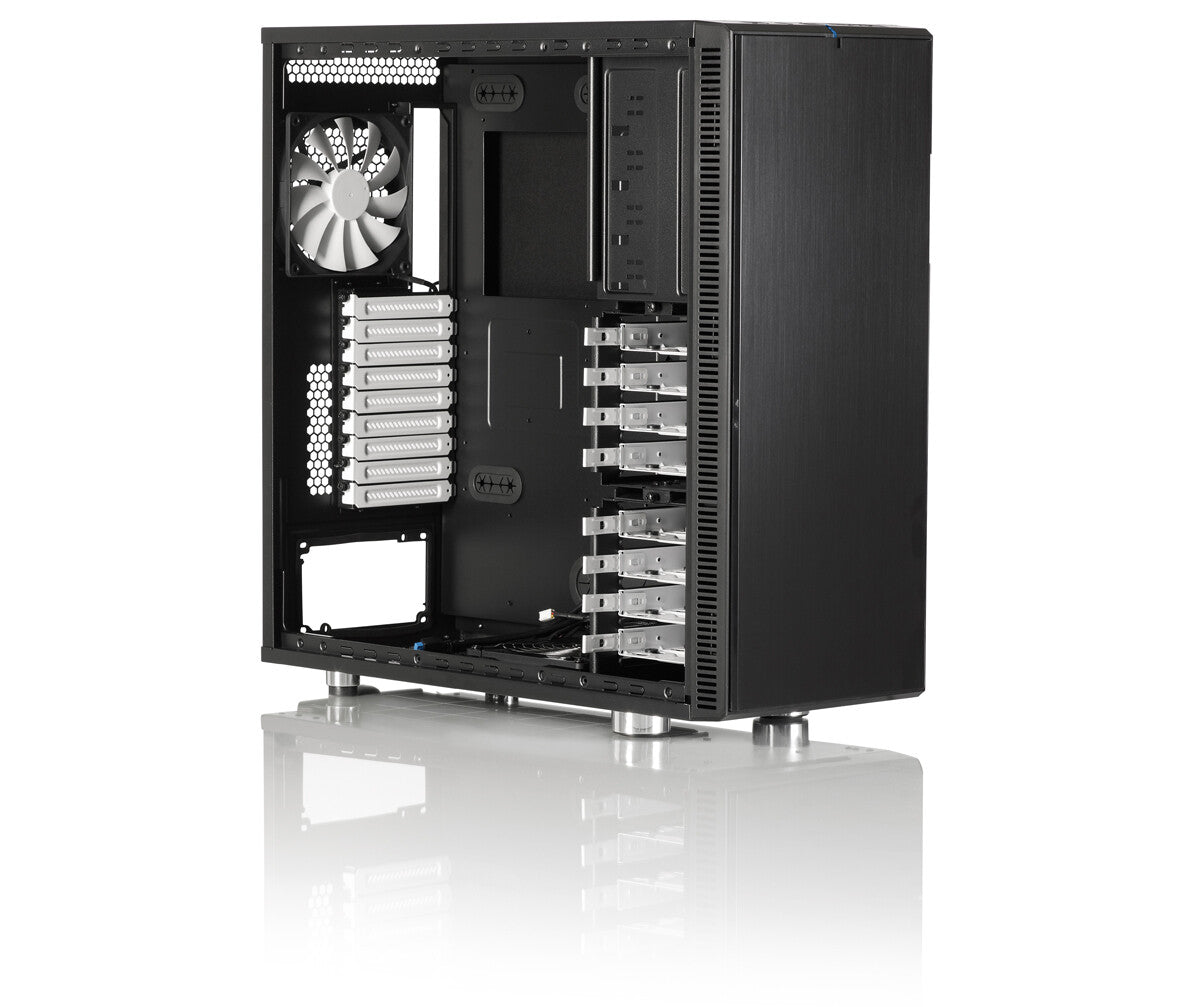

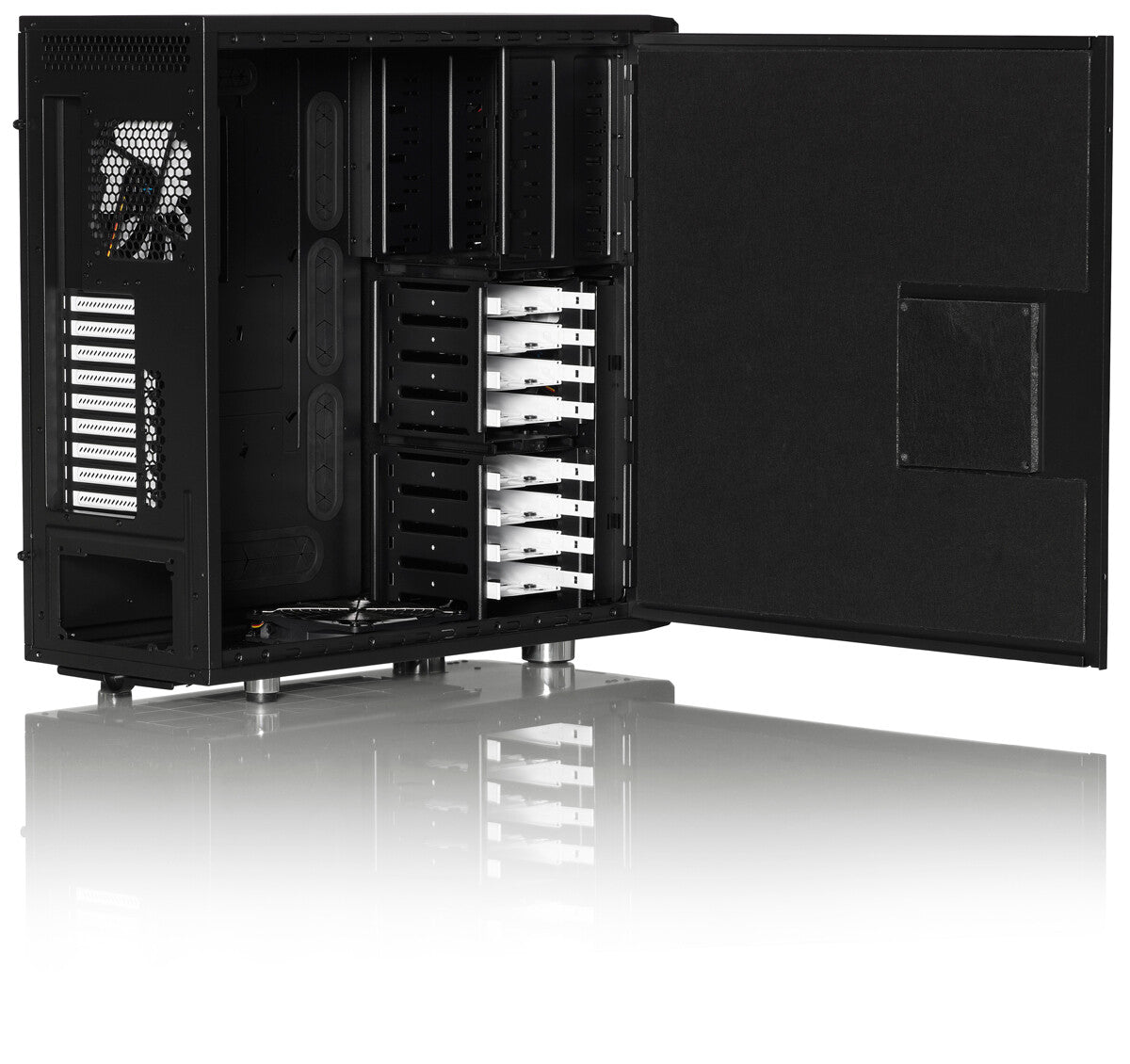

The Define XL R2, which includes Fractal Design’s innovative ModuVent™ feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.
Warranty: 2 years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Design | |
|---|---|
| Maximum PSU length | 19 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 17 cm |
| LED indicators | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Built-in speaker(s) | No |
| Suitable for | Home/Office |
| Side window | No |

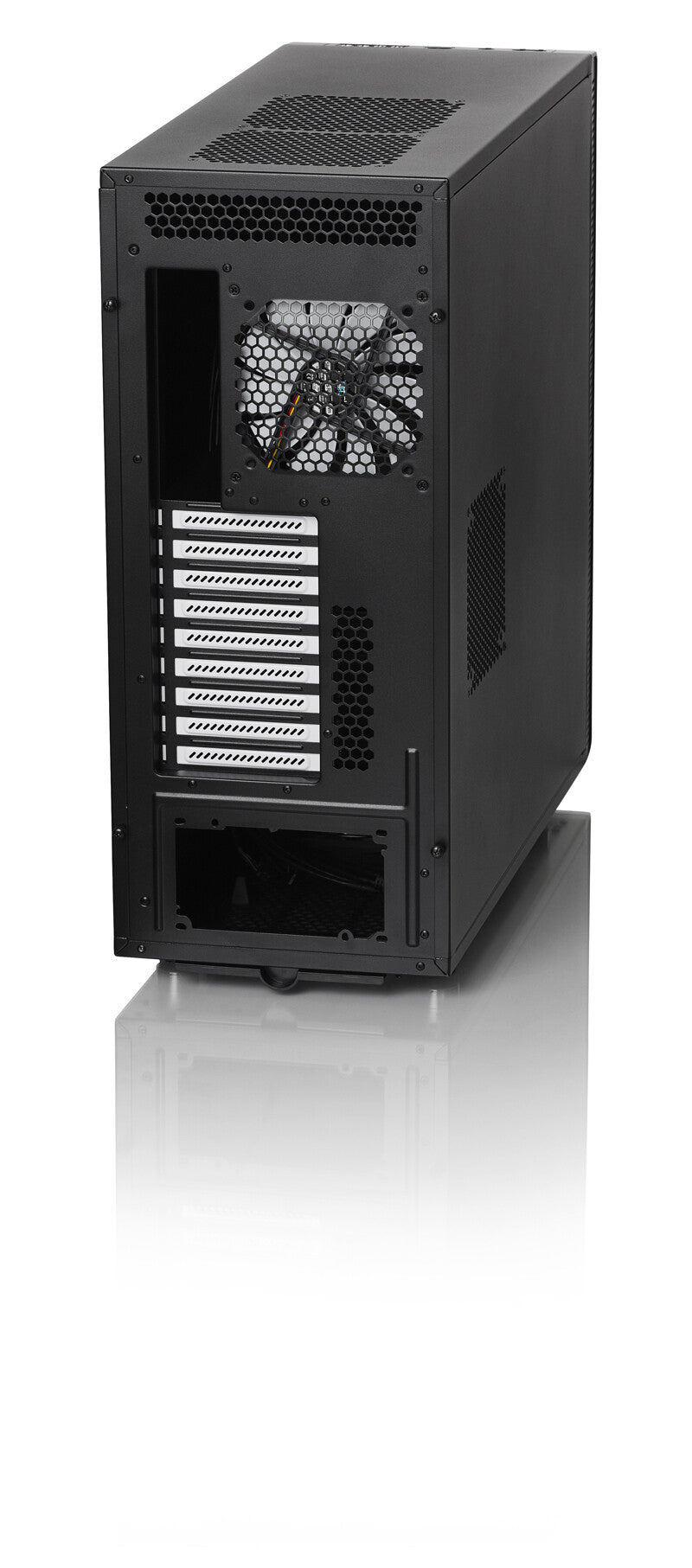

| Number of expansion slots | 9 |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 4 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, XL-ATX |
| Product colour | Black |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator fan sizes supported | 240,280 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Front radiator fan sizes supported | 240 mm |
| Liquid cooling capability | Yes |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans installed | 1x 140 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Side fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 1x 140 mm |
| Storage | |
|---|---|
| Card reader integrated | No |
| Hot-swap | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 16.5 kg |
| Height | 559 mm |
| Depth | 560 mm |
| Width | 232 mm |
| Packaging data | |
|---|---|
| Package weight | 18.5 kg |
| Package height | 637 mm |
| Package depth | 655 mm |
| Package width | 322 mm |
| Other features | |
|---|---|
| Manual | Yes |
| Harmonized System (HS) code | 84733080 |
| Package dimensions (WxDxH) | 322 x 655 x 637 mm |
