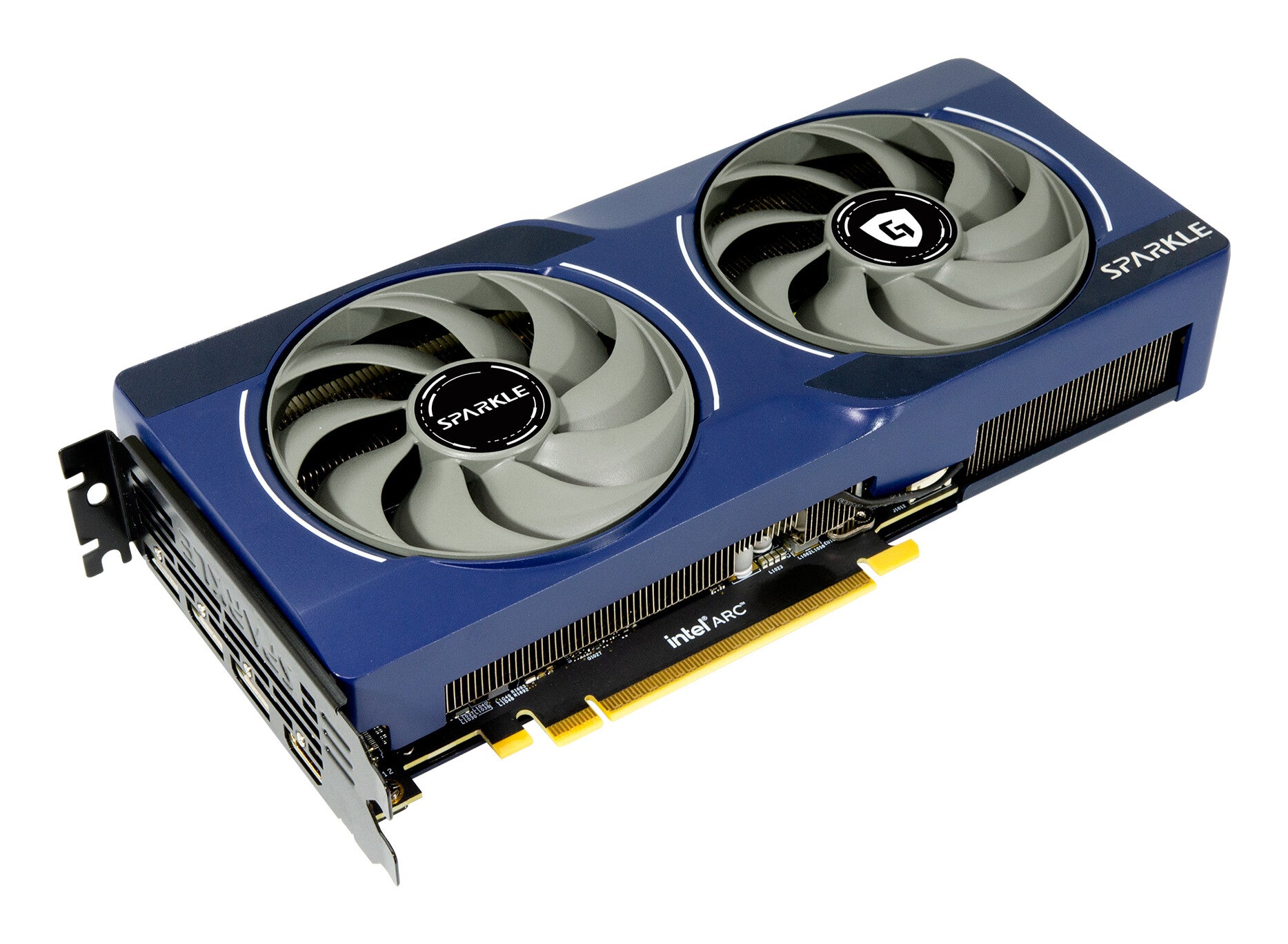

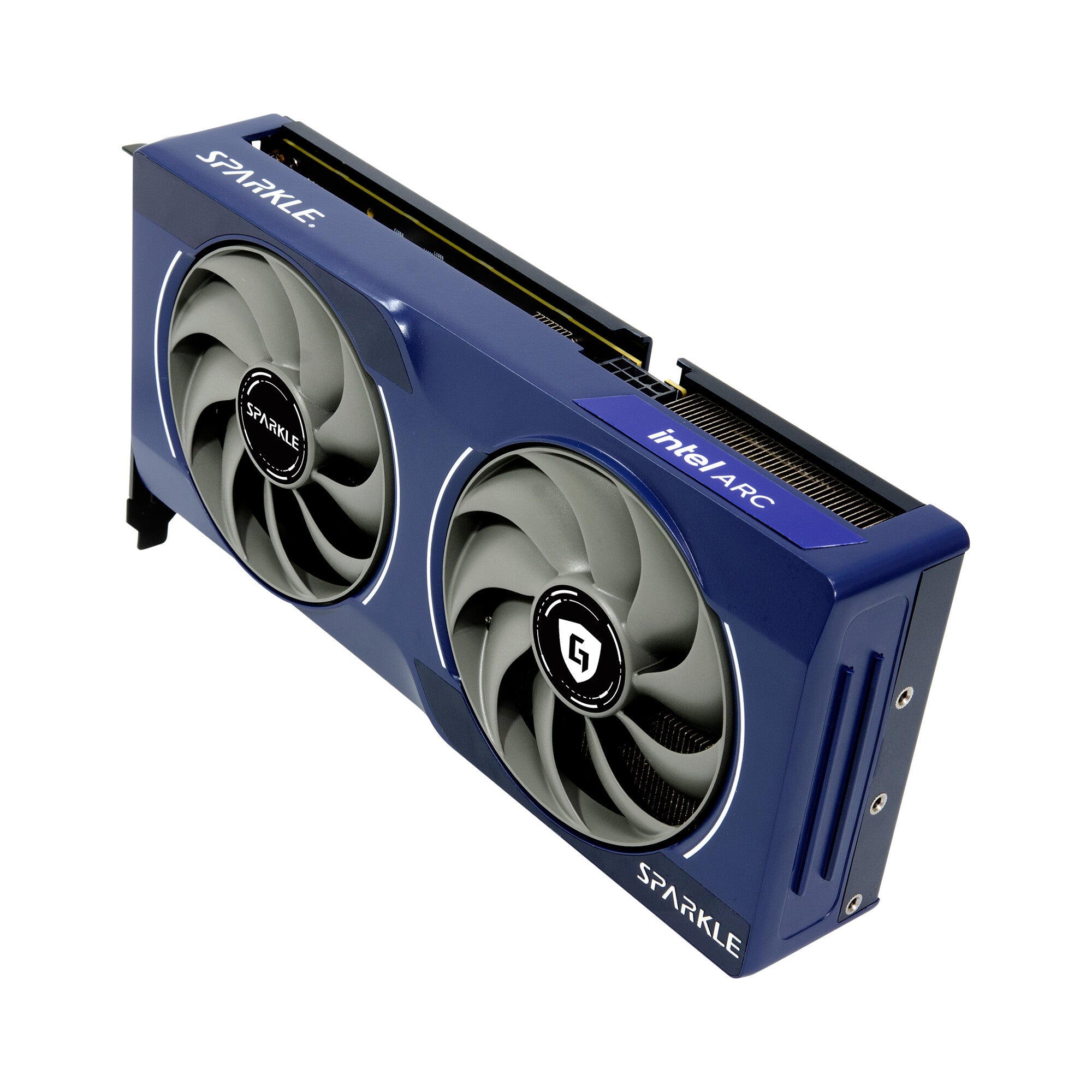

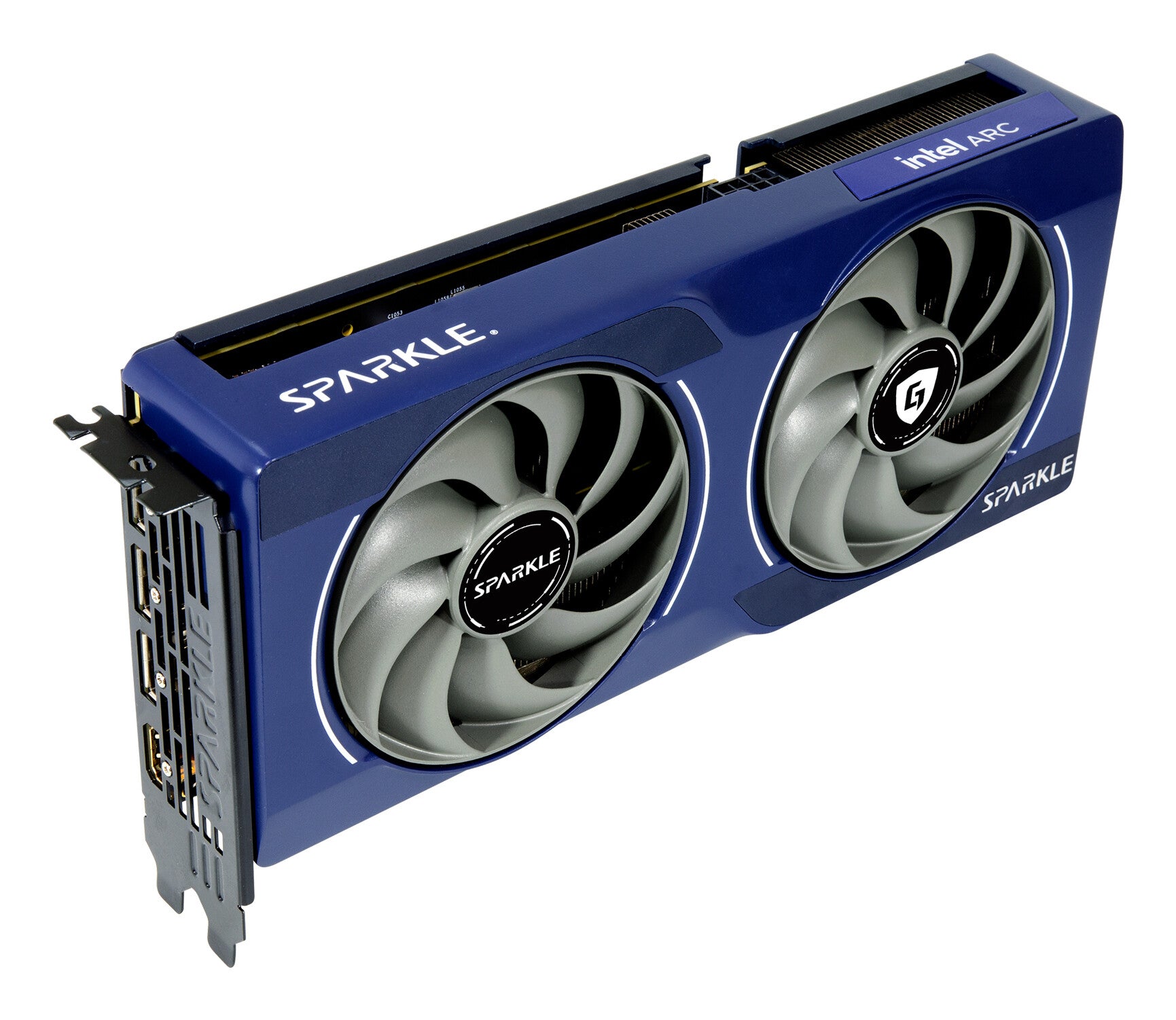

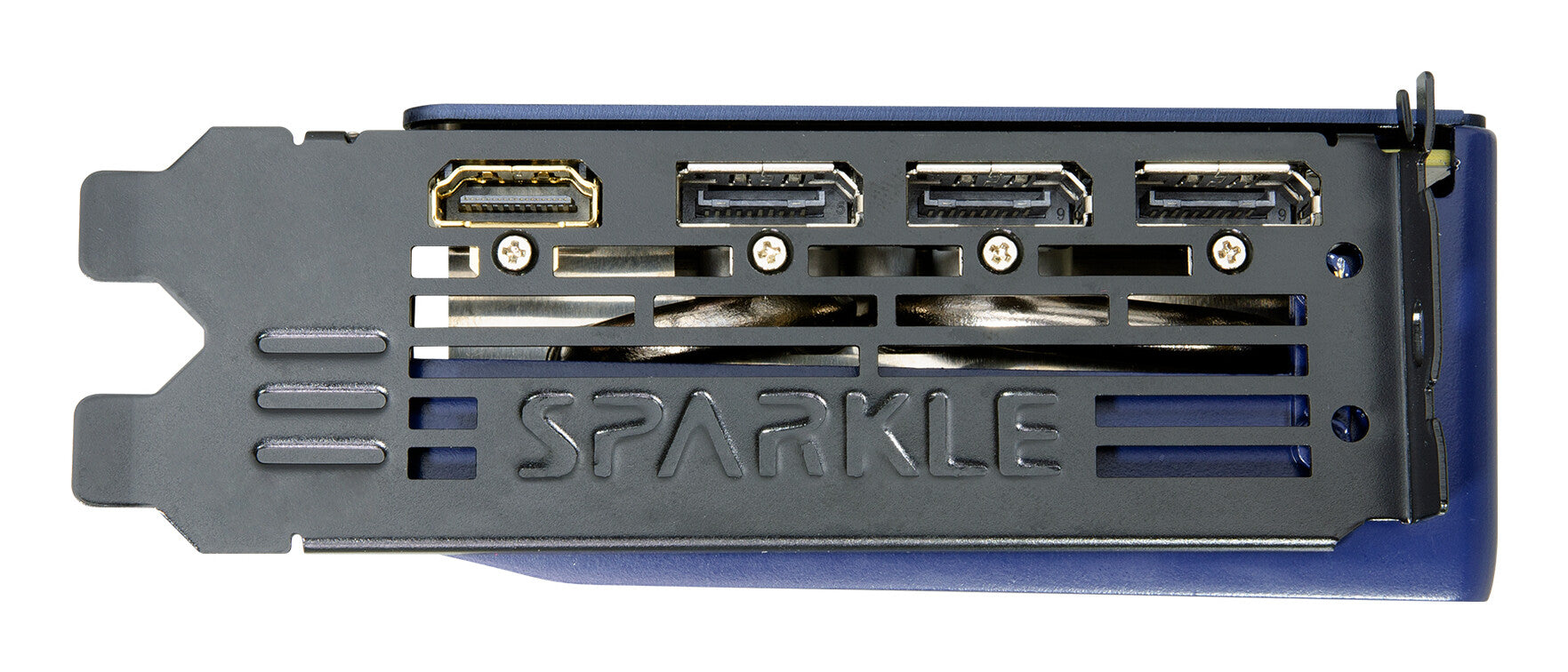

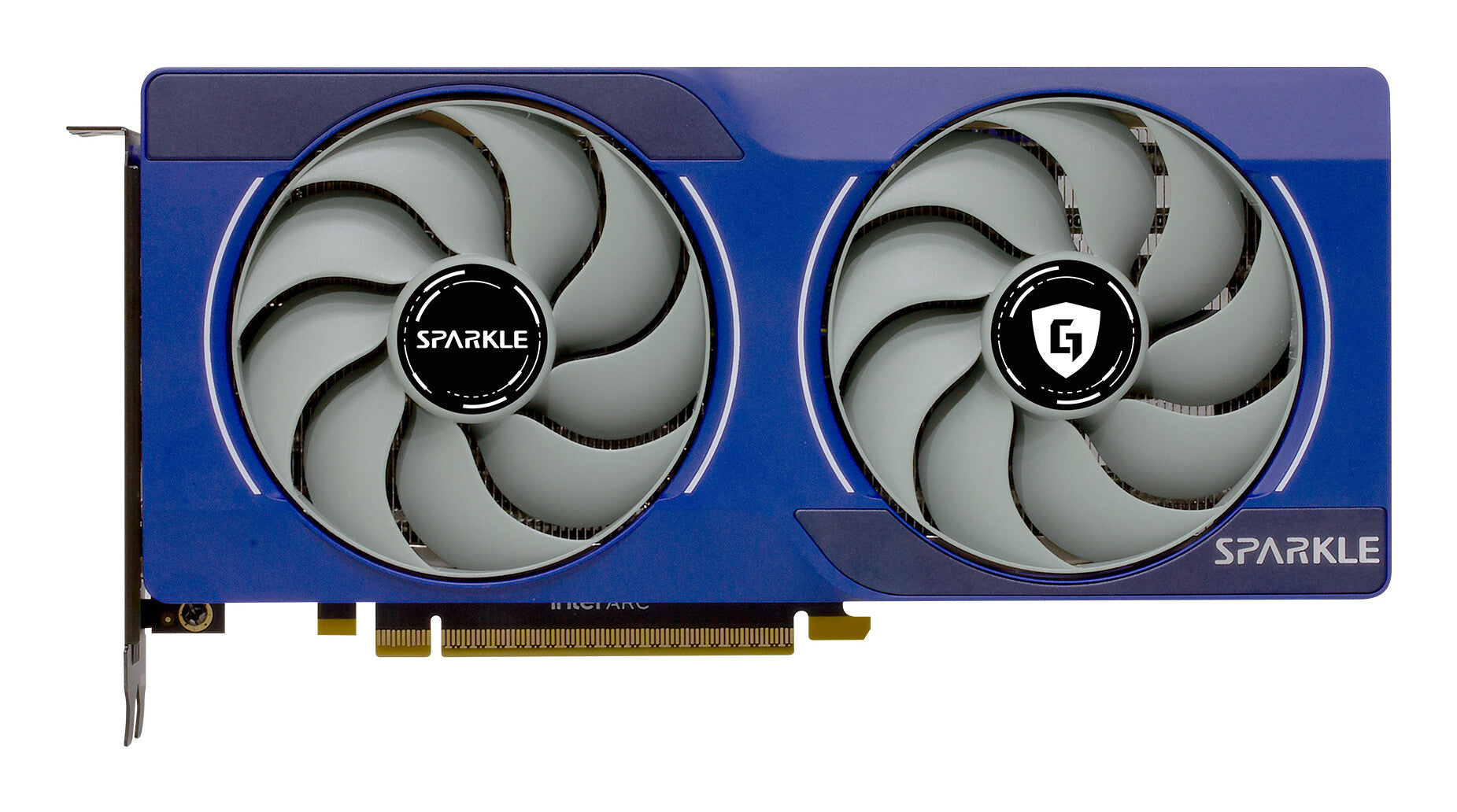

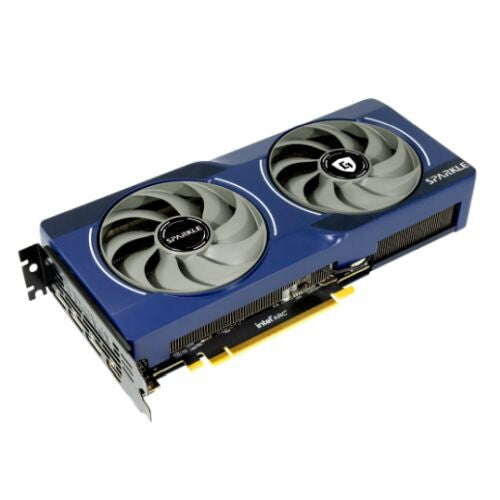

Sparkle Technology Arc B570 10 GB GDDR6 Graphics Card | PCIe 4.0 x8 | 3 ? DP and 1 ? HDMI | Active Cooling
KEY FEATURES
- TORN Cooling 2.0

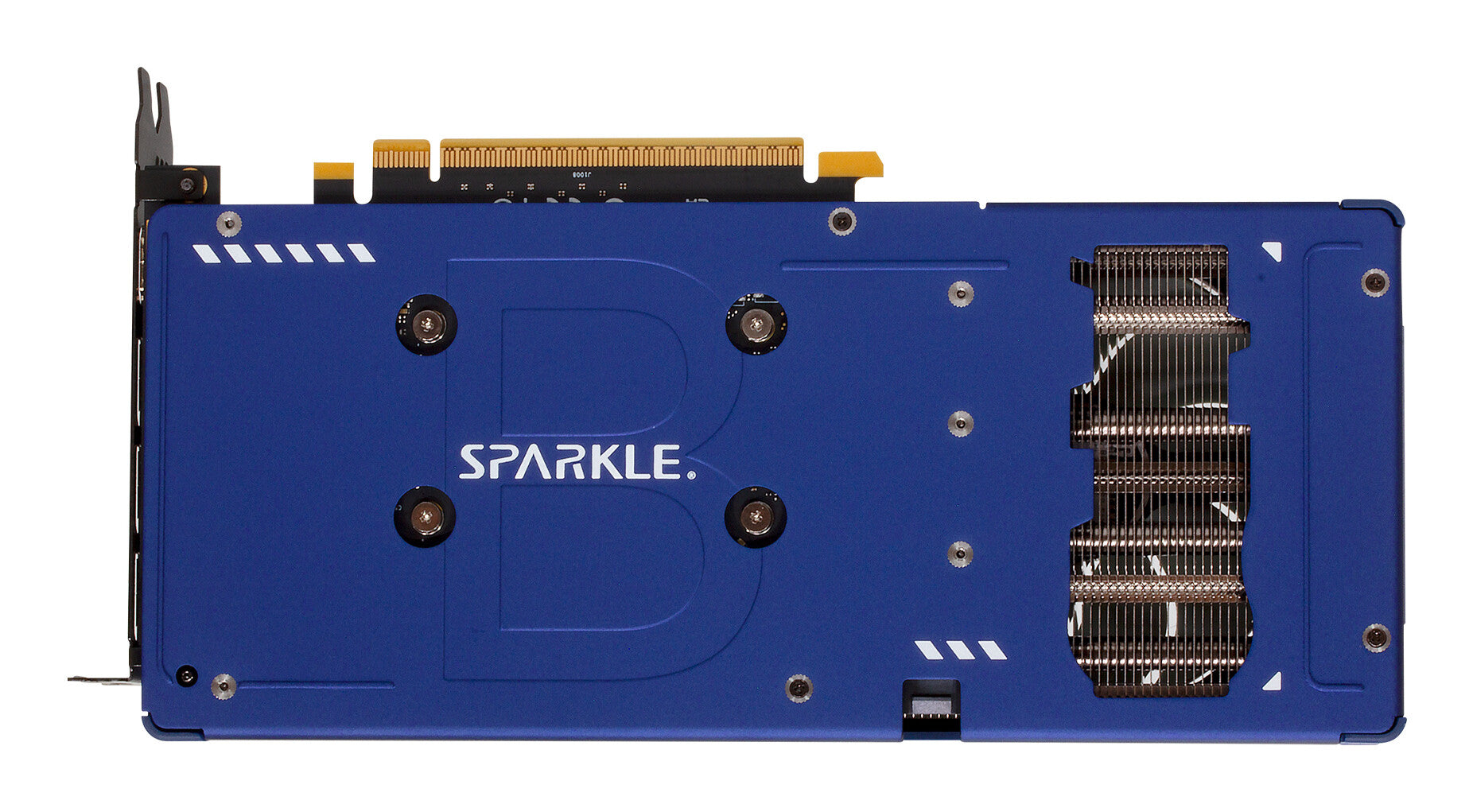

- Dual-fan, 2.2-slot, metal backplate
- Comapct Design
- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Sparkle Technology Arc B570 10 GB GDDR6 Graphics Card | PCIe 4.0 x8 | 3 ? DP and 1 ? HDMI | Active Cooling
Description
Sparkle Technology Intel Arc B570 GUARDIAN OC. Graphics processor family: Intel, Graphics processor: Arc B570, Processor frequency: 2500 MHz. Discrete graphics card memory: 10 GB, Graphics card memory type: GDDR6, Memory bus: 160 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s)
The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel
XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Ray accelerators | 18 |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 2660 MHz |
| Processor frequency | 2500 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Arc B570 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 380 GB/s |
| Memory bus | 160 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 10 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NPU performance up to | 203 TOPs |
| Xe-cores | 18 |
| Intel® Xe Matrix Extensions (XMX) | 144 |
| Dual Link DVI | No |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Blue |
| Number of slots | 2.2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | Top |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 170 W |
| Power consumption (typical) | 150 W |
| Minimum system power supply | 600 W |
| System requirements | |
|---|---|
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum RAM | 8000 MB |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 44 mm |
| Height | 105 mm |
| Length | 242 mm |
| Weight | 796 g |
| Packaging data | |
|---|---|

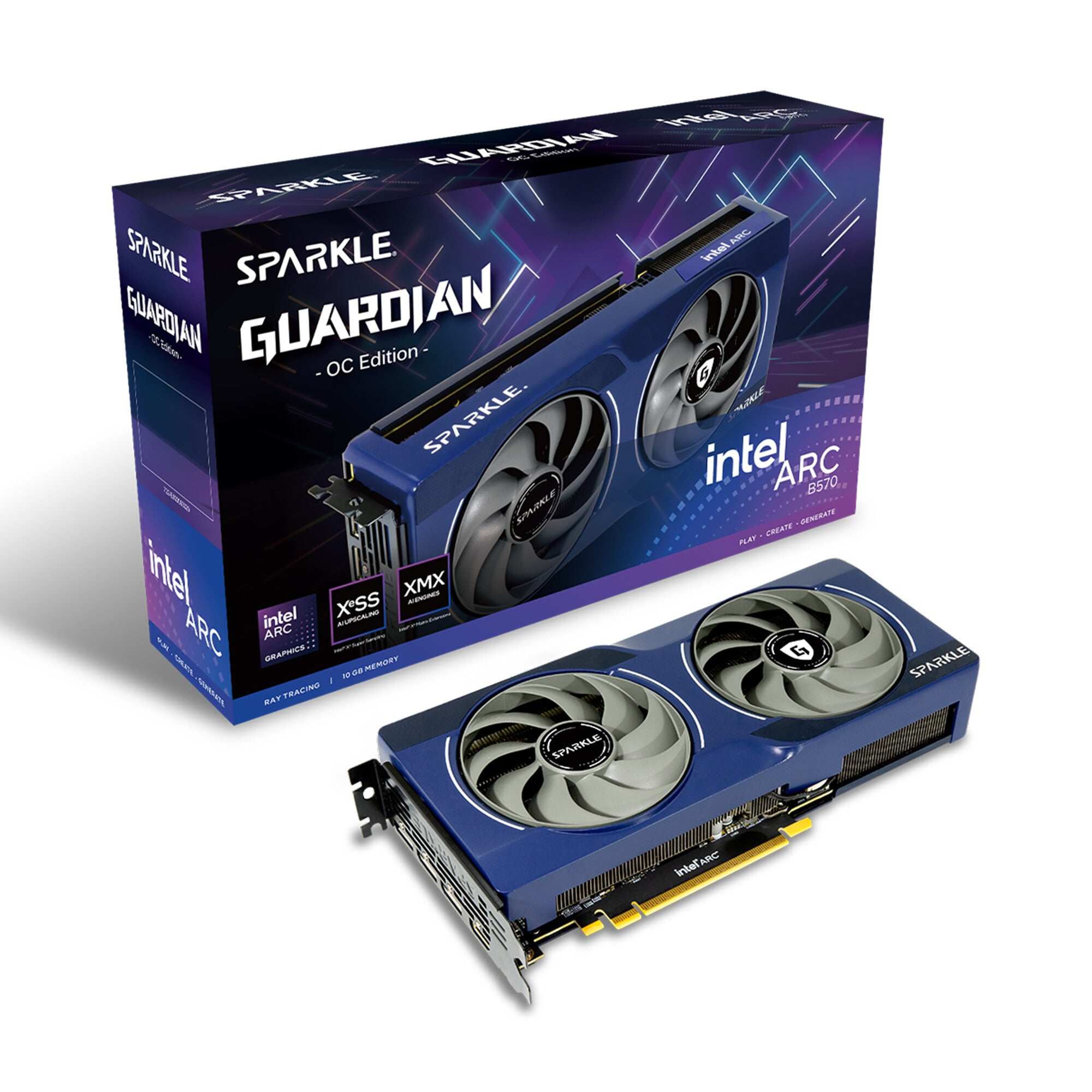

| Package type | Box |
